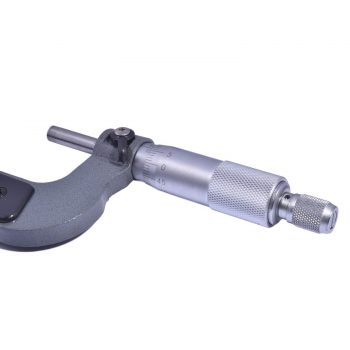

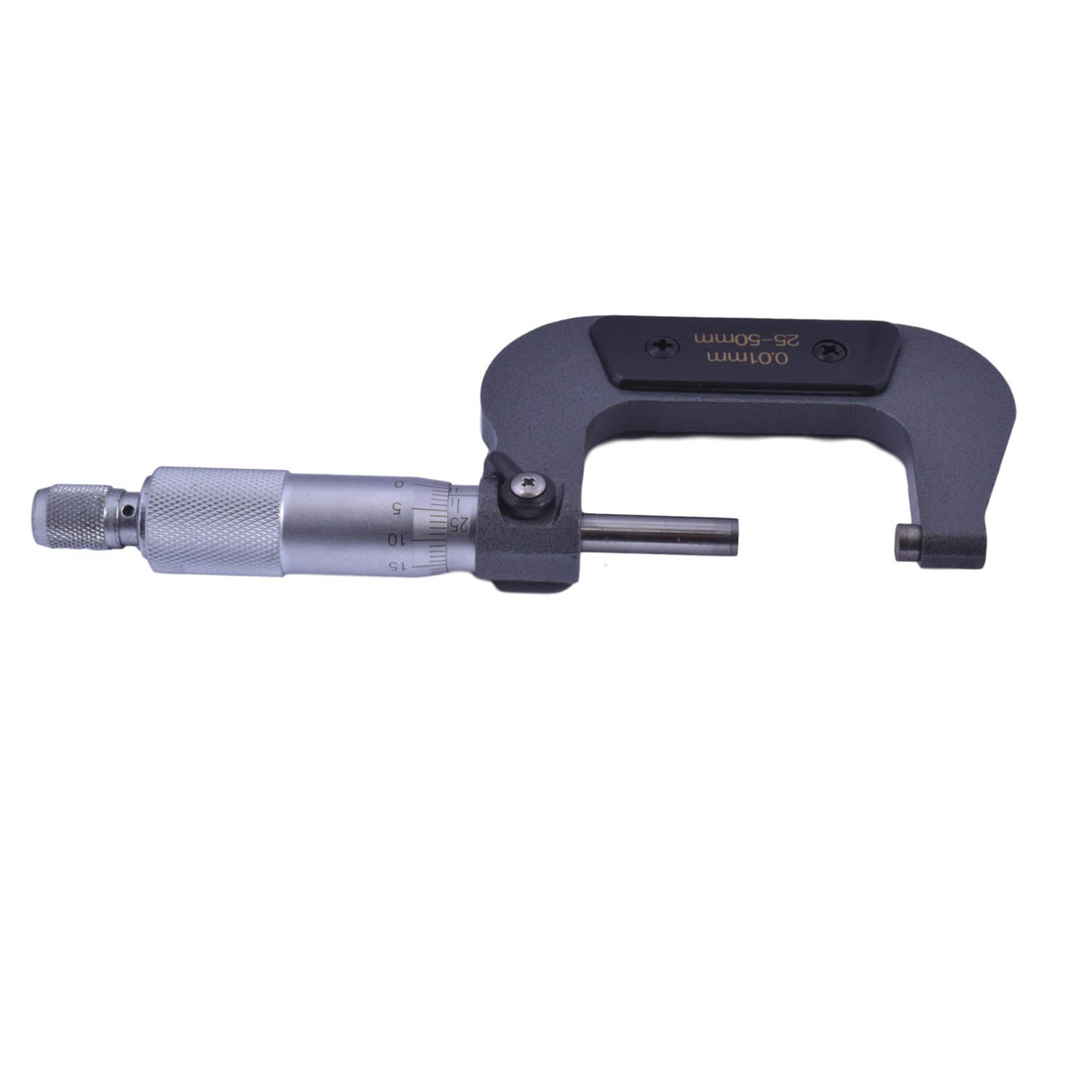

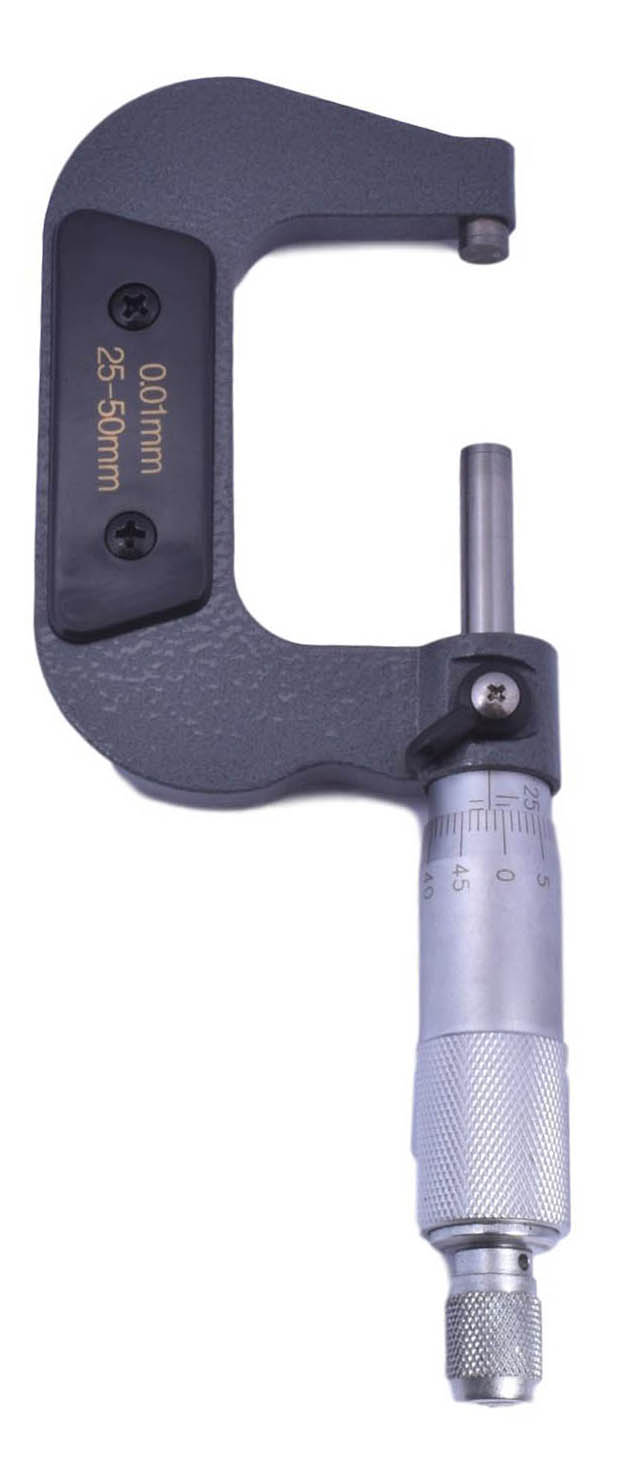

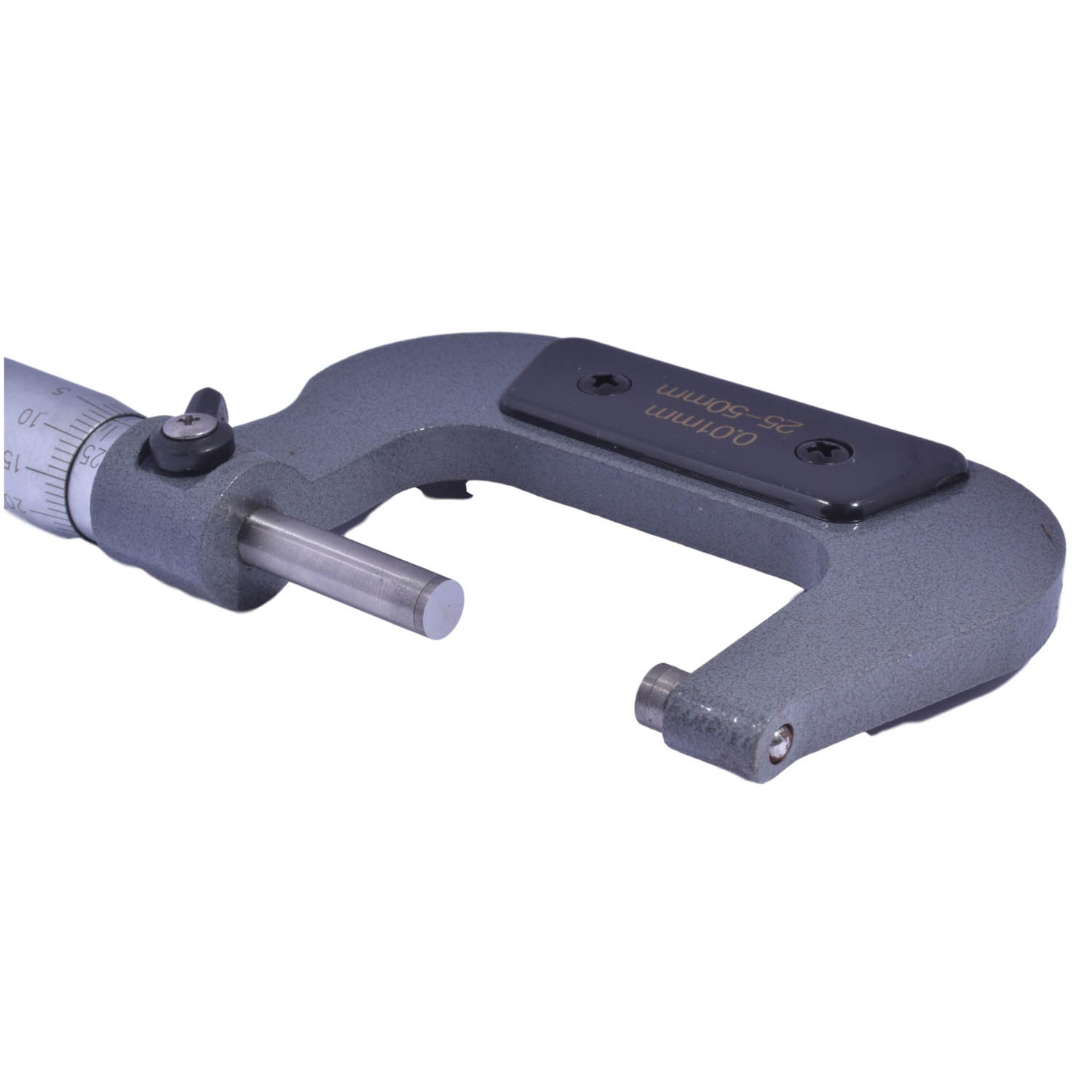

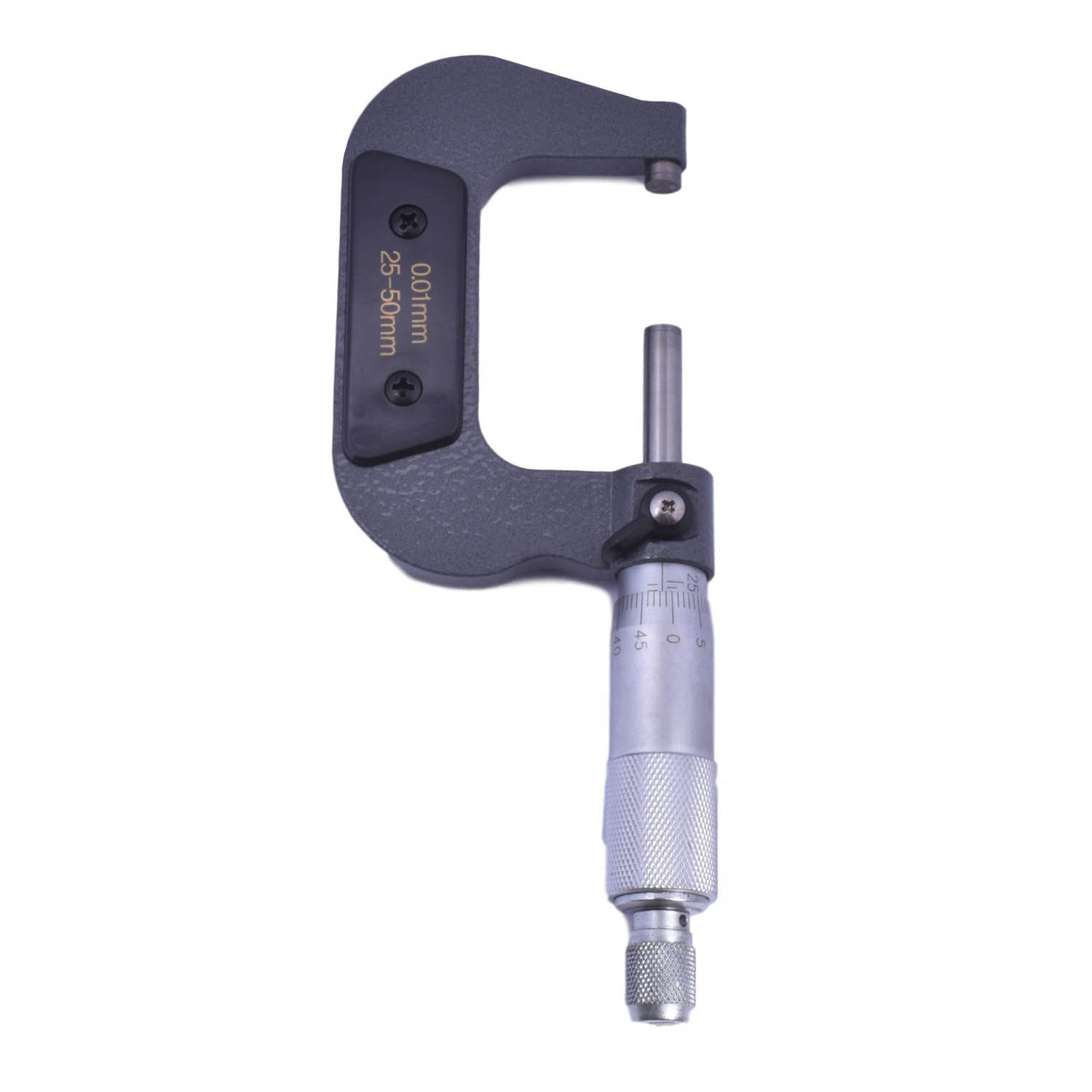

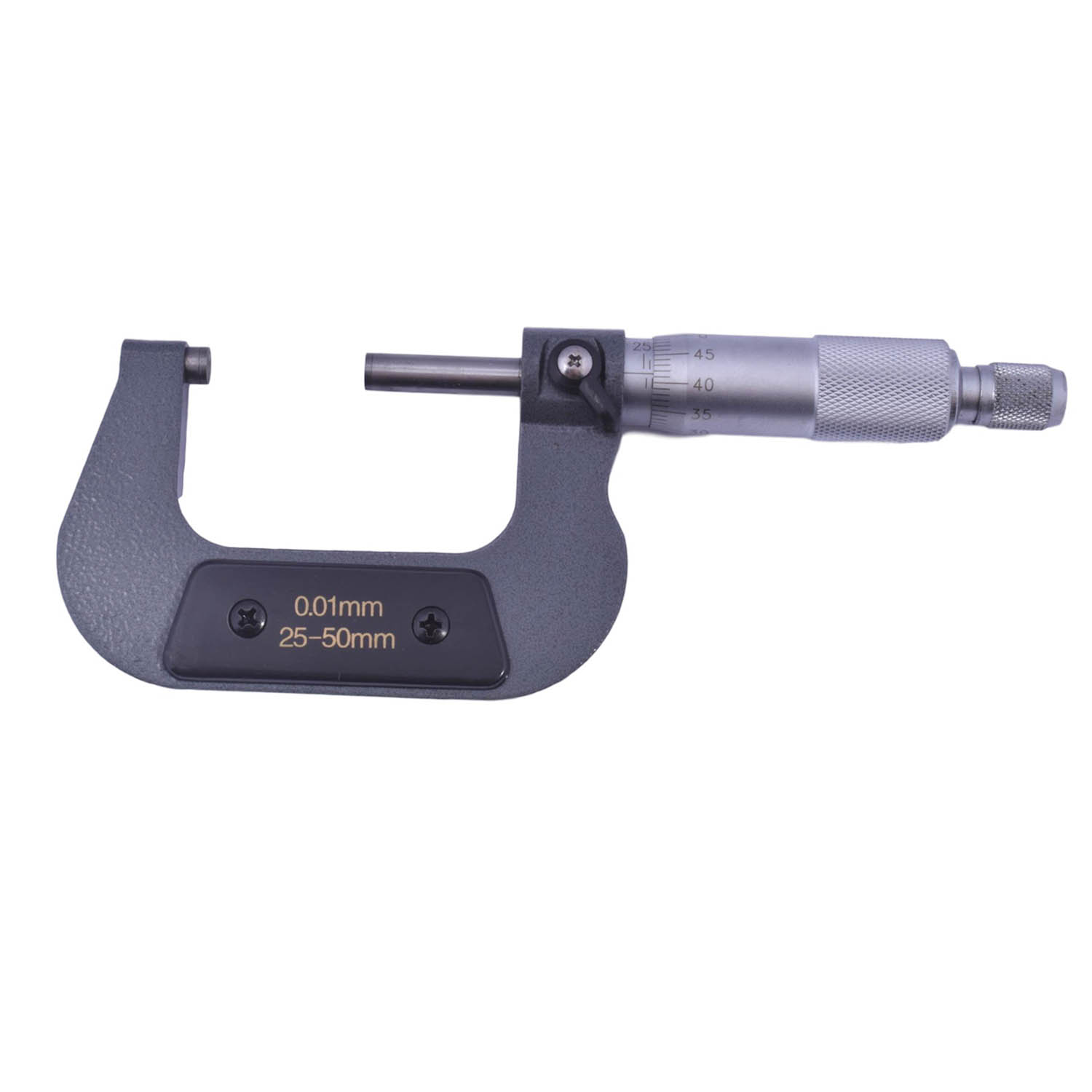

0-25MM OUTSIDE MICROMETER

In Stock

SKU: 2550OUTMICROMETERM

$26.99

50MM OUTSIDE MICROMETER

Include 1pcs fitted case bar

Plastic box packed

Qty
Compare

0-25MM OUTSIDE MICROMETER

MICROMETER TUBE MICROMETER GAGE MATERIAL SOLID FRAME
MEASURE RANGE 25-50mm MAXIMUM MEASURE 50mm
GRADUATION 0.01mm MINIMUM MEASURE 25mm
BRAND iCarbide USA THIMBLE RACHET



    0-25MM OUTSIDE MICROMETER



    Standard micrometer frame solid metal

    Contact tipped material used carbide HRC90

    Screw stop setter easy for use

    Micrometer head thread by CNC grinding

    The ratchet set the device to ensure accurate repeatability

    Factory approved ISO9001 and 5S quality control system

Reach Mitutoyo micrometer standard precision

Shank with knurling

The ratchet set the device can ensure accurate repeatability



Clear laser scale

Solid metal frame and surface with quality painted.

NO MEASURE SIZE  TOLERANCE/PRECISION
NO1 25-50mm 0.001mm





We have an outside micrometer, inside micrometer, DISC MICROMETER

The micrometer is a more precise tool for measuring length than the vernier caliper. The length can be measured accurately to 0.01mm with it, and the measuring range is several centimeters. A part of it is processed into a thread with a pitch of 0.5mm. When it rotates in the screw sleeve of the fixed sleeve B, it will move forward or backward. The movable sleeve C and the screw are connected into one body, and its periphery is equally divided into 50 divisions. The number of full turns of the screw is measured by the engraved lines on the fixed sleeve with an interval of 0.5mm. The part less than one turn is measured by the engraved lines around the movable sleeve. The final measurement result needs to be estimated to one decimal place.

Weight 1.5 lbs
Dimensions 15 × 45 × 65 in
Measurement system

Metric (mm)

Product Category

Outside Micrometer

Sales Unit

single

Measure Range

0-25MM
