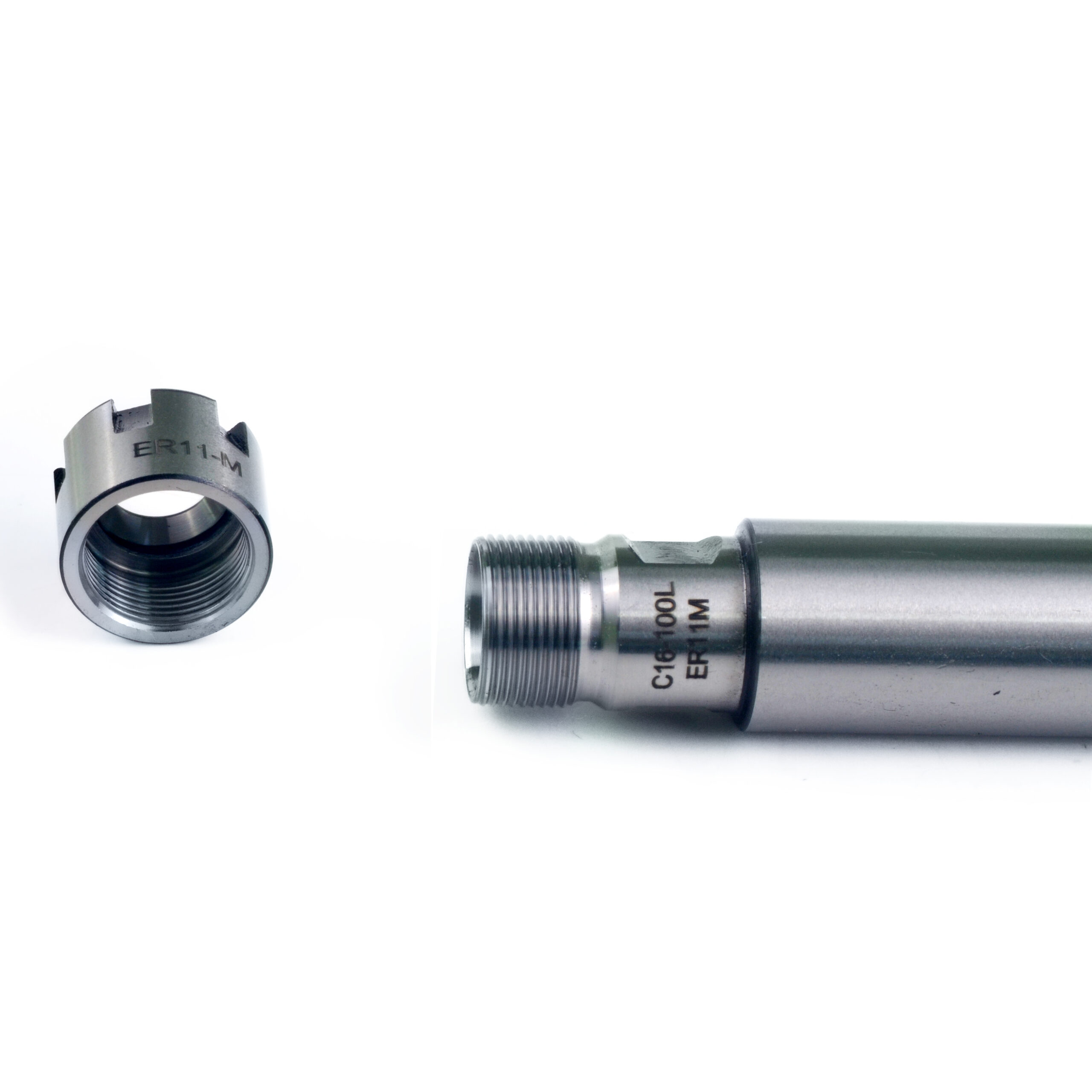

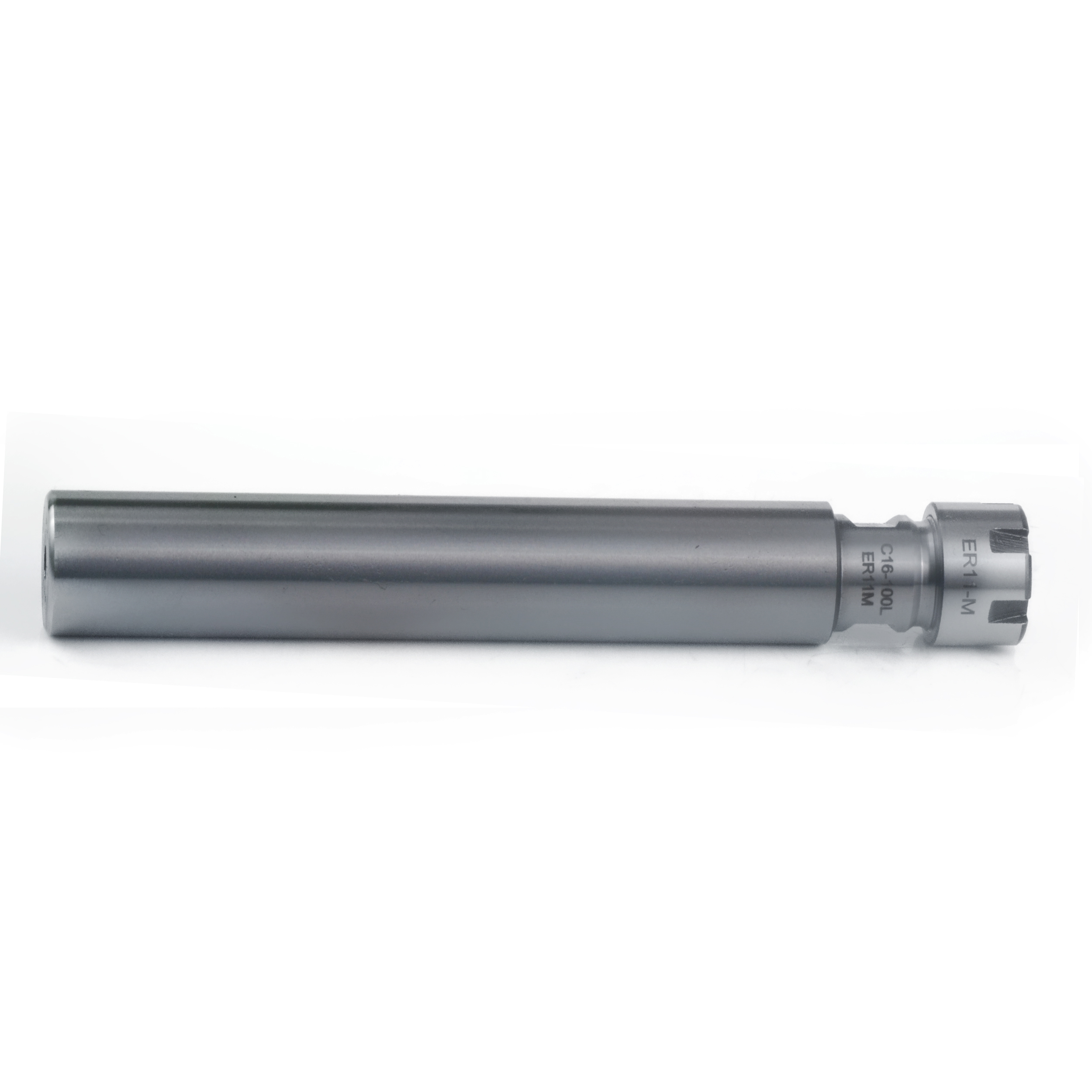

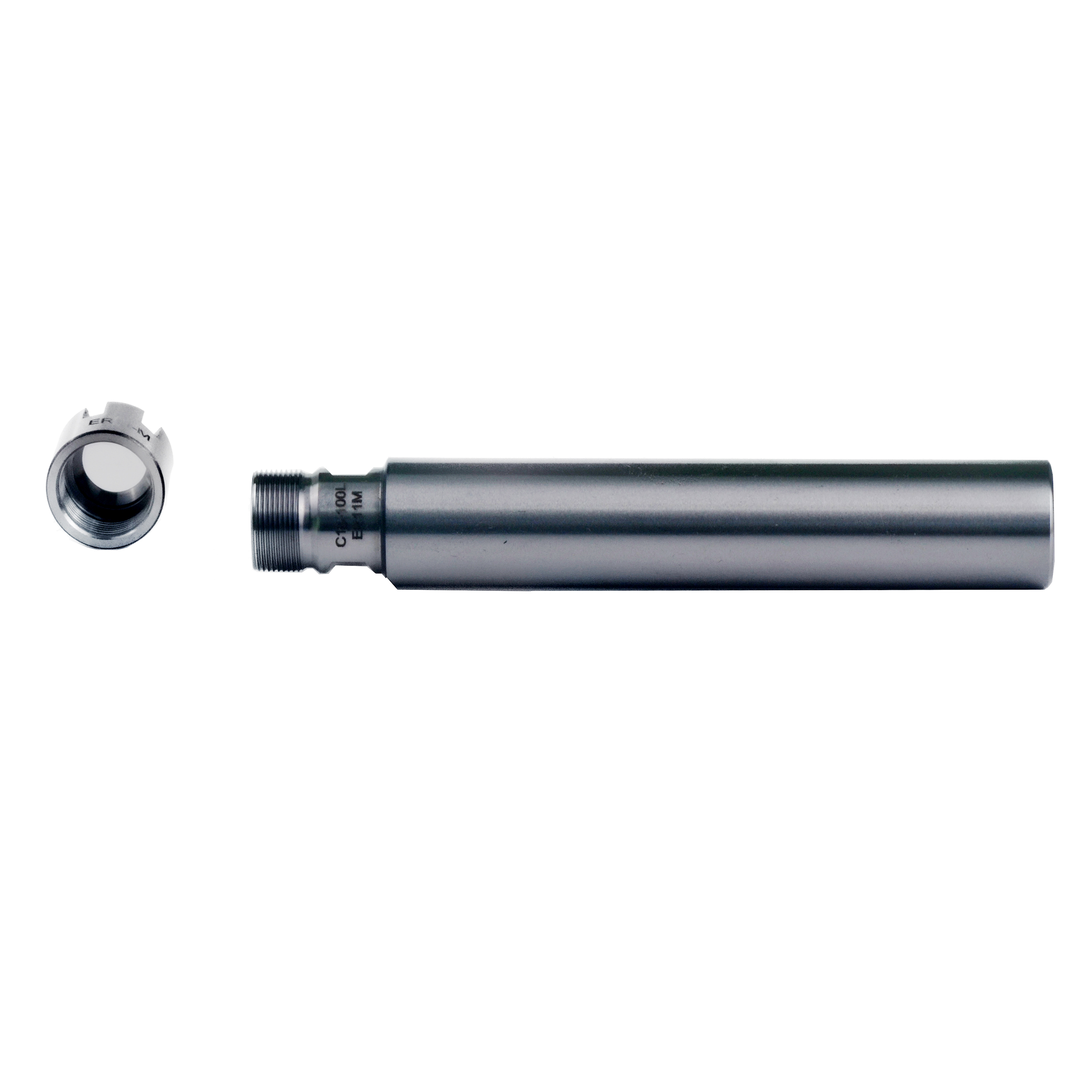

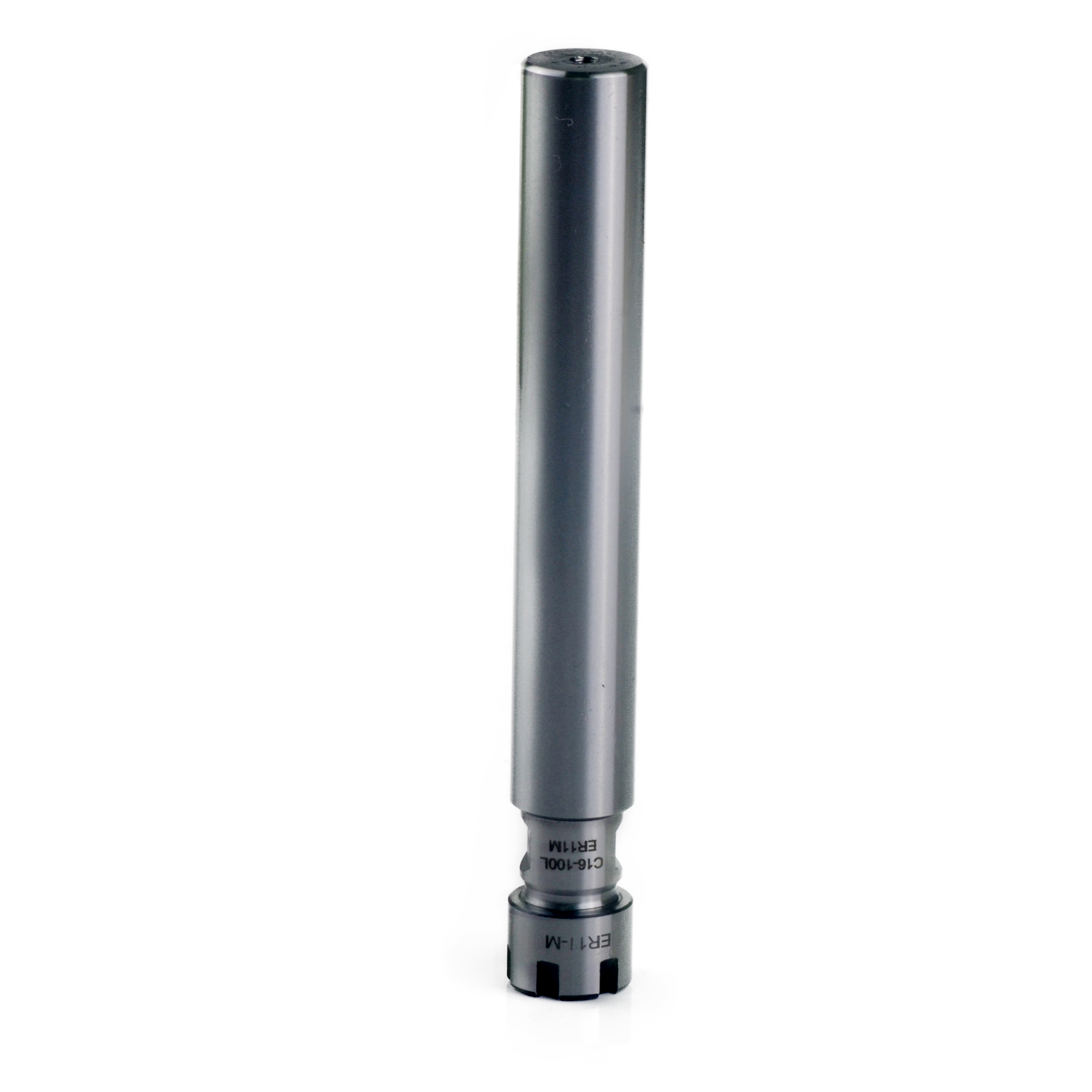

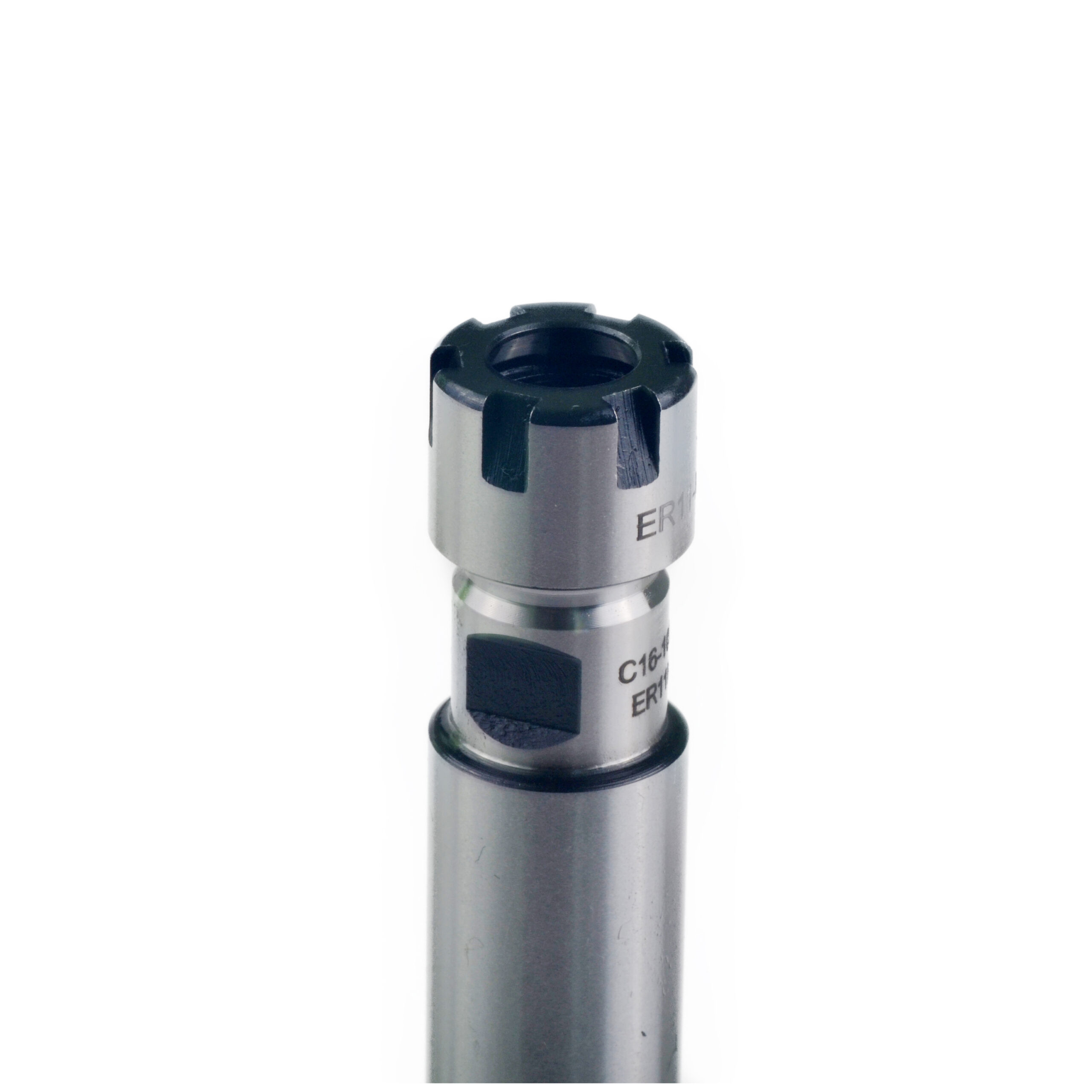

16MM X 100MM ER11 STRAIGHT SHANK COLLET HOLDER DRILL HOLDER

In Stock

SKU: 16ER11100M

$19.99

16MM X 100MM ER11 STRAIGHT SHANK COLLET HOLDER DRILL HOLDER

Made from alloy steel and hardness is HRC55

Nut included



Qty
Compare

16MM X 100MM ER11 STRAIGHT SHANK COLLET HOLDER DRILL HOLDER

MODEL ER11 COLLET CHUCK  RUN OUT (TIR) 0.0002″ FLANGE DIAMETER 0.6″
HOLDER TYPE ER COLLET CHUCK CLAMPING RANGE  1/16-1/4″ CLAMPING SIZE ER11
SHANK TYPE STRAIGHT TOOL HOLDER DRAWBAR THREAD NO COLLET NUT ER11 M
BALANCE MAX 12,000RPM SHANK DIAMETER 16MM COLOR oxide black
OVERALL LENGTH 125MM SHANK LENGTH 100MM  COOLANT  NO



STRAIGHT SHANK COLLET CHUCK EXTENSION HOLDER

For all er11 collets

Made from alloy steel and hardness is HRC55

Non Coolant thru all the shank

Nut included

Weight 1.5 lbs
Dimensions 15 × 45 × 65 in
Measurement system

Metric (mm)

Product Category

Collet Chuck Tool Holder

Shank Type

Straight

Collet Series

ER11
