3/4 SHANK ER16 COLLET CHUCK TOOL HOLDER CNC LATHE TOOLS
| MODEL | ER16 COLLET CHUCK | RUN OUT (TIR) | 0.0002″ | FLANGE DIAMETER | 1.0″ |
| HOLDER TYPE | ER COLLET CHUCK | CLAMPING RANGE | 3/16-3/8″ | CLAMPING SIZE | ER16 |
| SHANK TYPE | STRAIGHT TOOL HOLDER | DRAWBAR THREAD | No | COLLET NUT | ER16 Mini |
| BALANCE | MAX 15,000RPM | SHANK DIAMETER | 3/4 | COLOR | Oxide Black |
| OVERALL LENGTH | 2.7″ | SHANK LENGTH | 2.0 | SHANK WITH FLAT | NO |

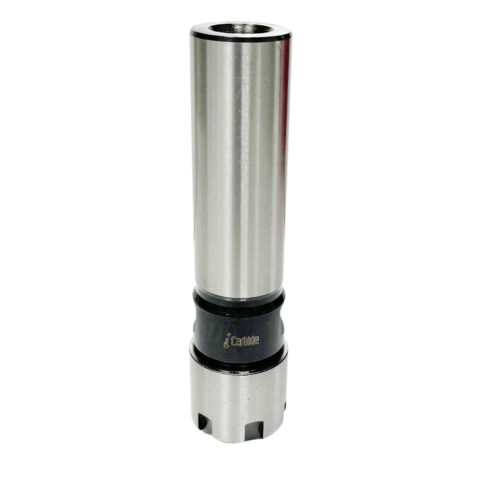

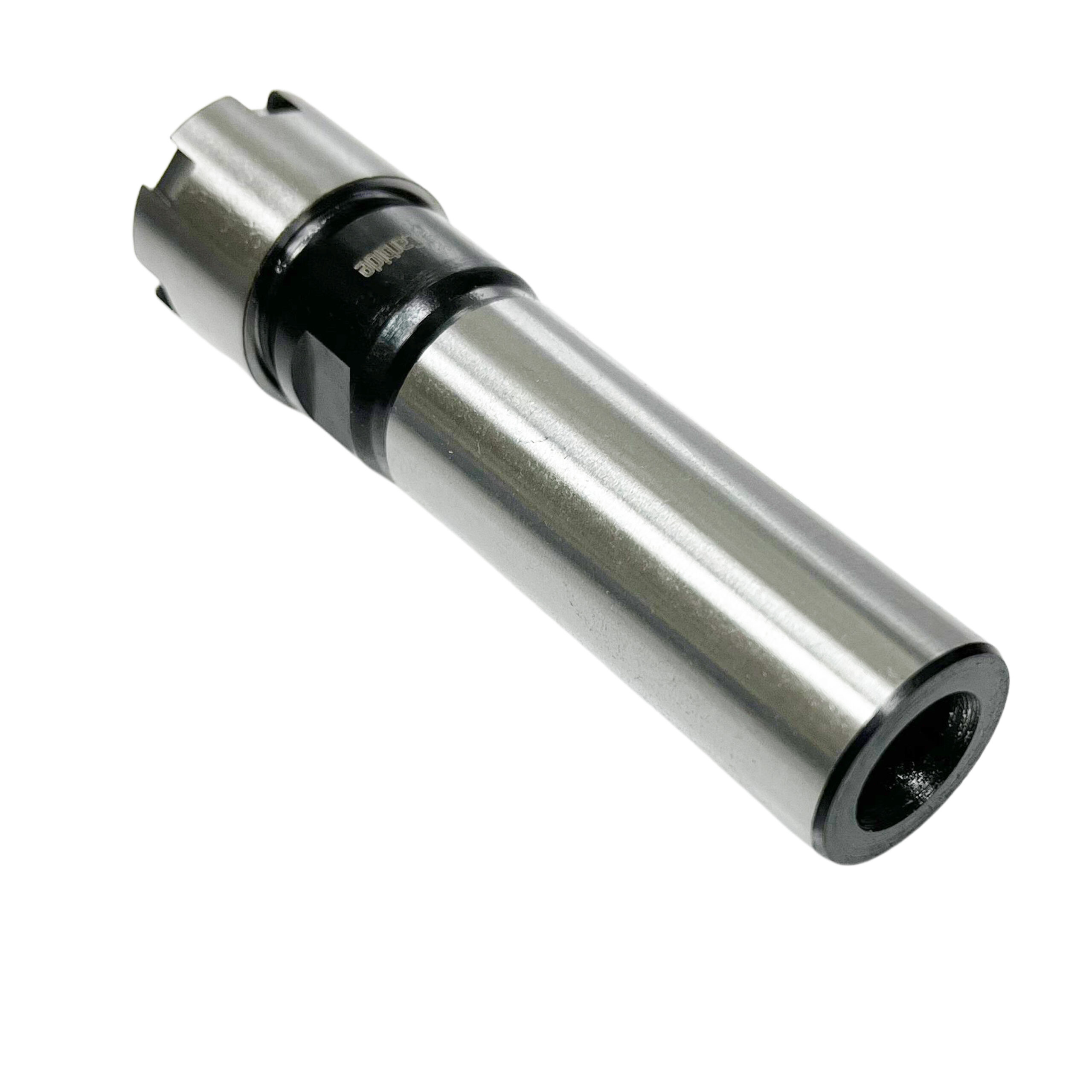

3/4″ ER16 STRAIGHT SHANK TOOL HOLDER COLLET CHUCK
For all er16 collets
Made from alloy steel and hardness is HRC55
Coolant thru all the shank
Nut included
Automatically grinding outside arbor and er collet taper
