Product Overview

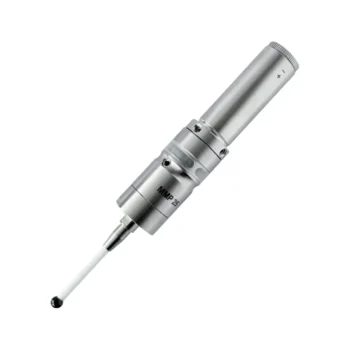

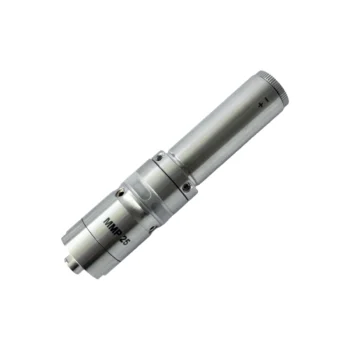

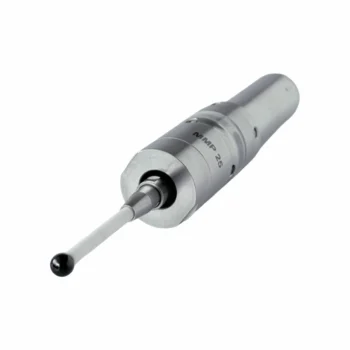

High-Accuracy Touch Probe for CNC Machines & Machining Centers
The MMP25 3D Tough Probe is a durable, high-precision touch probe designed for CNC machining centers, offering reliable 3D workpiece measurement, tool setting, and part alignment. Built with hardened steel components and IP67-rated protection, it withstands harsh machining environments while delivering repeatable accuracy within microns. Ideal for automated setups, batch production, and precision manufacturing.
Technical Specifications
| Feature | Specification |
|---|---|
| Model | MMP25 |
| Type | 3D Tactile / Touch Trigger Probe |
| Repeatability | ≤ 0.1 µm (0.000004″) |
| Pre-Travel Variation | ≤ 0.15 µm (0.000006″) |
| Stylus Length Range | Up to 50mm (standard) |
| Operating Voltage | 5V DC (±5%) |
| Signal Output | TTL / UCC (User-configurable) |
| Protection Rating | IP67 (Coolant & dust resistant) |
| Body Material | Hardened stainless steel |
| Interface | Wireless |
| Operating Temperature | 0–50°C (32–122°F) |

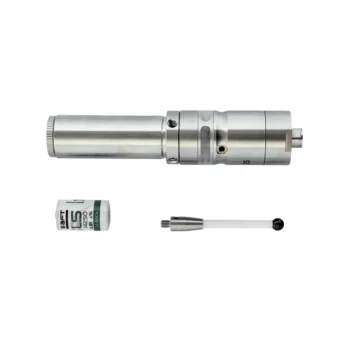

| Included | MMP25 3D Tough Probe, Battery |
Key Features
✅ 3D Omnidirectional Sensing – Measures X, Y, Z axes with consistent repeatability
✅ Rugged & Sealed Design – IP67 protection against coolant, chips, and dust
✅ High Repeatability – ±0.1µm (0.000004″) for precision alignment and inspection
✅ Hardened Steel Stylus & Body – Resists wear in demanding machining conditions
✅ CNC Compatibility – Works with Fanuc, Siemens, Heidenhain, Mitsubishi, and other controls
✅ Easy Integration – Includes mounting accessories and setup documentation
Perfect For
- CNC machining center setup & tool setting
- Automated workpiece alignment & origin setting
- Batch production with consistent part referencing
- Precision mold & die machining
- Aerospace, automotive, and medical part manufacturing
- Machining cells with pallet changers or automation
