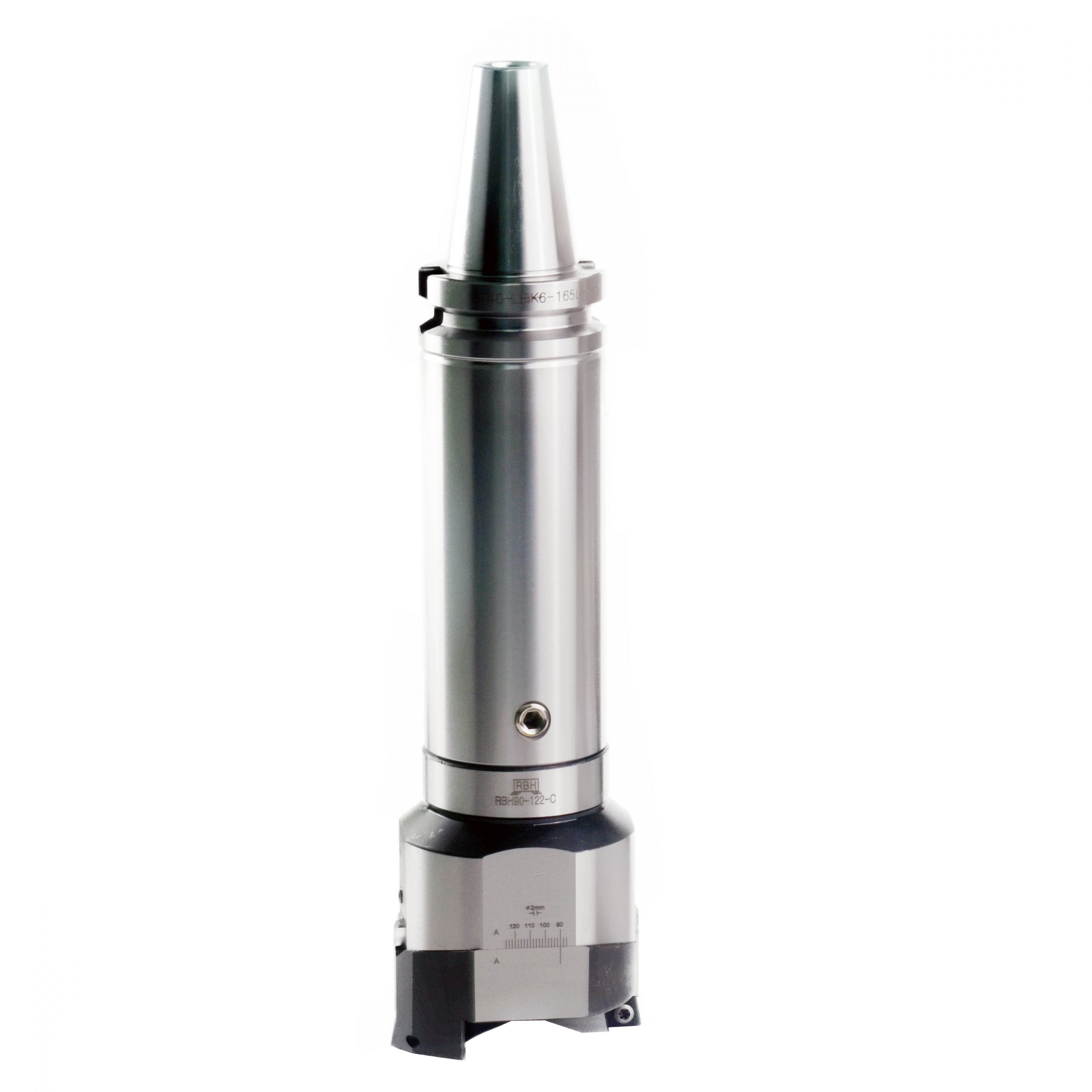

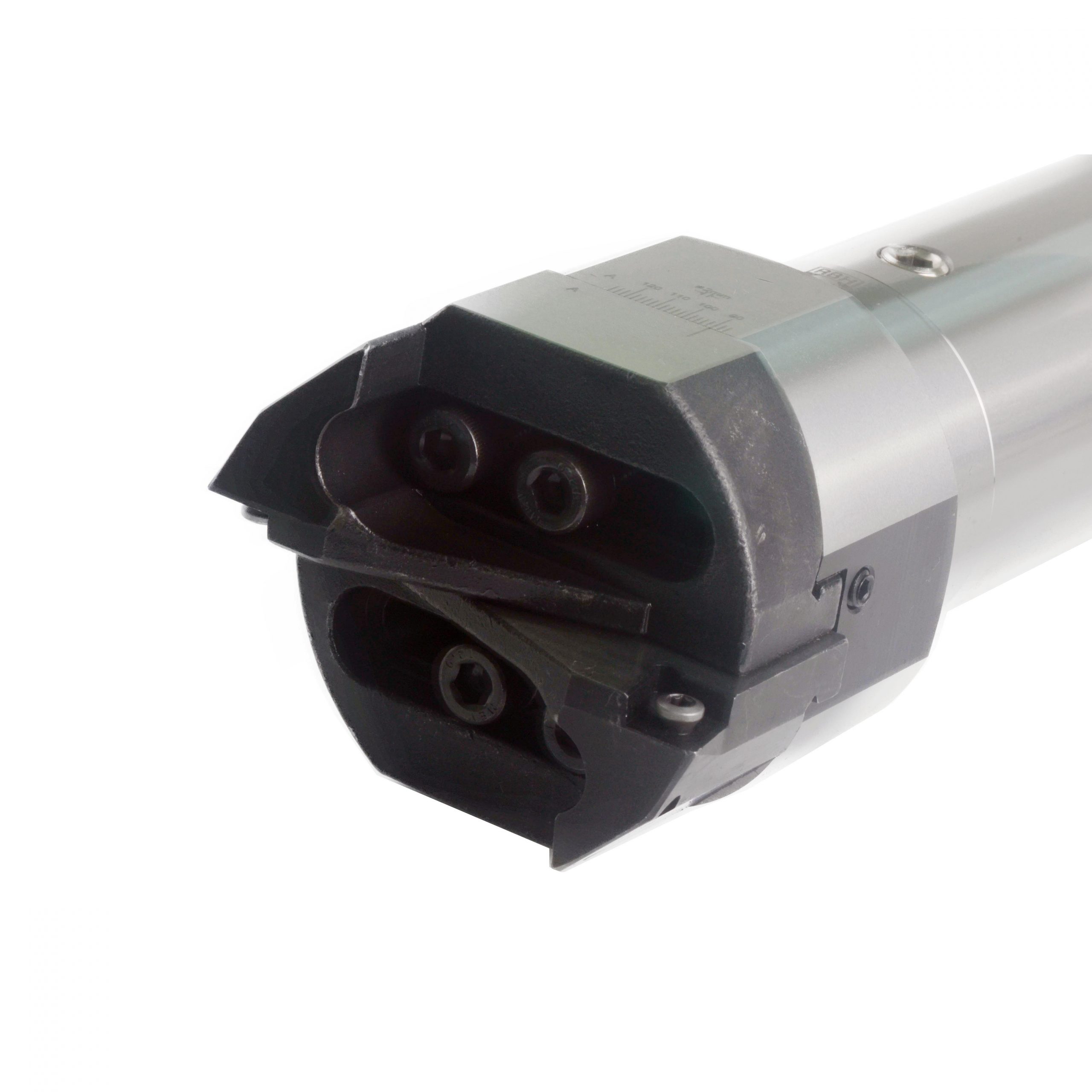

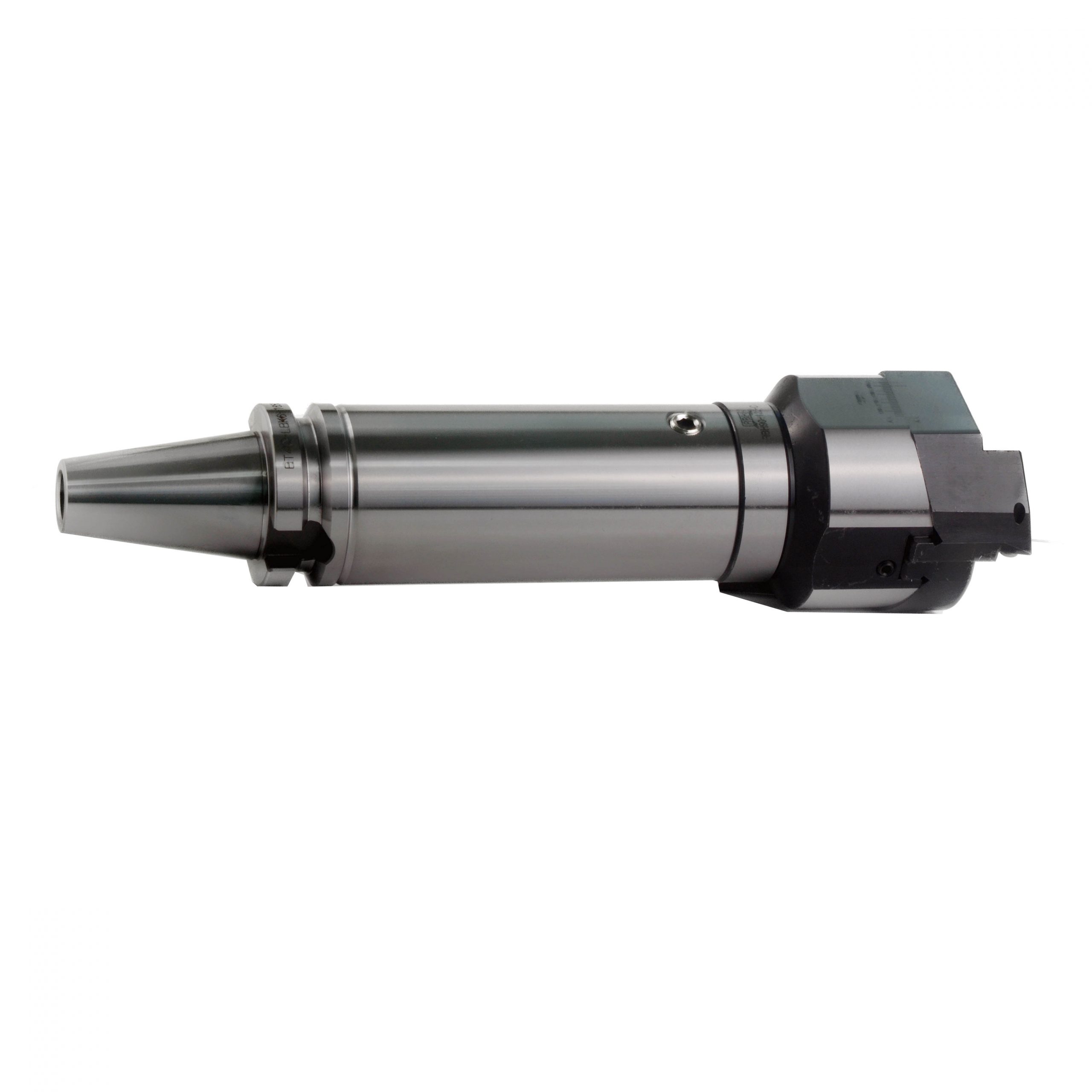

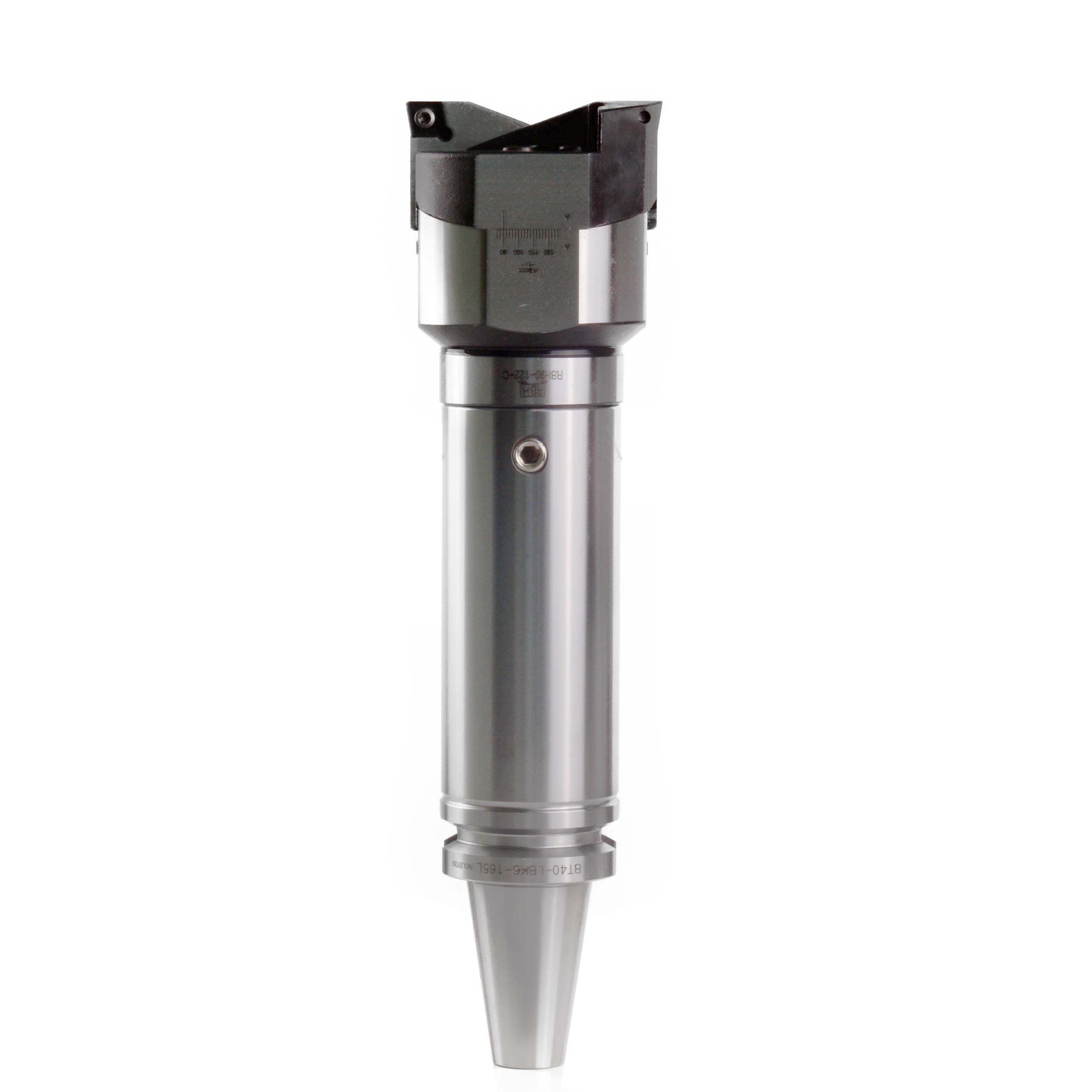

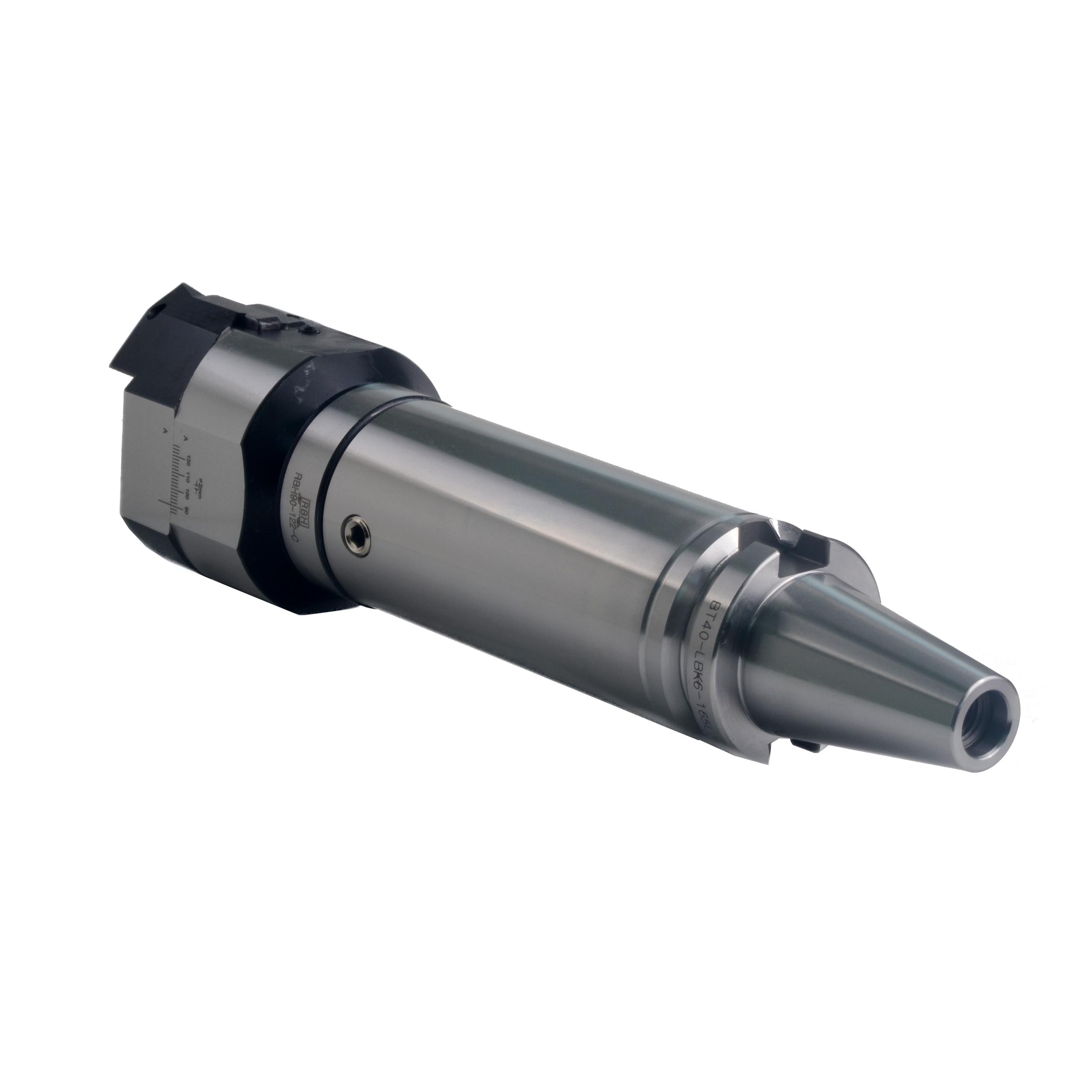

4.8″ TWIN ROUGH BORING HEAD WITH BT40 SHANK ARBOR BORING TOOL

In Stock

SKU: BT4090122R

$199.99

4.8″ TWIN ROUGH BORING HEAD WITH BT40 SHANK ARBOR BORING TOOL

item includes BT40  shank arbor.

Qty
Compare

4.8″ TWIN ROUGH BORING HEAD WITH BT40 SHANK ARBOR BORING TOOL

MODEL ROUGH BORING HEAD  RUN OUT (TIR) 0.0002″
HOLDER TYPE  BT40 TOOL HOLDER CARBIDE INSERT CCMT1204**
SHANK TYPE BT40  DRAWBAR THREAD M16
CUTTING FLUTE 2 Gage Length 6.5″
BORING RANGE 3.5″-3.6″ BORING  DEPTH/DIAMETER MAX 7″ / 3.6″

Adjustable rough boring head

Boring precision 0.0002 ”  increased

item includes BT40  shank arbor



MODEL

BORING RANG

(MM)

BORING DEPTH



INSERTS



ACCEPT ARBOR



BORING FEED

mm/rev

CUTTING SPEED

m/min

WRENC H

RBH19-25 19-25 32 CCMT0602** LBK1 0.05-0.030 100-200 T8
RBH26-35 26-35 40 CCMT0602** LBK2 0.05-0.030 100-200 T8
RBH40-55 40-55 52 CCMT0903** LBK3 0.05-0.035 100-200 T15
RBH52-75 52-72 68 CCMT0903** LBK5 0.05-0.035 100-200 T15
RBH68-110 68-110 83 CCMT1204** LBK6 0.05-0.035 100-300 T15
RBH110-164 110-164 135 CCMT1204** BST 0.07-0.030 100-300 T20
RBH160-200 160-200 140 CCMT1204** BST 0.07-0.035 70-300 T20
RBH200-250 200-250 150 CCMT1204** BST 0.07-0.035 70-300 T20

 Material Application

a. Quenched and tempered structural steel: The carbon content of this type of steel is generally about 0.25% to 0.55%. For structural parts of a given cross-sectional size, when quenched and tempered along the cross-section during quenching and tempering (quenching and tempering), the mechanics The performance is good. If the hardening is not penetrated and free ferrite appears in the microstructure, the toughness decreases. For steels with a tendency to temper brittleness, such as manganese steel, chromium steel, nickel-chromium steel, etc., they should be cooled quickly after tempering. The quenching critical diameter of this type of steel increases with the increase in grain size and alloying element content. For example, 40Cr and 35SiMn steel are about 30-40mm, and 40CrNiMo and 30CrNi2MoV steel is about 60-100mm, which is often used in manufacturing Structural parts such as shafts and connecting rods with large loads.

b. Surface hardened structural steel: used to manufacture hard and wear-resistant surface parts and flexible parts, such as gears and shafts. In order to increase the toughness of the core of the part, the carbon content in the steel should be low, generally 0.12 to 0.25%, and there is also an appropriate amount of alloy elements to ensure proper hardenability. Nitrided steel also needs to add alloy elements (such as Al, Cr, Mo, etc.) that are easy to form nitrides. Carburized or carbonitrided steel, after carburizing or carbonitriding at 850~950℃, quenched and used under low-temperature tempering (about 200℃). The nitrided steel is directly treated by nitriding (480~580℃), and it is no longer quenched and tempered.

Weight 1.5 lbs
Dimensions 15 × 45 × 65 in
Measurement system

Inch (in)

Product Category

Boring Head Arbor

Shank Type

BT40
