Product Overview

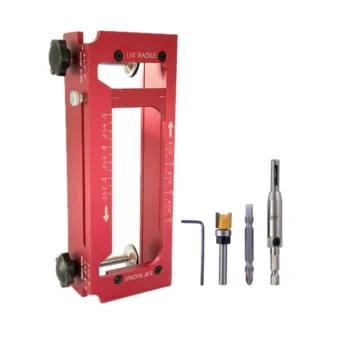

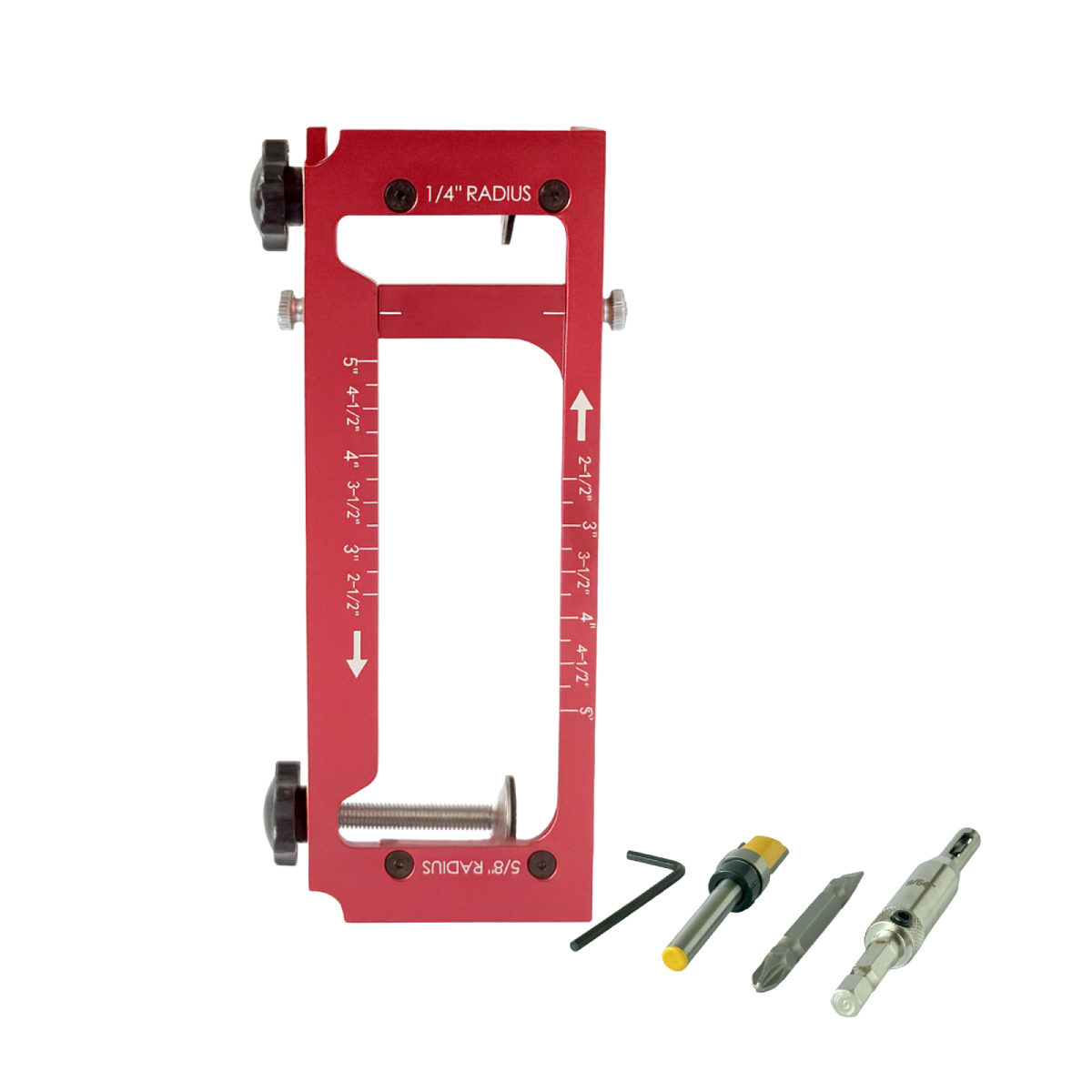

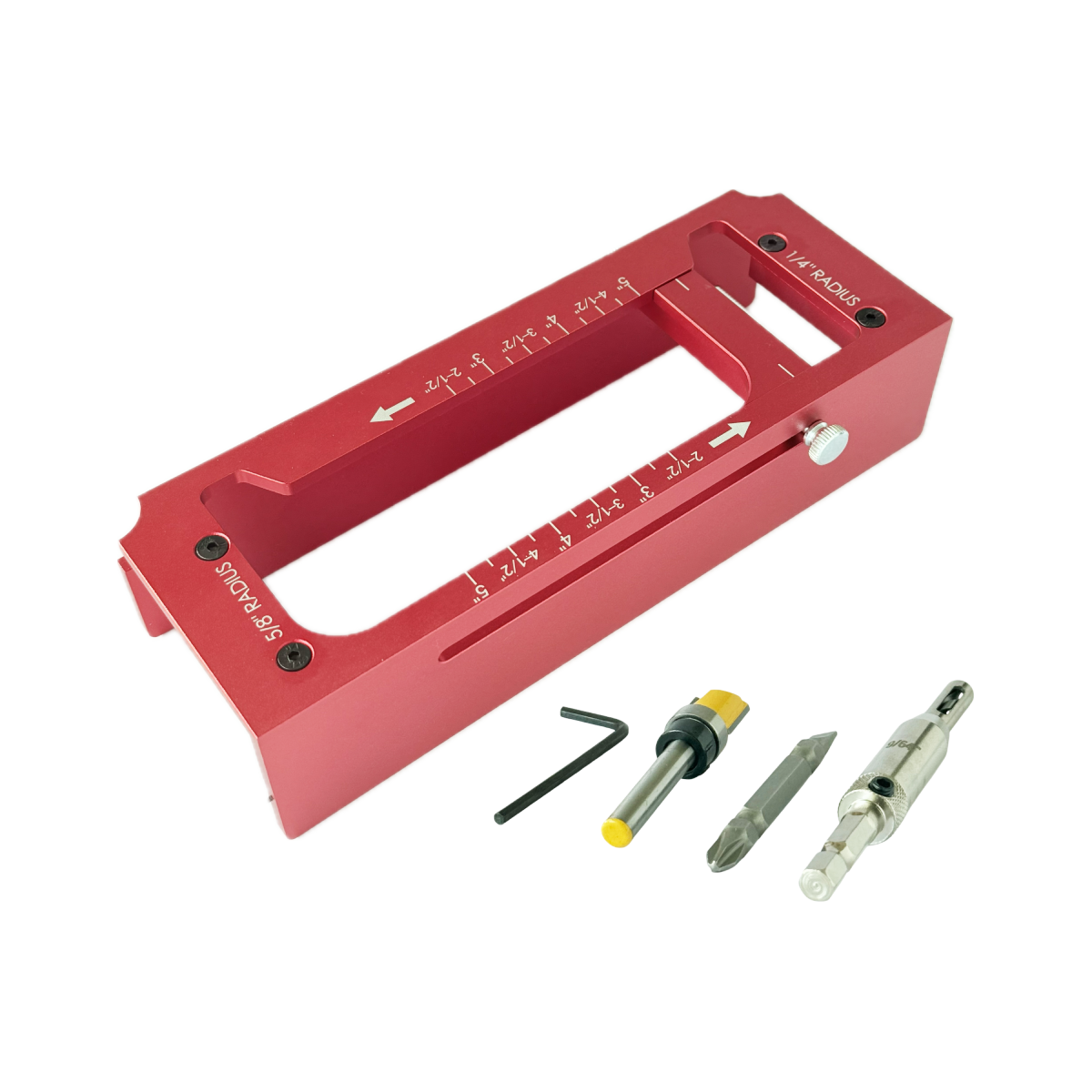

A complete, precision-engineered hinge installation system designed for flawless hinge mortising on doors from 2½” to 5″ width. This professional kit combines adjustable templates, dedicated router guides, and specialized marking tools to eliminate guesswork from hinge installation. Whether installing new doors, replacing old hinges, or adjusting pre-hung doors, this system delivers perfectly aligned, consistent results for carpenters, cabinetmakers, and serious DIYers.
Technical Specifications
| Feature | Specification |
|---|---|
| Model Number | BTWT004K |
| Primary Material | 6061 Aluminum (Templates & Guides) / Stainless Steel (Pins & Bushings) / Impact-Resistant ABS (Cases) |
| Hinge Size Range | 2½” to 5″ (63mm to 127mm) – Continuous adjustment within range |
| Template Types Included |
|
| Core Function |
|
| Router Compatibility | Works with all standard plunge routers (¼” and ½” collets) |
| Drill Guide Compatibility | Accepts standard drill bits for screw pilot holes |
| Accuracy/Precision | ±0.5mm mortise depth / ±0.3mm hinge alignment |
| Kit Weight | 3.2 kg (7 lbs) |
| Carrying Case Dimensions | 420mm × 320mm × 120mm (16.5″ × 12.6″ × 4.7″) |
| Package Contents | • 1× Adjustable Butt Hinge Template (2½”-5″) • 1× Accessoies Set |
Key Features & Benefits
One-Kit Universal Solution

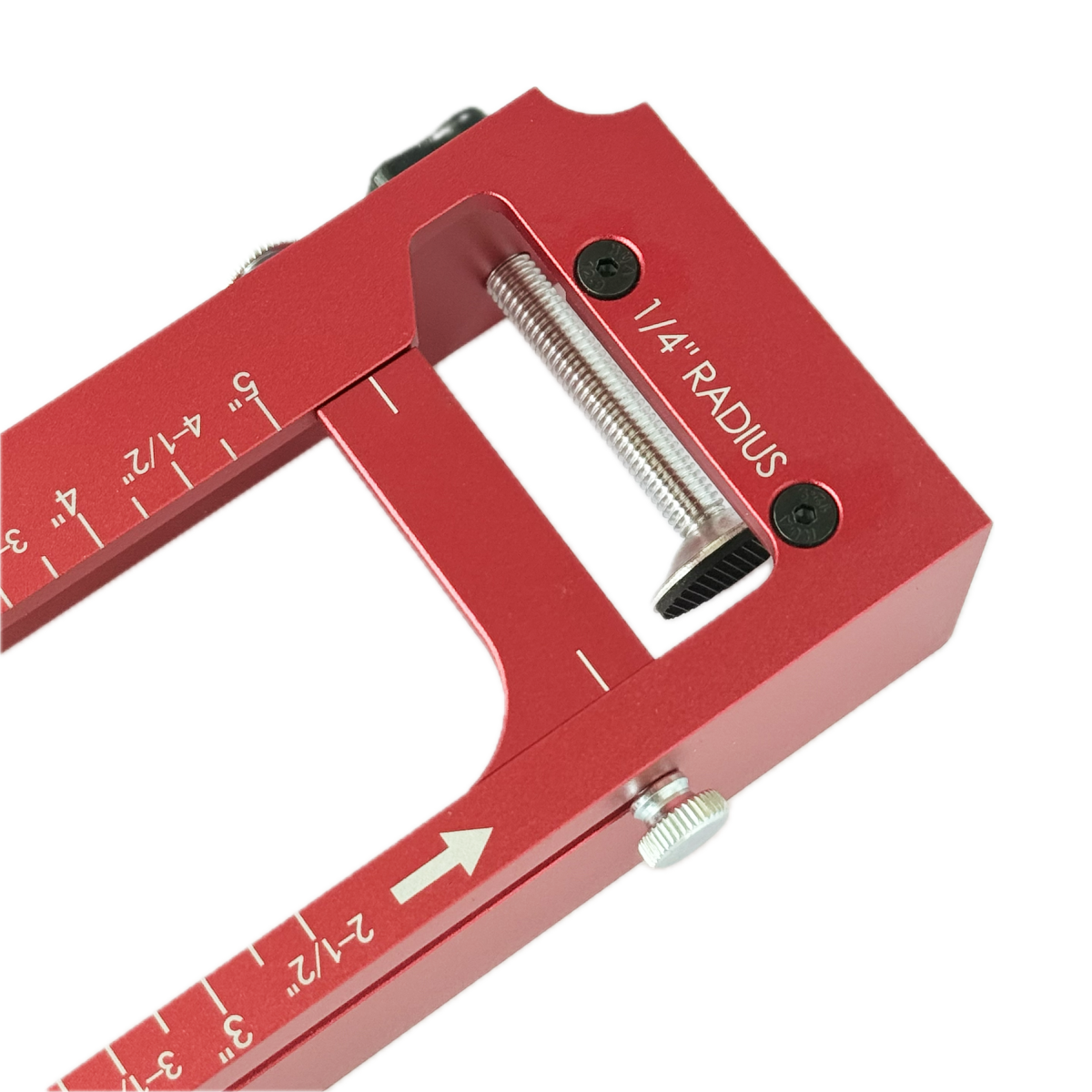

- Continuous Size Adjustment: Micro-adjustable template fits any hinge from 2½” to 5″ without changing parts
- Four Template System: Covers butt hinges, European hinges, face frames, and door edge mortising
- Material Versatility: Works perfectly on solid wood, MDF, plywood, and composite doors
Precision Alignment System
- Laser-Etched Centerlines: Perfect hinge alignment on door and frame every time
- Self-Centering Edge Guide: Automatically centers hinge mortises on door edges
- Adjustable Depth Stops: Consistent mortise depth across all hinges
- Positive Locking Knobs: Secure settings during routing operations
Professional Router Integration
- Dual Guide Bushings Included: ½” and ¾” sizes for different router bit diameters
- Universal Router Base Plate: Fits most router models without adaptation
- Clear Chip Visibility: Open template design allows dust extraction and visual confirmation
- Non-Slip Base Padding: Prevents template movement during routing
Time-Saving Installation Features
- Hinge Positioning Clamps: Hold hinge perfectly in place for marking and screw pilot drilling
- Integrated Drill Guide: Drills perfectly perpendicular pilot holes at correct depth
- Quick-Set Adjustment System: Change hinge sizes in under 30 seconds
- Batch Processing Ready: Identical setup for multiple doors ensures consistency
Enhanced Accuracy Tools
- Calibrated Marking Awl: Precisely transfer hinge screw locations without measuring
- Depth Calibration Key: Set exact router depth for perfect mortise thickness
- Edge Alignment Flippers: Adjust for different door thicknesses (1â…œ” to 1¾”)
- Reference Scale System: Match hinge positions perfectly between door and frame
Perfect For
Professional Applications:
- Door Installers & Carpenters: Perfect hinge mortises for interior/exterior doors
- Cabinet Makers: European hinge installation for kitchen and bathroom cabinets
- Millwork Shops: Production hinge installation for multiple doors
- Property Managers & Maintenance: Door repair and hinge replacement
- Custom Furniture Builders: Precision hinge work for chests, cabinets, and boxes
Why Buy It?
✅ Professional Results Every Time
- Eliminate Installation Errors: Perfectly aligned hinges prevent door sagging and binding
- Consistent Depth Control: Uniform mortises for smooth hinge operation
- Factory-Like Precision: Achieve professional install quality without specialized equipment
✅ Dramatic Time Savings
- 75% Faster Installation: Complete hinge mortising in minutes instead of hours
- Eliminate Hand Chiseling: Router-based system creates clean mortises instantly
- Quick Changeovers: Adjust between different hinge sizes in seconds
- Reduced Setup Time: Template system requires minimal measurement and marking
✅ Complete System Value
- Four Tools in One: Replaces multiple single-purpose jigs and templates
- No Additional Purchases: Includes all guides, bushings, and accessories needed
- Professional Organization: Hard-shell case keeps system organized and protected
- Long-Term Investment: Durable construction ensures years of reliable service
✅ Enhanced Capability & Versatility
- Handle Any Project: Residential doors, cabinet doors, furniture, and repairs
- Adapt to Any Hinge: Works with standard, ball-bearing, and European hinges
- Grow with Your Skills: System accommodates both basic and advanced installations
- Workshop to Jobsite Ready: Portable case brings professional capability anywhere
✅ Confidence in Installation
- Perfect Alignment Guaranteed: Self-centering system eliminates measurement errors
- No More Door Adjustments: Correct hinge placement means doors work perfectly immediately
- Professional Reputation: Deliver flawless installations that enhance your credibility
- Reduce Callbacks: Eliminate hinge-related issues that require return visits
