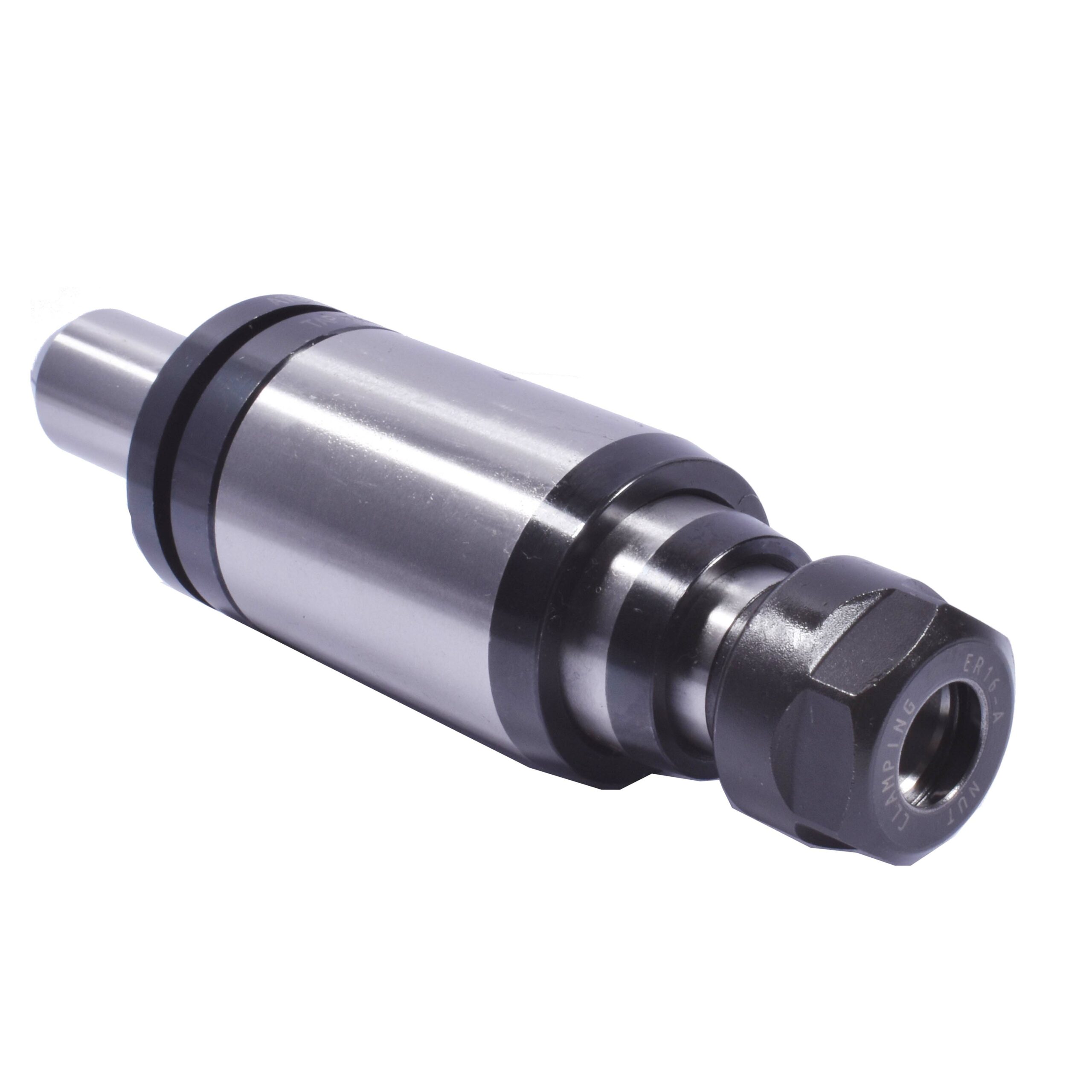

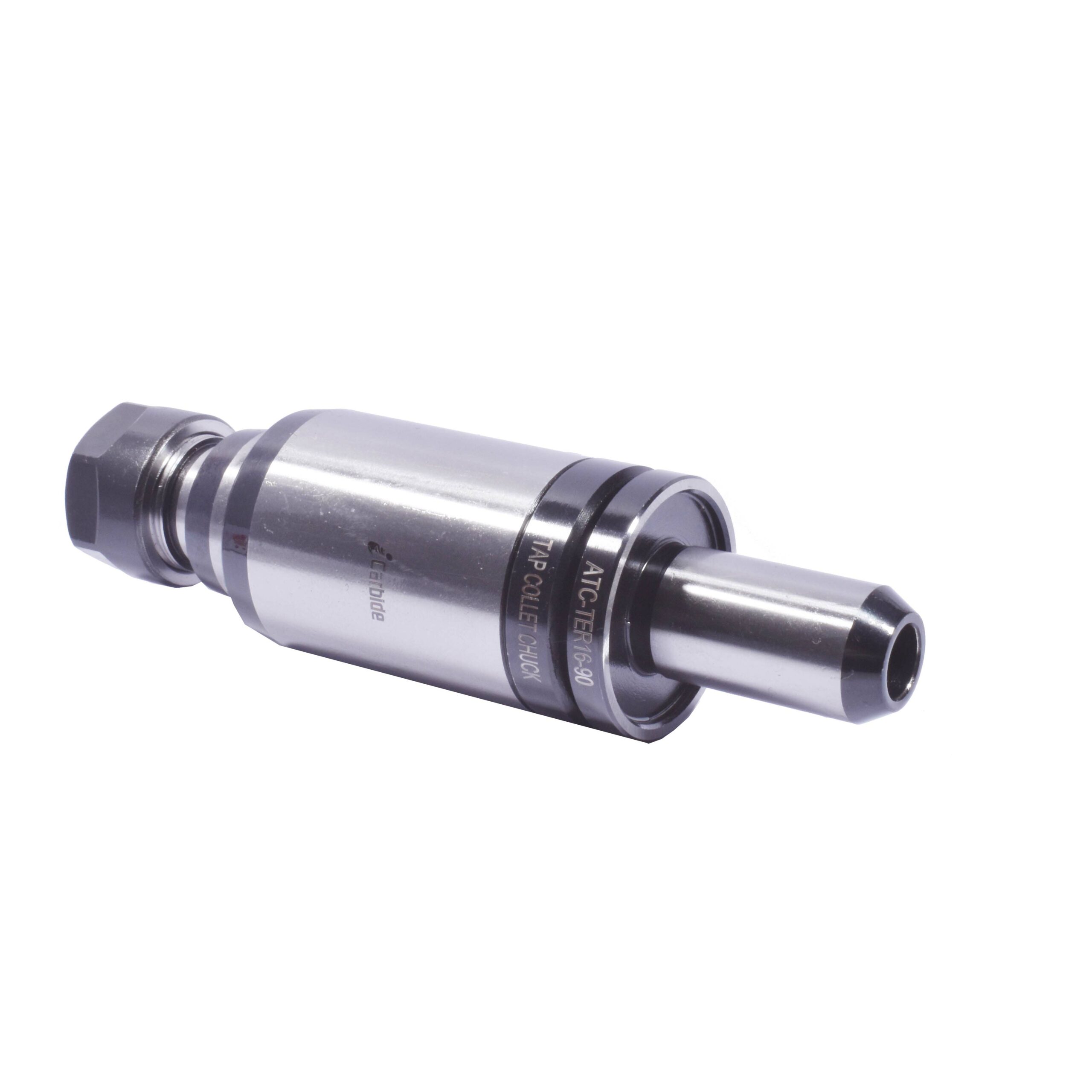

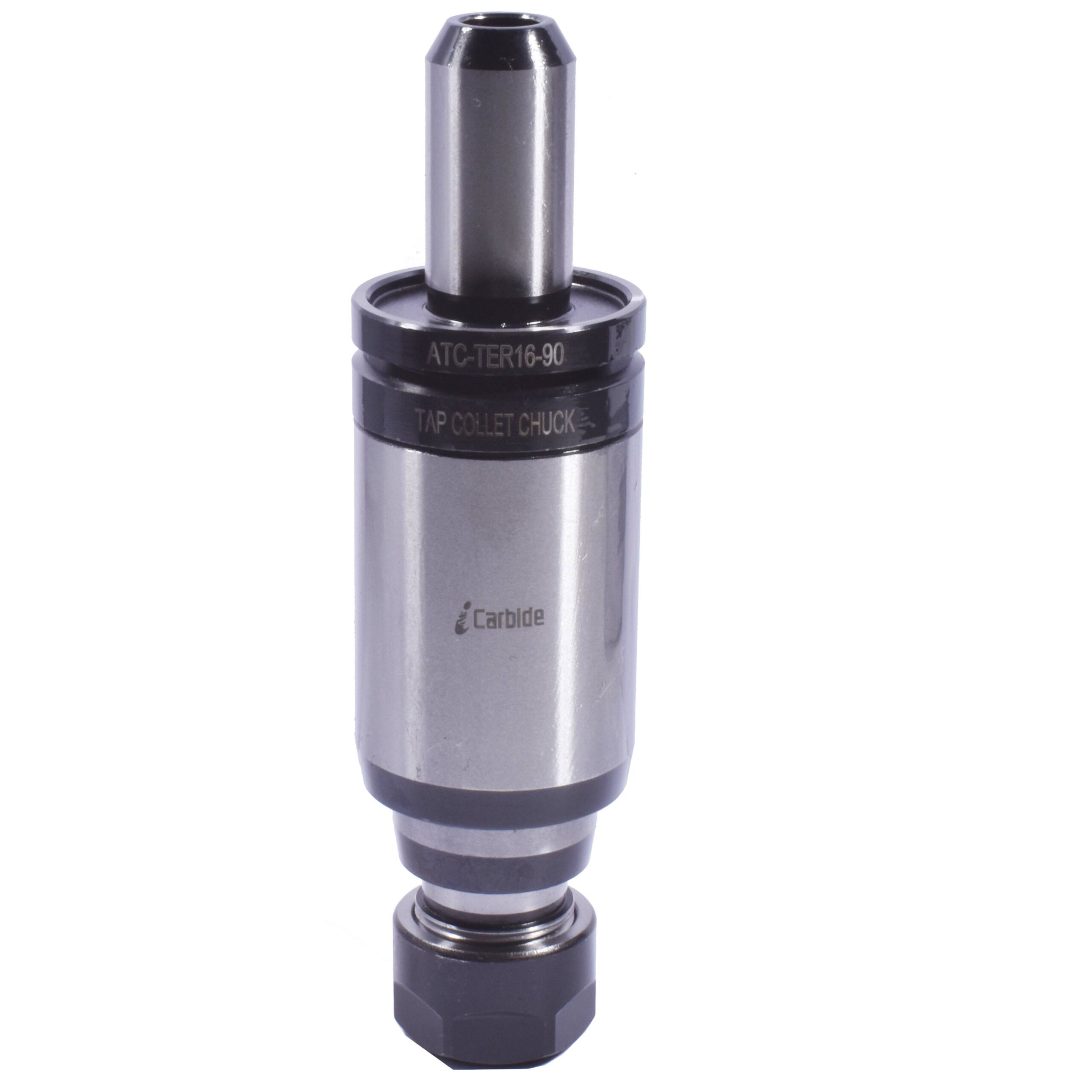

ATC3/4 TTS ER16 TAPPING FLOATING TOOL HOLDERS FOR TTS TORMACH

In Stock

SKU: ATCTER1690

$119.99

ATC3/4 TTS ER16 TAPPING FLOATING TOOL HOLDERS FOR TTS Tormach

The flange is 1.5″ with a groove  for TTS Tormach  machine

Made from alloy steel and hardness is HRC55

Nut included

Qty
Compare

ATC3/4 TTS ER16 TAPPING FLOATING TOOL HOLDERS FOR TTS Tormach

MODEL  TAPPING HOLDER  RUN OUT (TIR) 0.0002″ FLANGE DIAMETER 1.50″
HOLDER TYPE THREAD /REAMER CLAMPING  ER16 COMPRESS LENGTH 10MM
SHANK TYPE STRAIGHT TOOL HOLDER DRAWBAR THREAD NO COLLET NUT ER16
BALANCE MAX 12,000RPM SHANK DIAMETER 3/4 COLOR oxide black
OVERALL LENGTH 2.88″ SHANK LENGTH 1.38″ ATC GROOVE YES



ATC3/4 TTS ER16 TAPPING FLOATING TOOL HOLDERS FOR TTS Tormach

For all er16 collets

The flange is 1.5″ with a Groove  for TTS Tormach  machine

Made from alloy steel and hardness is HRC55

Thread included

Weight 1.5 lbs
Dimensions 15 × 45 × 65 in
Measurement system

Inch (in)

Product Category

TTS Tool Holder

Shank Type

Straight
