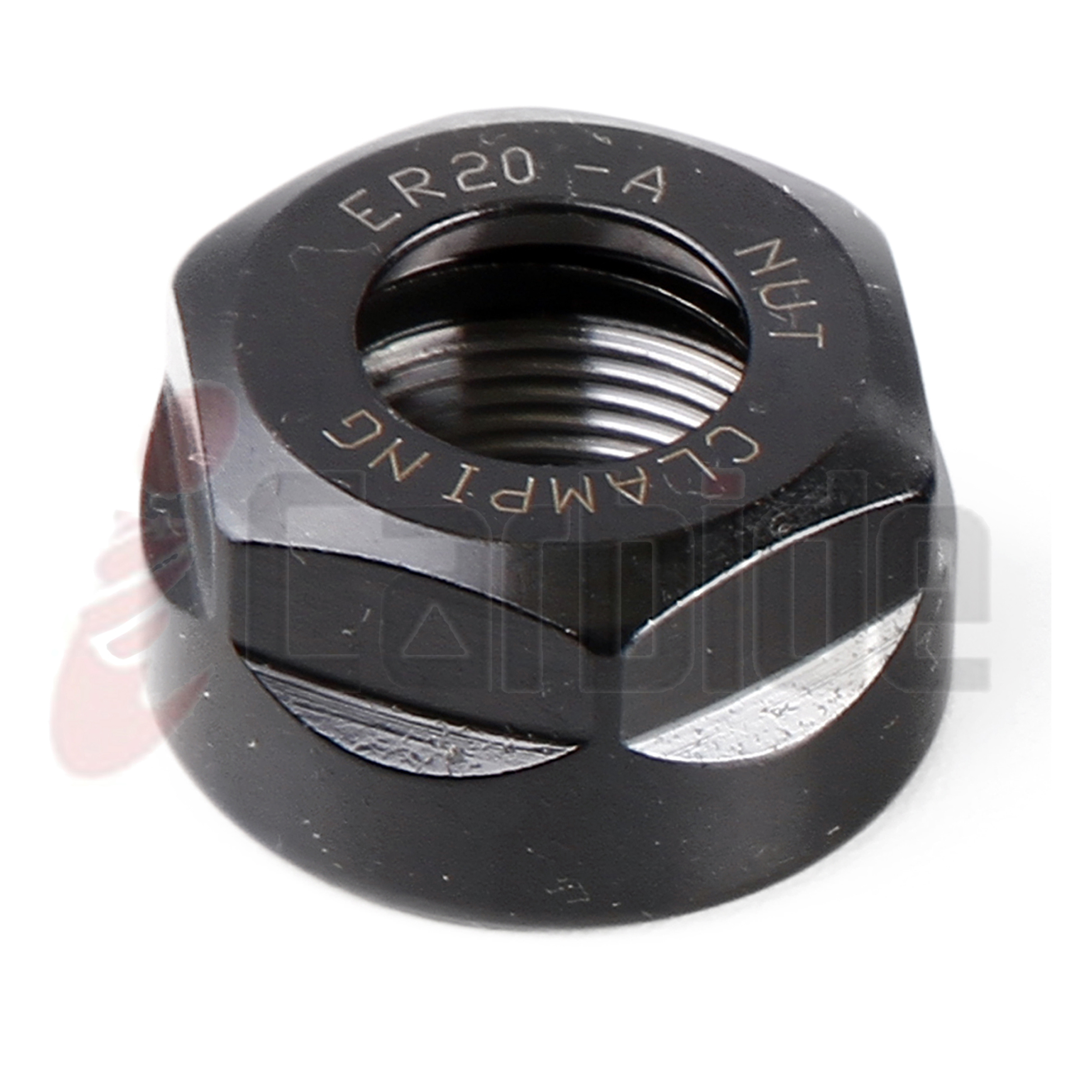

BALANCE ER20 COLLET NUT G2.5 25000rpm

In Stock

SKU: 20ER20B

$13.99

Tool Holder Collet Nut

For all ER20 Collets

Collet nut diameter: 34mm

Collet nut thickness:19mm

Collet nut thread: M25x1.5

Use hexagon type wrench

Qty
Compare

ER20  Collet Nut

COLLET NUT ER20 NUT THREAD M25X1.5
CLAMPING TYPE HEX DIAMETER 34mm
COLOR OXIBIDE BLACK THICKNESS 19MM



The tool holder collet nut for all DIN6499 standard tool holder

Finishing & Rough Cutting:  High precision run out saving your cost-effective

Precision: CNC turning thread after heat treatment and the inner cone and the threaded hole is processed at one time.

Made in Alloy Steel, Hardened: HRC55

Newly designed machined match to  balance G2.5 25000rpm, Easy install and  take off cellet from body

Quality

100%  quality control, We checked er collet one by one , Er collet >hardness >size>material >run out >lable >packing

 We have cnc collet size include er8,er11,er16,er20,er25 ,er32 ,er40 and er50 mill collet. we would also provide er collet sets available .

Another collet available in R8 collet, OZ Collets, straight collets,

milling collets,sk10 collet,sk16 collet, SLC collets, and TG collets

We accept OEM order

Material Application

Japanese JIS standard SUJ2 high carbon chromium bearing steel, corresponding to the national
standard GCr15, SUJ2 high carbon chromium bearing steel, can be fully hardened, the hardness
can reach HRC58-61, has the wear resistance of the bearing, also strengthens the rigidity,
workability Good, and can be directly processed and shaped, using mold times 2-3 times higher
than SKD-61 (HRC52) full hardware. During quenching and tempering, the size does not change much, and fatigue resistance is quite good.

E. Send Inquiry to Us for free

We will, as always, send samples to the consulting clients to ensure high-quality performance and reasonable prices. We focus on CNC Cutting tools & Tool System etc, provide the best tool for clients of different types of operations.



Please no, hesitate to send an inquiry to us at alex@buyustools.com

Weight 1.5 lbs
Dimensions 15 × 45 × 65 in
Measurement system

Inch (in)

Product Category

Balance Collet Nut

Collet Series

ER20
