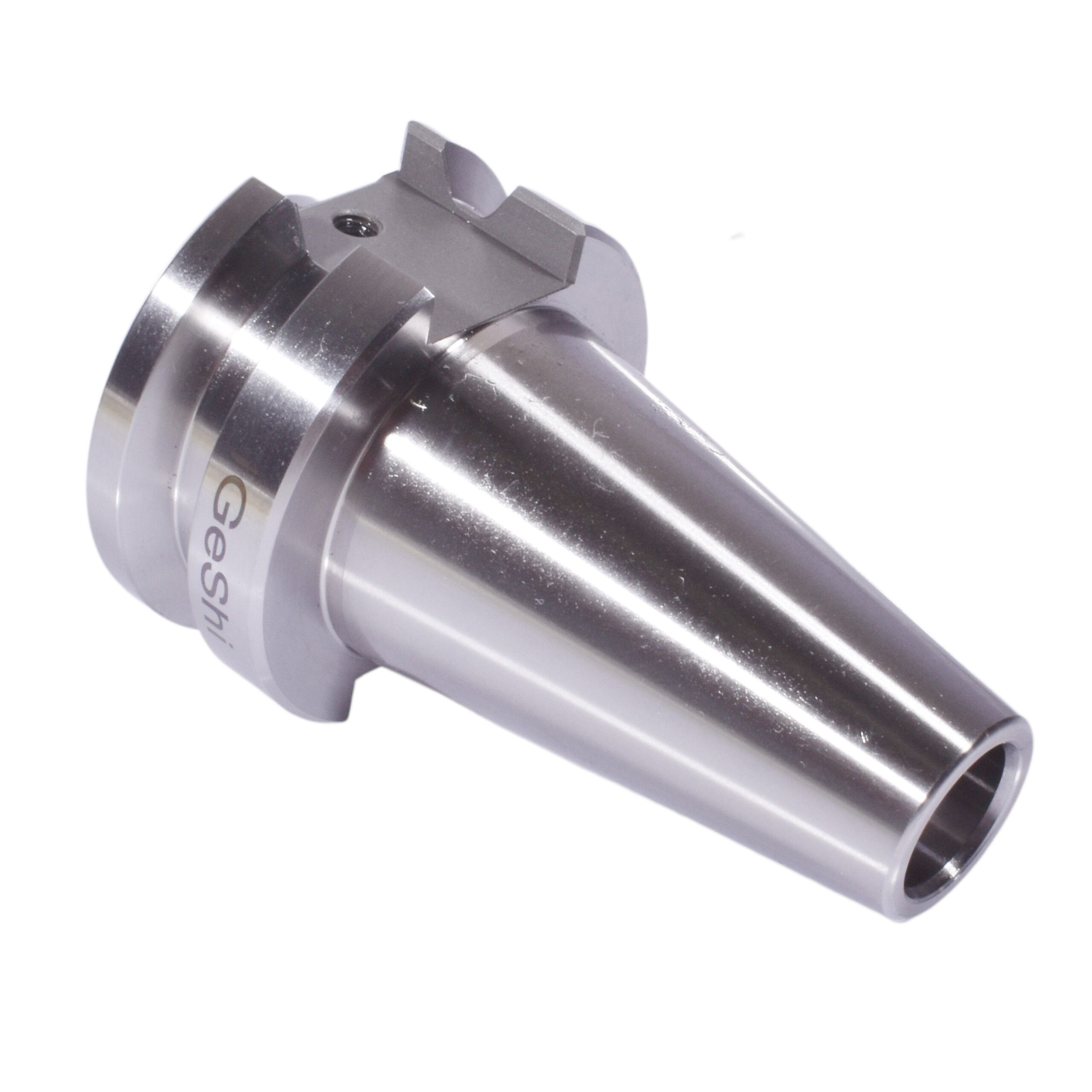

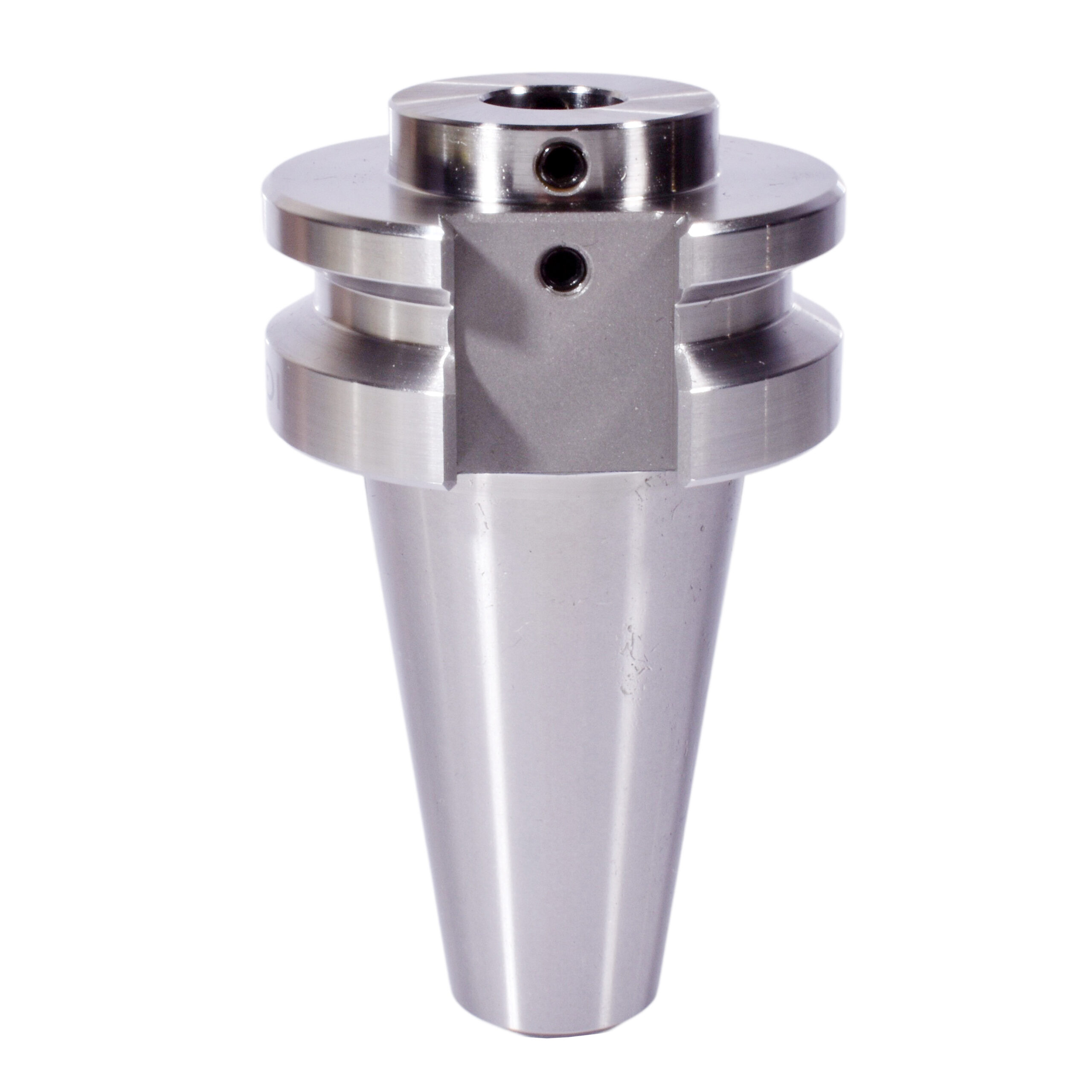

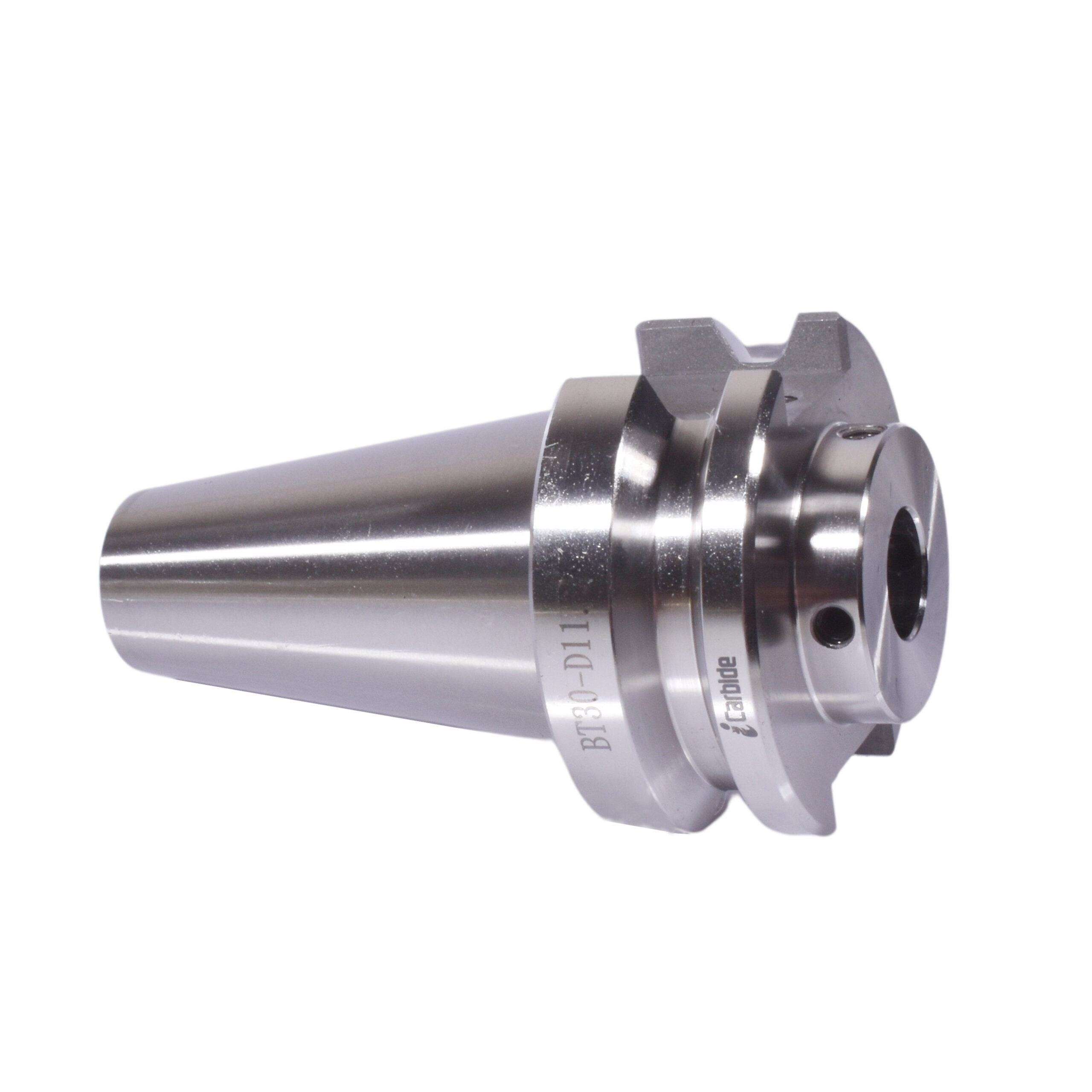

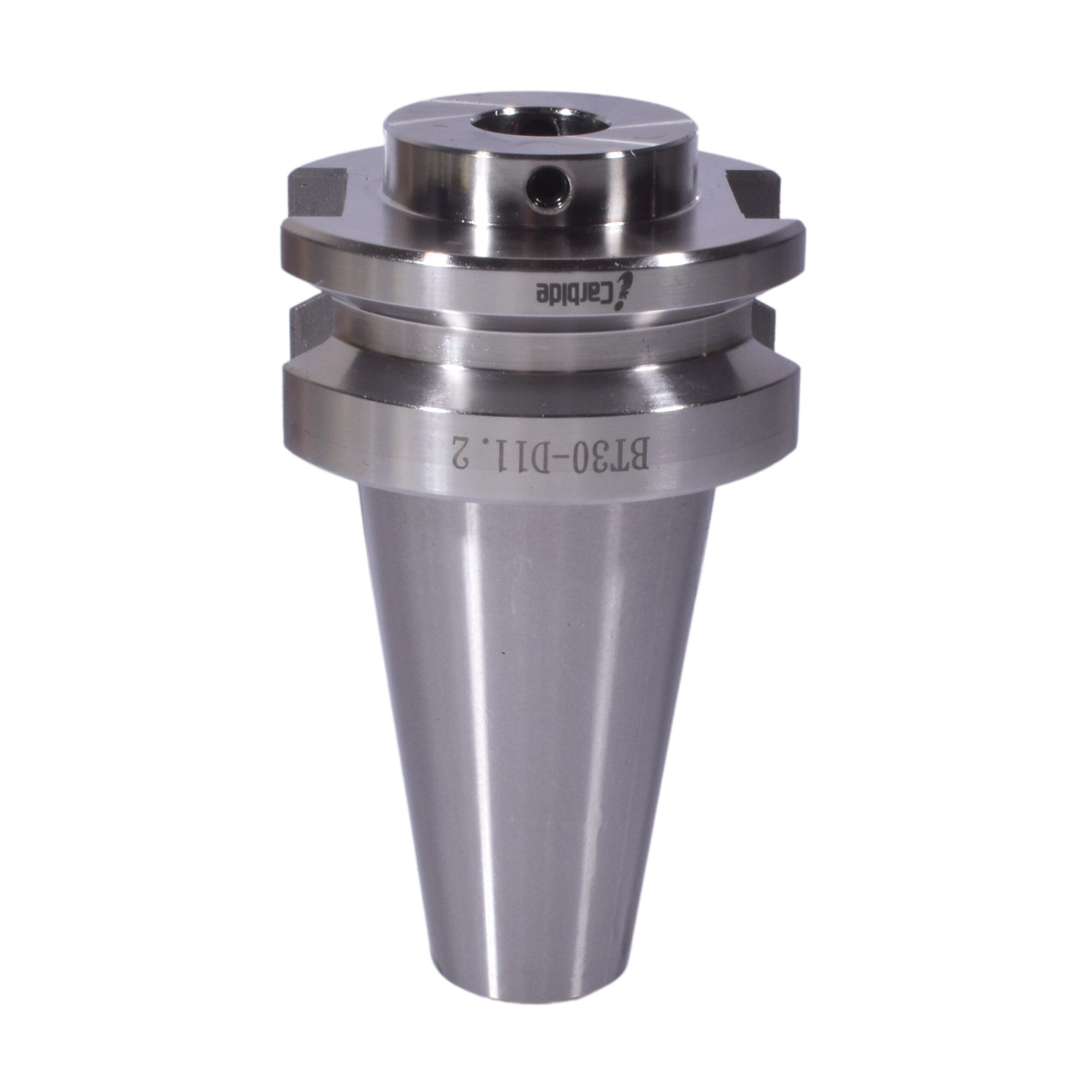

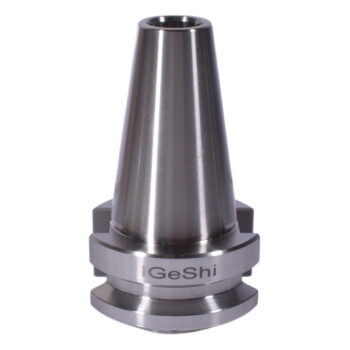

BT30 TOOL HOLDER OMP40 PROBE HOLDER GAGE CALIBRATION TOOL

In Stock

SKU: BT30OMP40

$109.99

BT30 TOOL HOLDER OMP60 PROBE HOLDER GAGE CALIBRATION TOOL

Working for all BT30 spindle

All critical surface  by grind round

Qty
Compare

BT30 TOOL HOLDER OMP40 PROBE HOLDER GAGE CALIBRATION TOOL

MODEL BT30 PROBE HOLDER  NOSE DIAMETER 1.13″
HOLDER TYPE  PROBE HOLDER ARBOR DIAMETER 0.440″ x 0.8″ deep
FLANGE DIAMETER 1.85″ DRAWBAR THREAD M12x 1.75
SET SCREW M4 x0.7 (6pcs)  includded Gage Length 1.10″







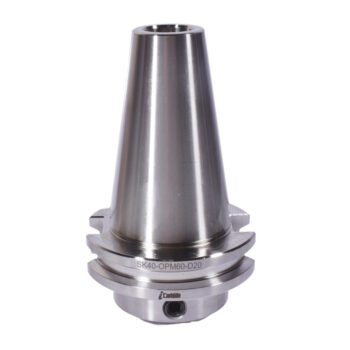

Similar probe tool holder available

ModelMounting HoleGauge lengthSet screwRear ThreadOrder No
BT30 -OMP4011.20/(0.44")1.0" (20MM)M4x0.7M12 x 1.75"IGSB-9016
BBT30 -OMP4011.20/(0.44")1.0" (20MM)M4x0.7M12 x 1.75"IGSB-9017
BT40 -OMP4011.20/(0.44")1.30" (30MM)M4x0.7M16 x 2.0"IGSB-9018
BB40-OMP4011.20/(0.44")1.30" (30MM)M4x0.7M16 x 2.0"IGSB-9019
BT40 -OMP6020.00/(0.790")1.35" (35mm)M8x1.25M16 x 2.0"IGSB-9020
BB40-OMP6020.00/(0.790")1.35" (35mm)M8x1.25M16 x 2.0"IGSB-9021
CAT40-OMP4011.20/(0.44")1.30" (30MM)M4x0.75/8-11"IGSB-9022
CAT40-OMP6020.00( 0.790")1.35" (35mm)M8x1.255/8-11"IGSB-9023
Dual Contact CAT40 OMP4011.20/(0.44")1.30" (30MM)M4x0.75/8-11"IGSB-9024
Dual Contact CAT40 OMP6020.00( 0.790")1.35" (35mm)M8x1.255/8-11"IGSB-9025
ISO20 OMP4011.20/(0.44")1.30" (30MM)M4x0.7M8x1.0IGSB-9026
SK40 -OMP4011.20/(0.44")1.30" (30MM)M4x0.7M16 x 2.0"IGSB-9027
SSK40-OMP6020.00/(0.44")1.30" (30MM)M4x0.7M16 x 2.0"IGSB-9028



Drawings & Parameters Table



CAT40 TAPER 8° TAPER D1 L1 FLANGE D
DRAWBAR THREAD CAT40 5/8-11″  UNC 1.75″ 2.69″ 2.50″



Weight 1.5 lbs
Dimensions 15 × 45 × 65 in
Measurement system

Inch (in)

Product Category

Probe Holder

Shank Type

BT30
