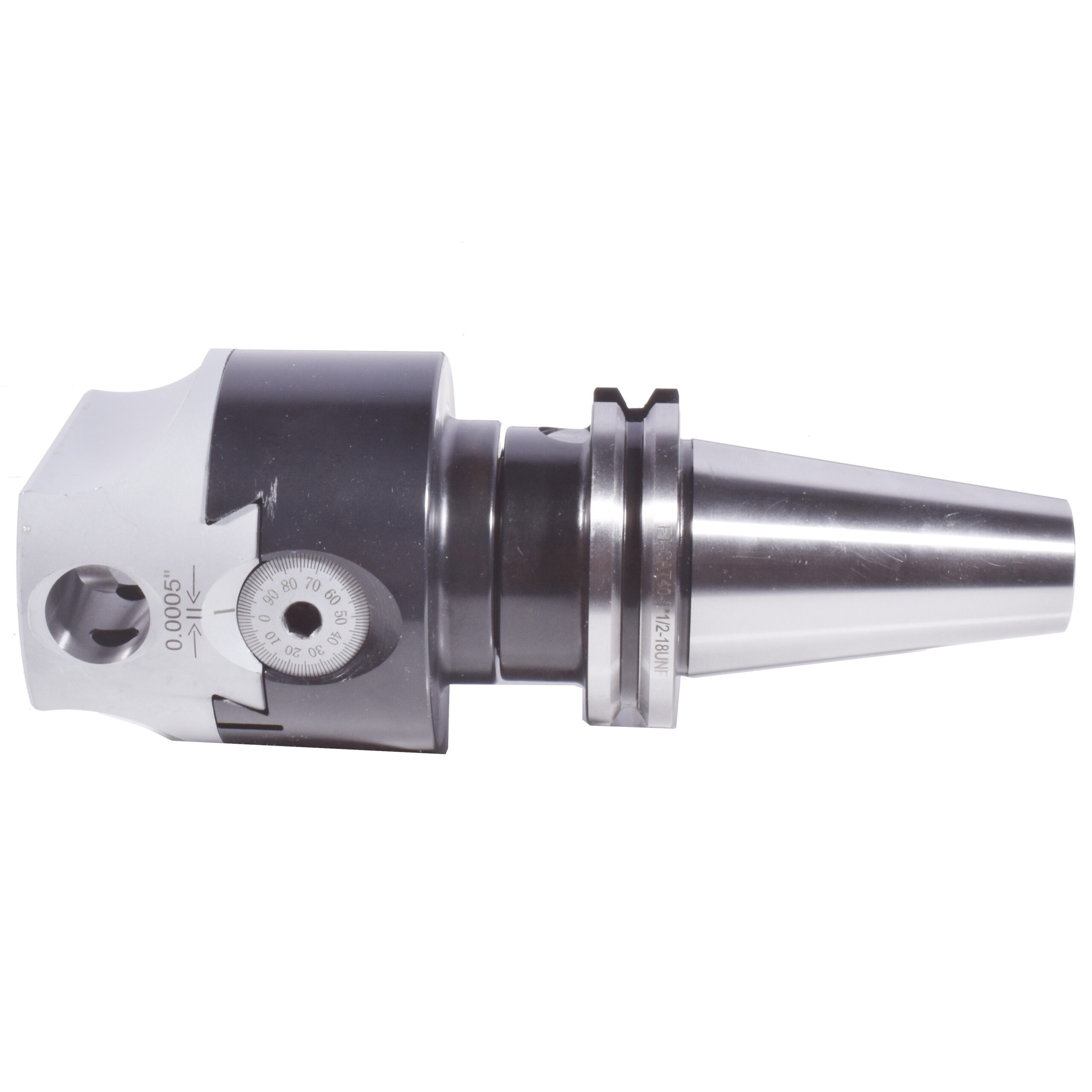

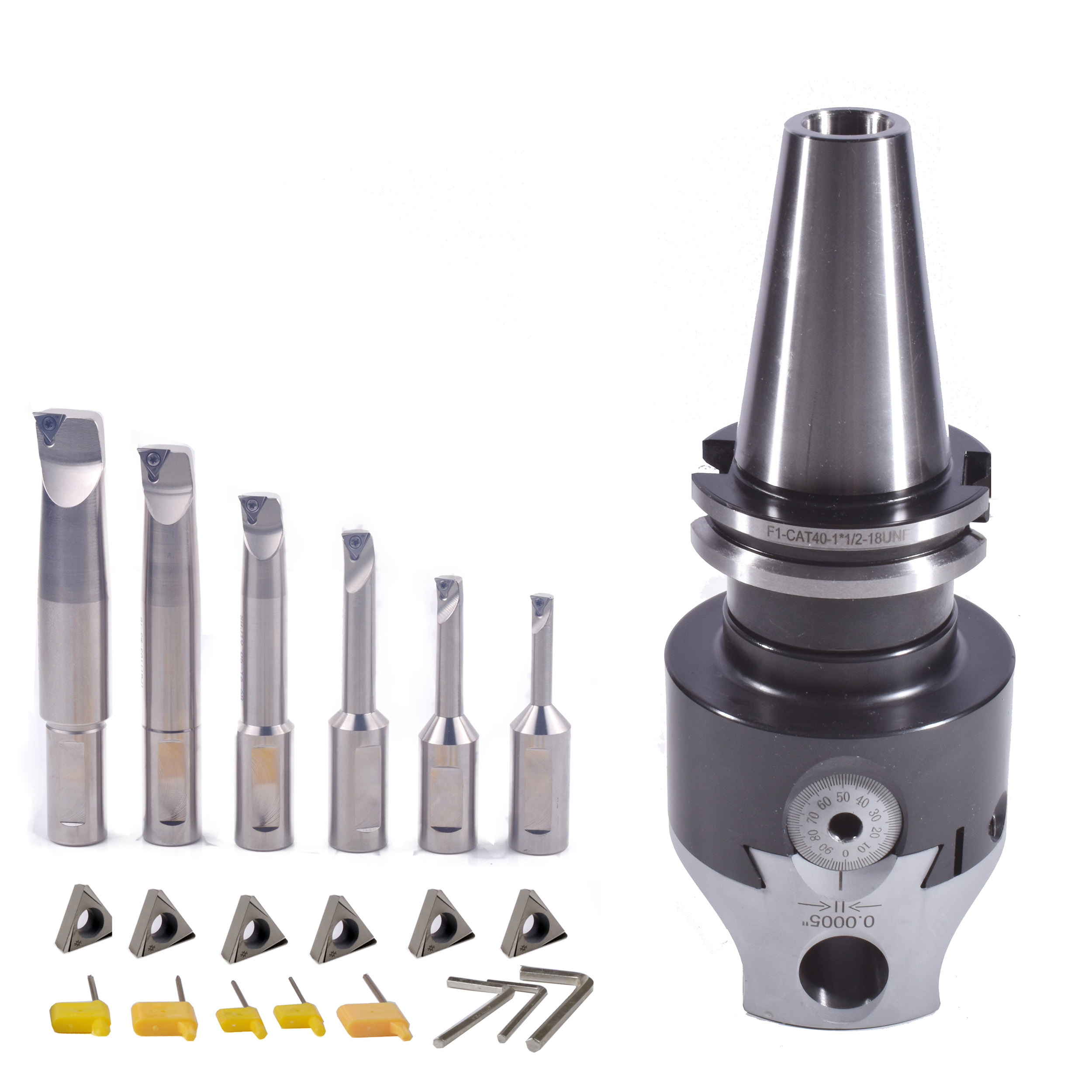

CAT40 3INCH BORING HEAD SET WITH 6PCS BORING BAR AND 6PCS BORING CARBIDE INSERTS (Copy)

In Stock

SKU: CAT40BH3INC

$169.99

CAT40  3INCH BORING HEAD SET WITH 6PCS BORING BAR AND 6PCS BORING CARBIDE INSERTS

Qty
Compare

CAT40 3INCH BORING HEAD SET WITH 6PCS BORING BAR AND 6PCS BORING CARBIDE INSERTS

MODEL CAT40  TOOL HOLDER  RUN OUT (TIR) 0.0002″
HOLDER TYPE BORING HEAD BORING DIAMETER 3″
SHANK TYPE CAT40 ARBOR 5/8-11  BORING HOLE ACCEPT 3/4

6PCS CARBIDE INSERTS ( 3TYPE  2pcs of each ) TBGT 06 ,TPGT 09 ,TPGT1103 …

MINI BORING:8MM(5/16)

MAX  BORING:100MM (6INCH)

6PCS BORING BAR

DESCRIPTION

INDEXABLE NO BORING RANG BORING DEPTH INSERTS BORING AP BORING FEEDmm/rev CUTTING SPEEDm/min WRENCH
BJ1208-32 8-12 32 TBGT0601** 0.05-0.20 0.05-0.010 100-200 T6
BJ1210-40 10 -13 40 TBGT0601** 0.07-0.25 0.05-0.010 100-200 T6
BJ1218-68 12 -17 52 TPGT0902** 0.07-0.25 0.05-0.015 100-200 T8
BJ1216-68 16-21 68 TPGT0902** 0.1-0.25 0.05-0.015 100-200 T8
BJ1220-83 20-130 83 TPGT1103** 0.05-0.2 0.05-0.015 100-300 T8
BJ1220-90 20-140 9- TPGT1103** 0.1-0.25 0.01-0.015 100-400 T8





                TPGT110303                                                            TPGT090204                                   TBBT060104

Weight 1.5 lbs
Dimensions 15 × 45 × 65 in
Measurement system

Inch (in)

Product Category

Boring Head Set

Shank Type

CAT40
