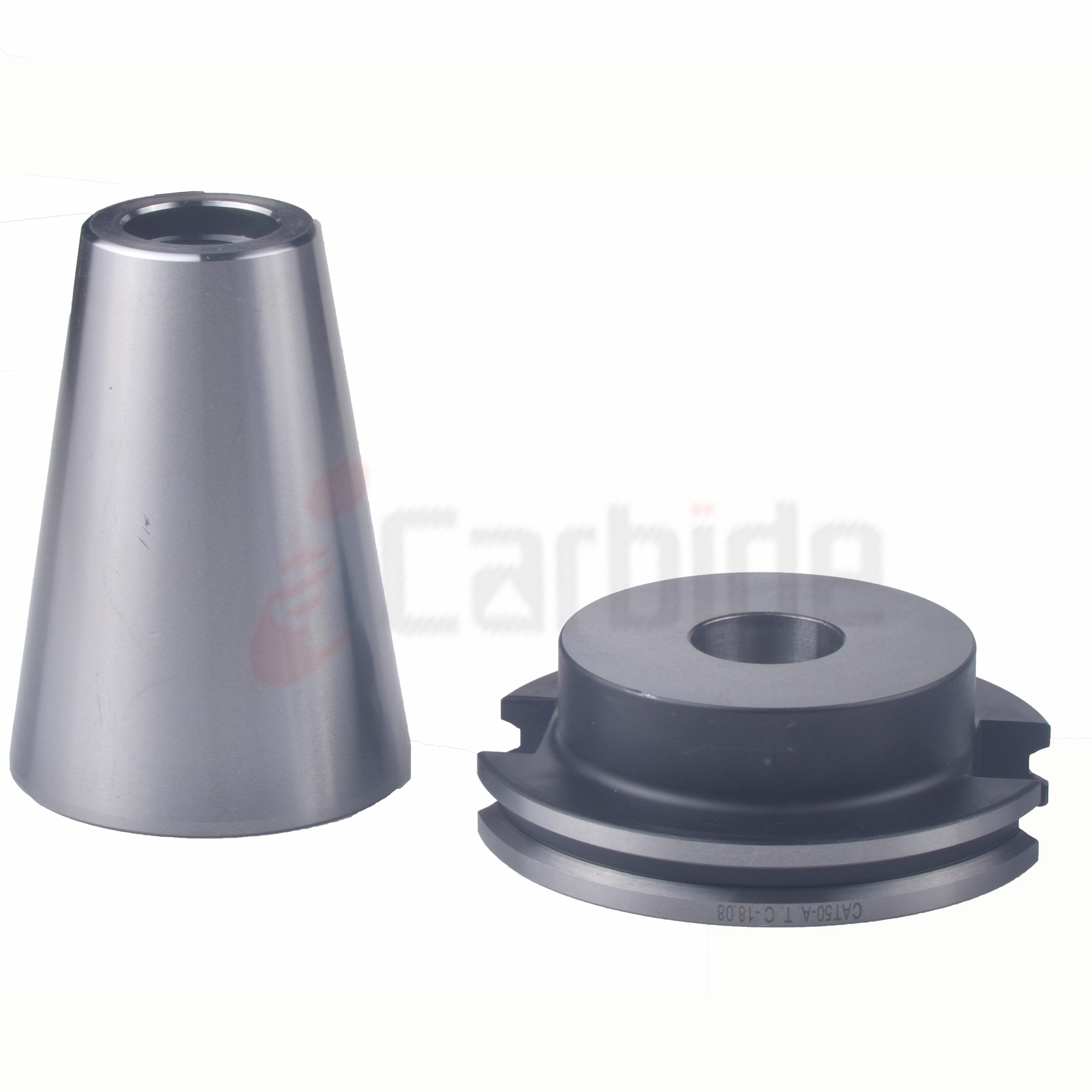

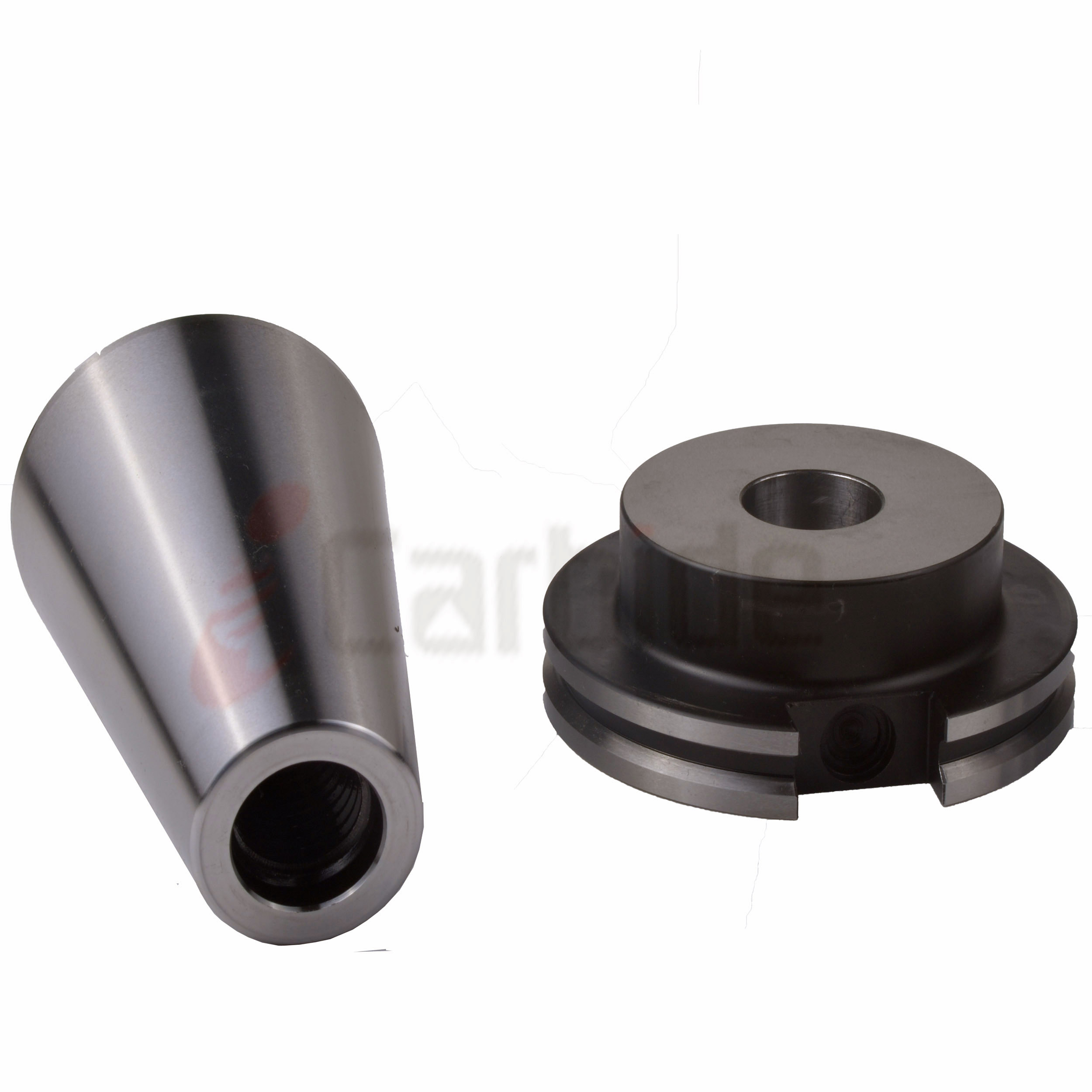

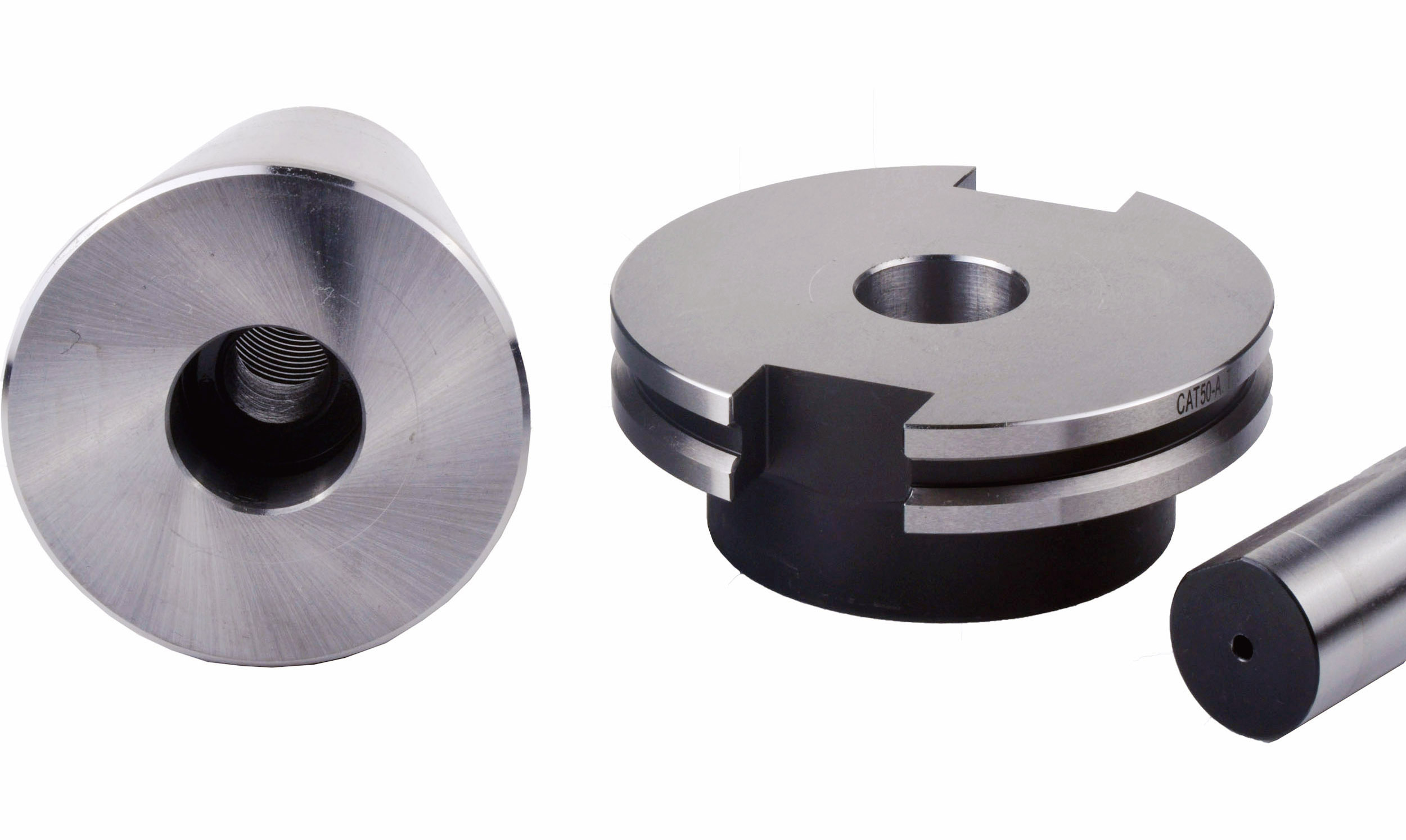

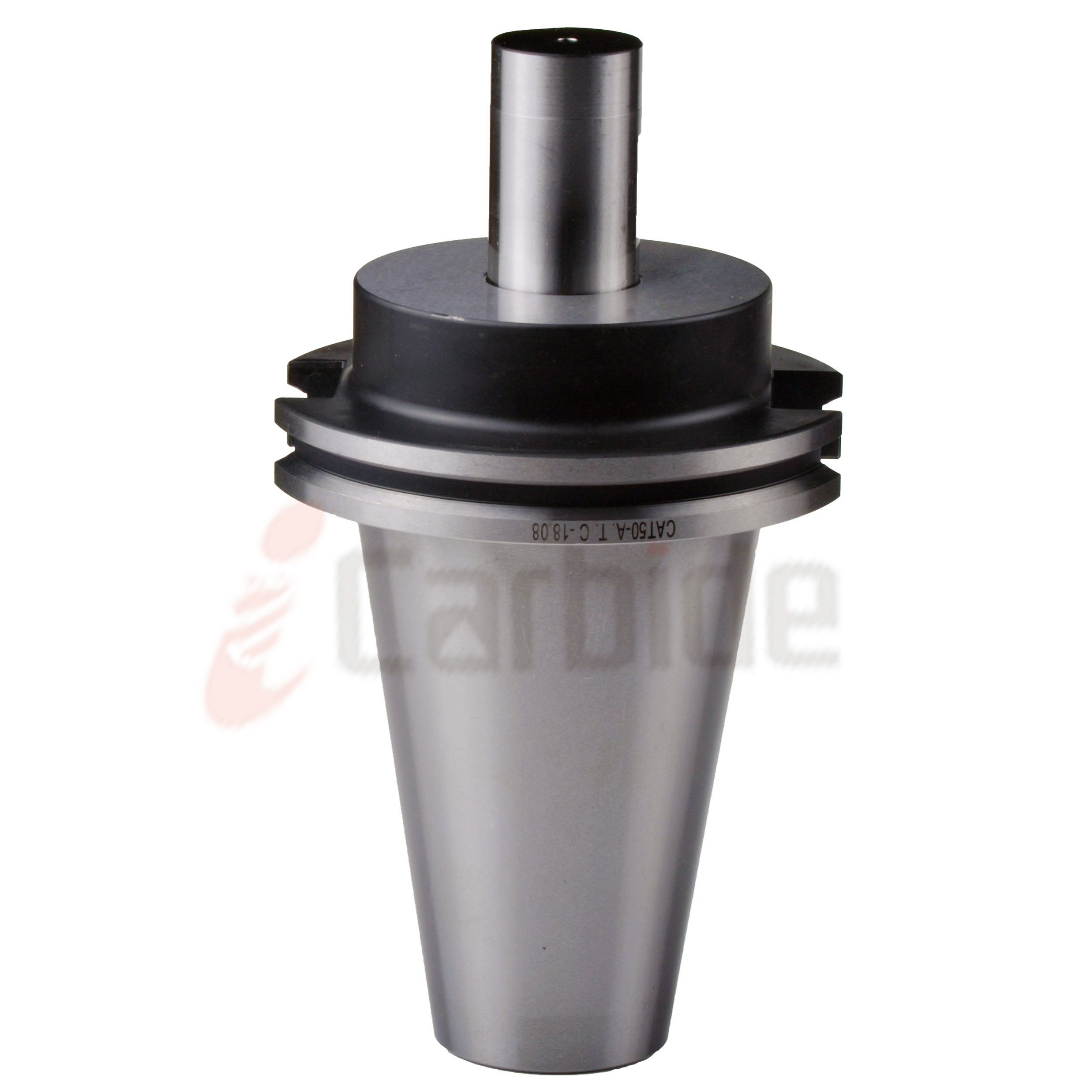

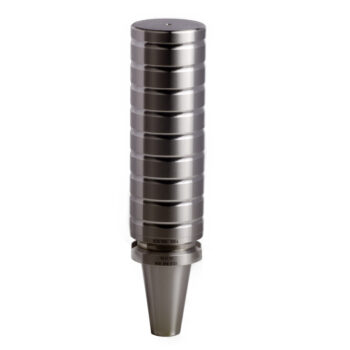

CAT40 ALIGNMENT GAGE TOOL HOLDER MADE IN USA
| MODEL | CAT40 ALIGNMENT | RUN OUT (TIR) | 0.0002″ |
| HOLDER TYPE | ALIGNMENT TOOL HOLDER | ARBOR DIAMETER | 1″ |
| SHANK TYPE | CAT40 | DRAWBAR THREAD | 5/8-11″ |
| BALANCE | NO | Gage Length | 2.5″ |
High Precision Runout: TIR 5μm or 0.0002
Automatically grinding outside arbor and er collet taper
Drawings & Parameters Table
| CAT40 TAPER | 8° | TAPER D1 | L1 | FLANGE D |
| DRAWBAR THREAD CAT40 | 5/8-11″ UNC | 1.75″ | 2.69″ | 2.50″ |
