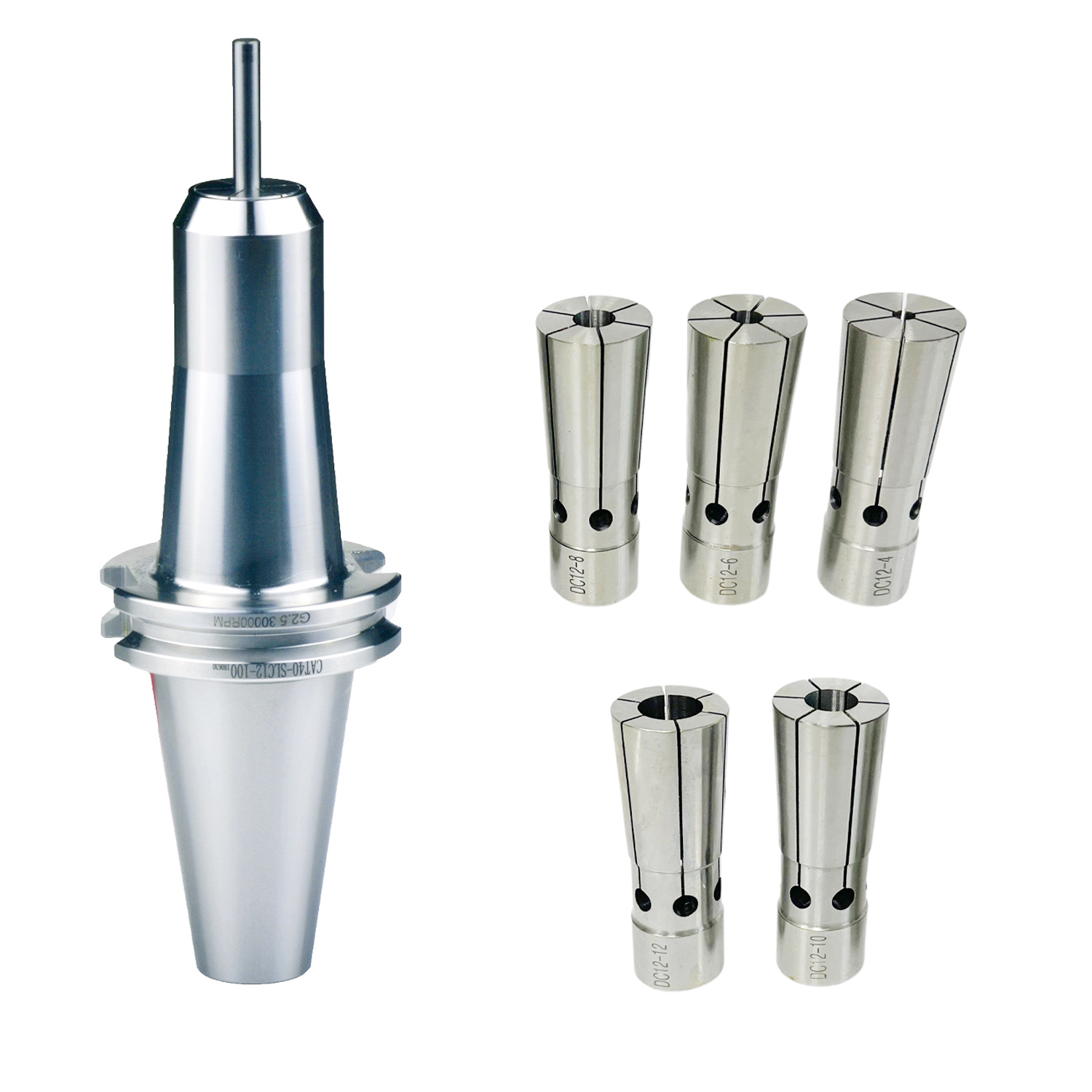

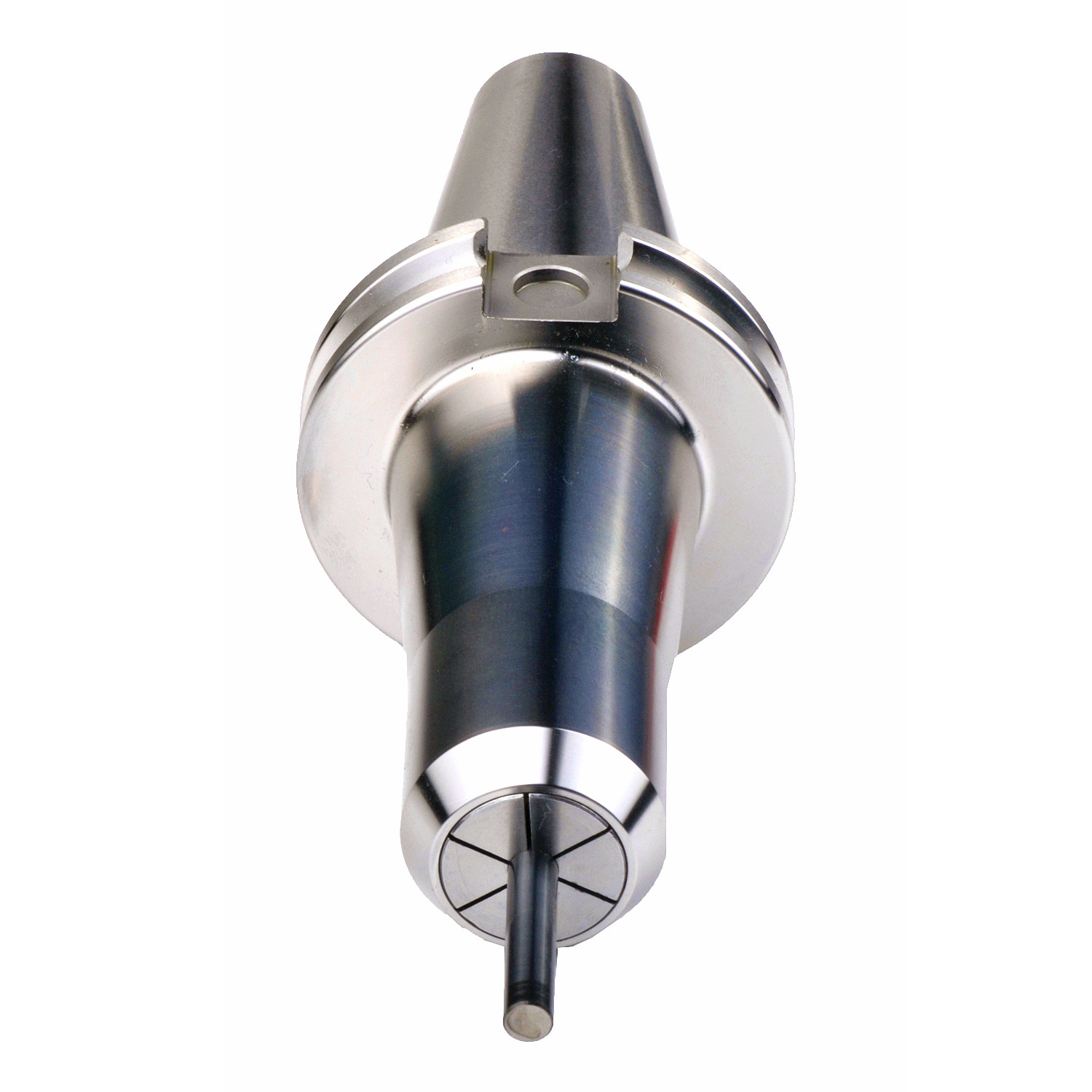

CAT40 SLIM FIT COLLET CHUCK TOOL HOLDER AND 5pcs SLM COLLET 4-12MM

In Stock

SKU: BCAT50ER16600-1

$69.99

For all CAT50 Spindle Machine Collet Chuck Tool Holder

High-Speed Cutting (G2.5 25000rpm) Balance Available

High Precision Runout: TIR  5μm or 0.00015 ”



Qty
Compare

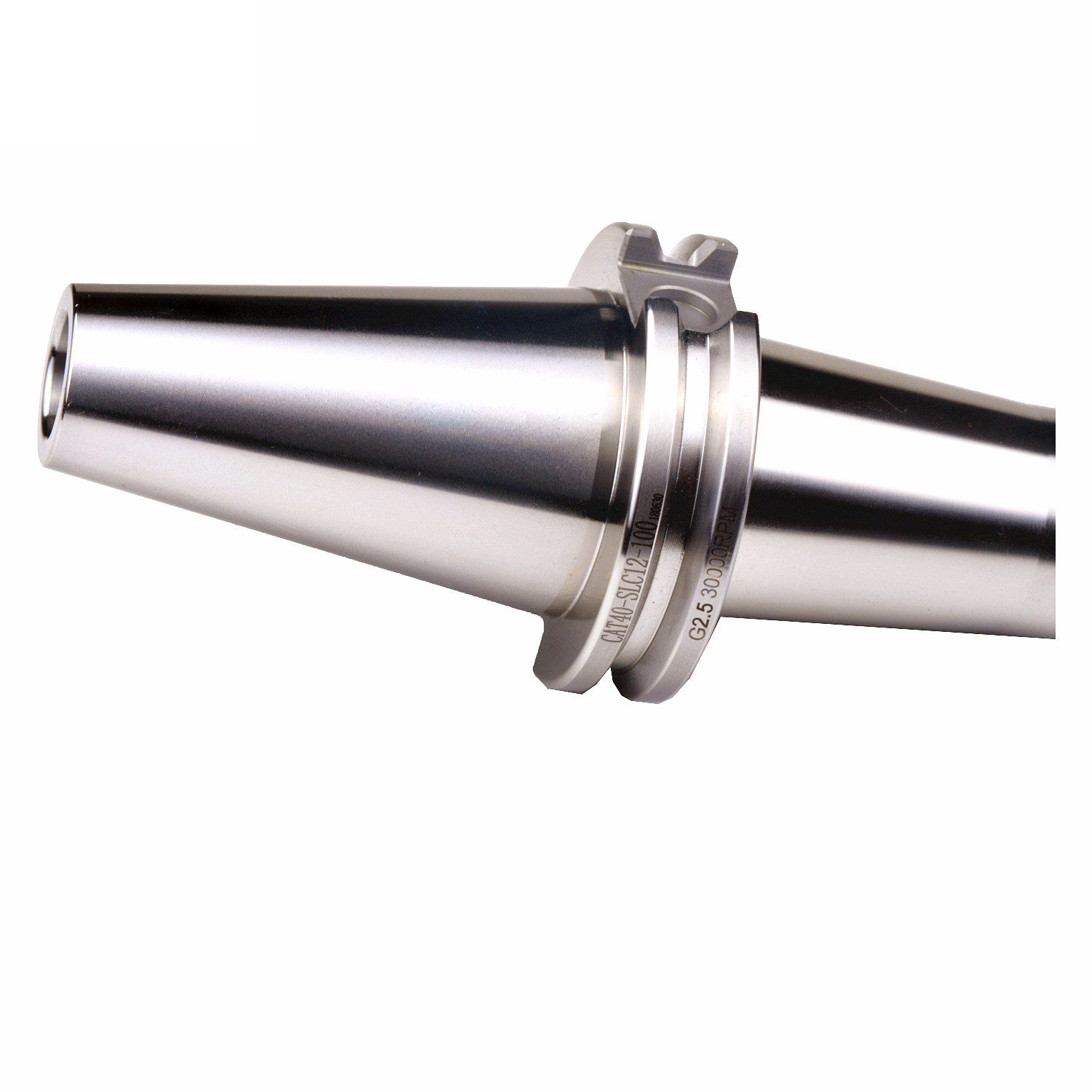

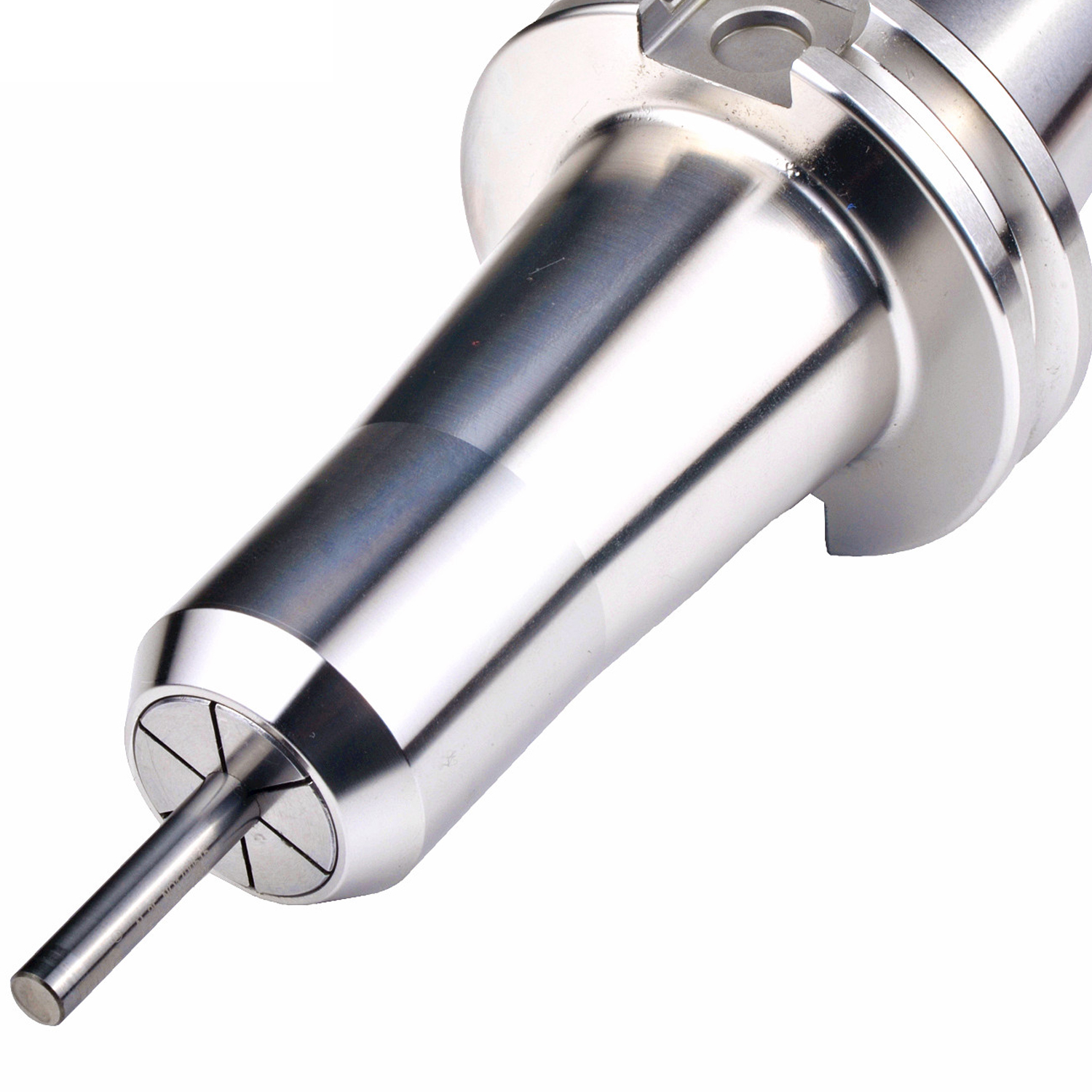

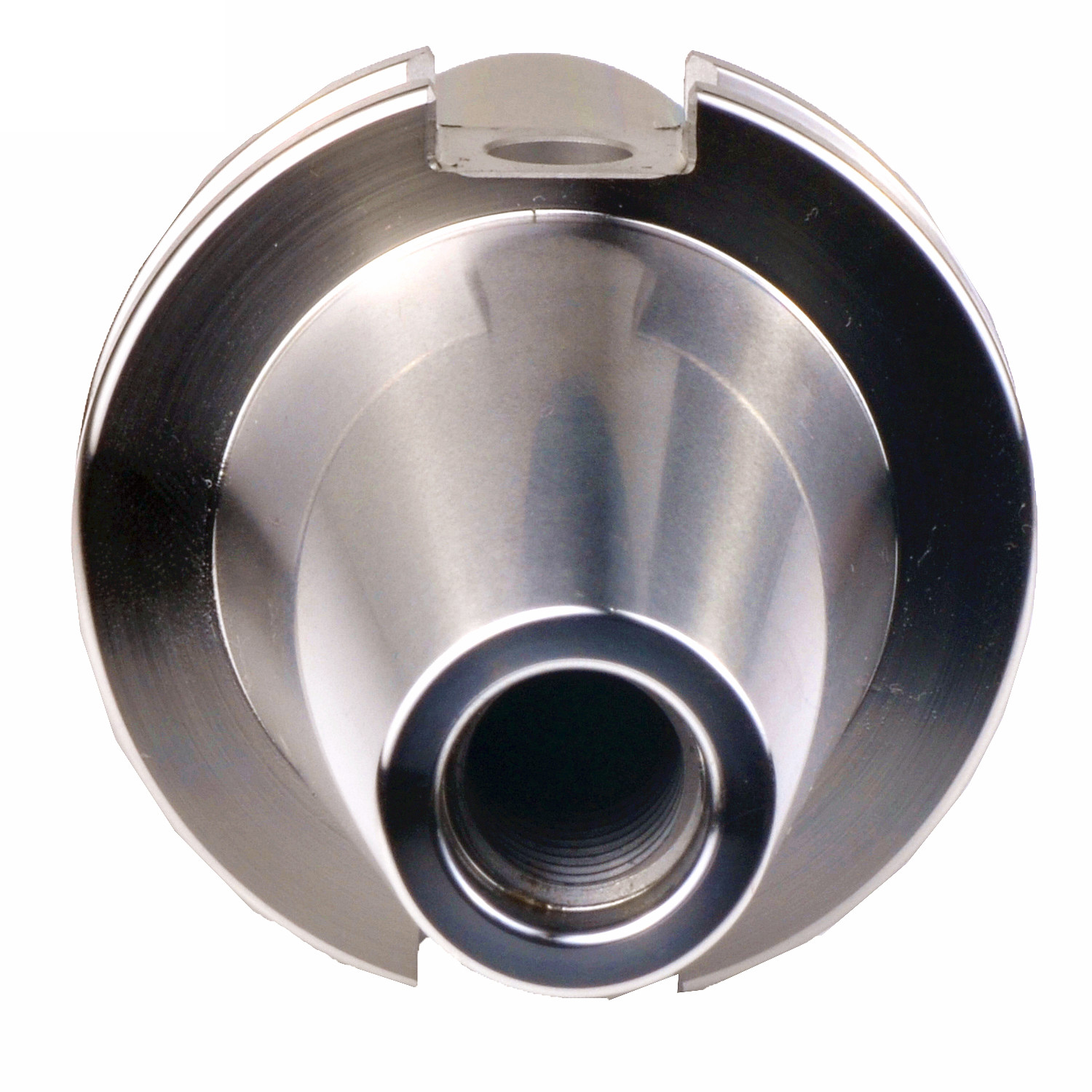

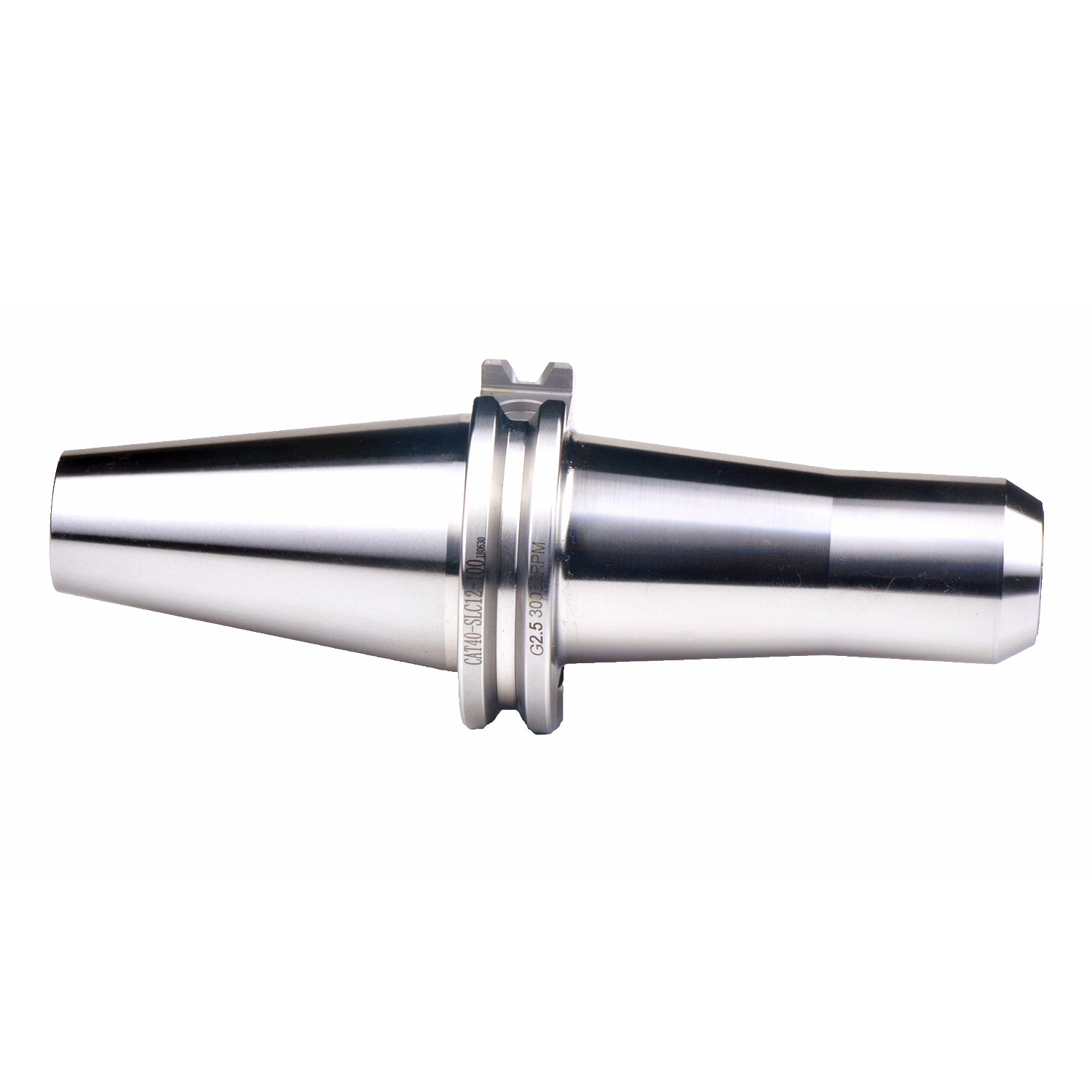

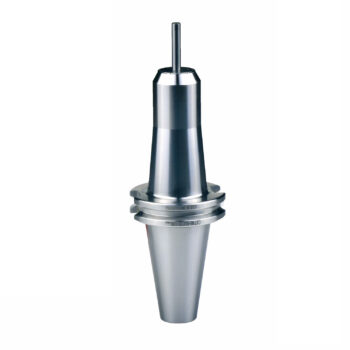

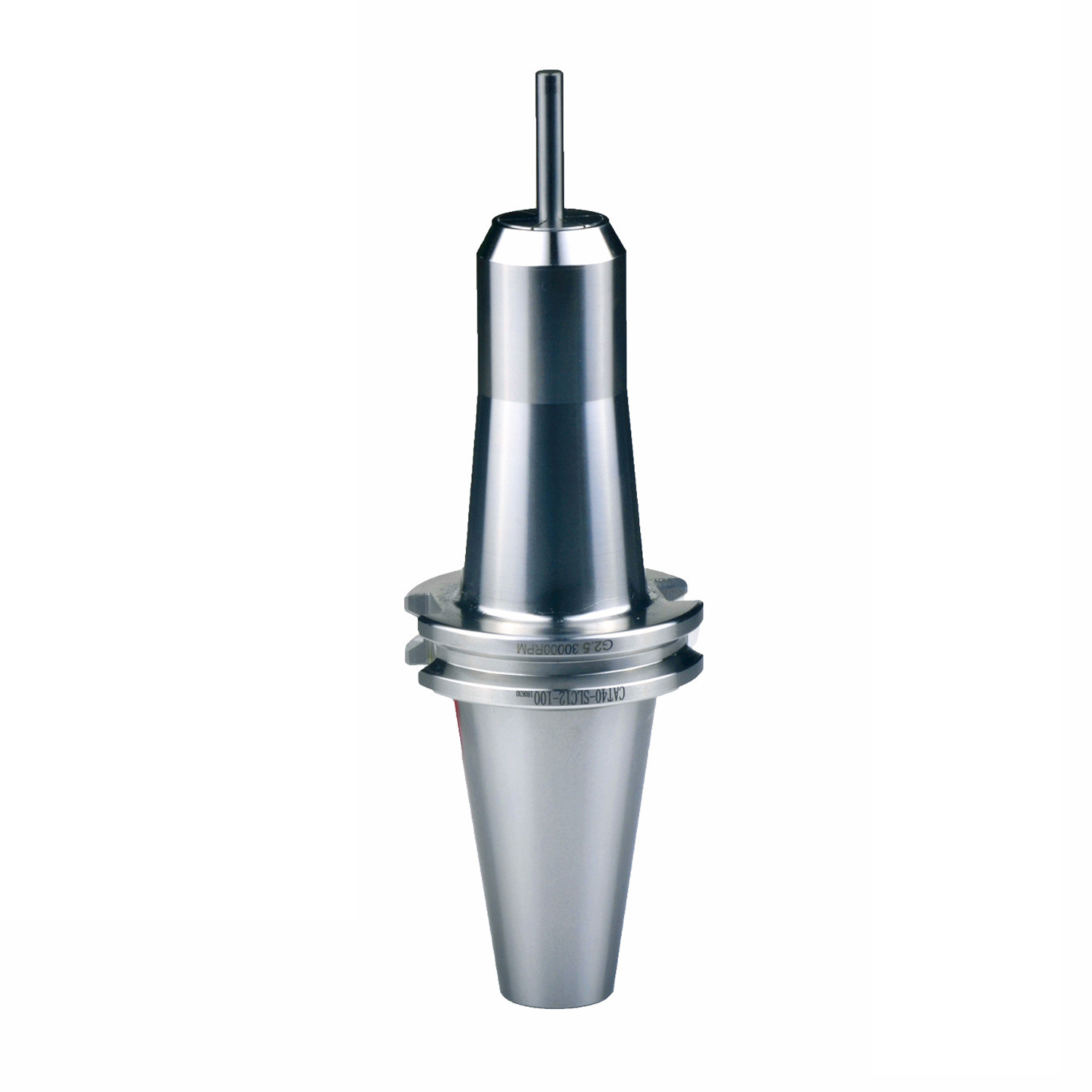

CAT40 SLIM FIT COLLET CHUCK TOOL HOLDER AND 5pcs SLM COLLET 4-12MM

MODEL CAT40 SLM12 4.0  RUN OUT (TIR) 0.0002″ NECK  DIAMETER D 1.4″
HOLDER TYPE SLIM COLLET CHUCK CLAMPING RANGE  3/32-1/2″ CLAMPING SIZE SLIM012
SHANK TYPE CAT40 DRAWBAR THREAD 5/8-11″ T thread M12
BALANCE G2.5 25000rpm Gage Length 4.0″ COOLANT YES





High-Speed Cutting (G2.5 25000rpm) Balance

High Precision Runout: TIR  5μm or 0.00015

Hardened:  surface HRC58 inside is HRC45

Protection: oxide black

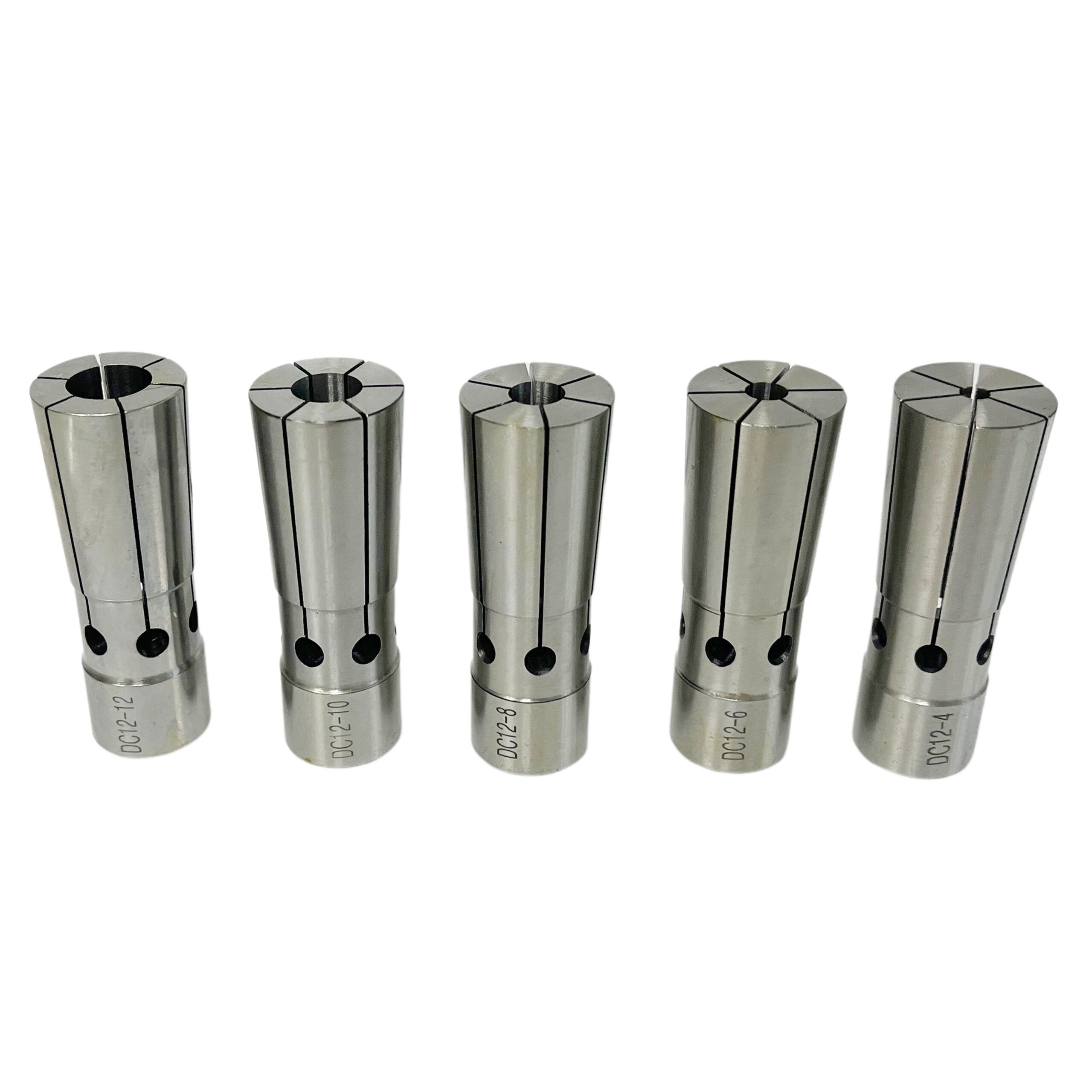

5pcs collet include :4,6,8,10,12 mm





Drawings & Parameters Table



CAT50 TAPER 8° TAPER D1 L1 FLANGE D
DRAWBAR THREAD CAT40 5/8-11 UNC 2.75″ 6″ 3.8″

Related Tool Holder

TYPEL1d1TClamping RangeWeightORDER NO
CAT40 SLM06 3.030.55M6x1.0P0.125-0.251IGSL7200
CAT40 SLM06 4.040.55M6x1.0P0.125-0.251.2IGSL7201
CAT40 SLM06 6.060.55M6x1.0P0.125-0.251.3IGSL7202
CAT40 SLM08 4.040.787M8x1.25P0.125-0.31251.1IGSL7203
CAT40 SLM08 6.060.787M8x1.25P0.125-0.31251.3IGSL7204
CAT40 SLM012 2.52.51.02M10x1.5p0.125-0.51.2IGSL7205
CAT40 SLM012 4.041.02M10x1.5p0.125-0.51.4IGSL7206
CAT40 SLM012 6.061.02M10x1.5p0.125-0.51.6IGSL7207
CAT40 SLM020 3.031.37M12x1.750.125-0.751.45IGSL7208
CAT40 SLM020 5.051.37M12x1.750.125-0.751.5IGSL7209
CAT40 SLM020 6.061.37M12x1.750.125-0.751.6IGSL7210
Weight 2.5 lbs
Dimensions 15 × 45 × 65 in
Measurement system

Metric (mm)

Product Category

Collet Chuck Tool Holder

Shank Type

CAT40

Collet Series

SLIM
