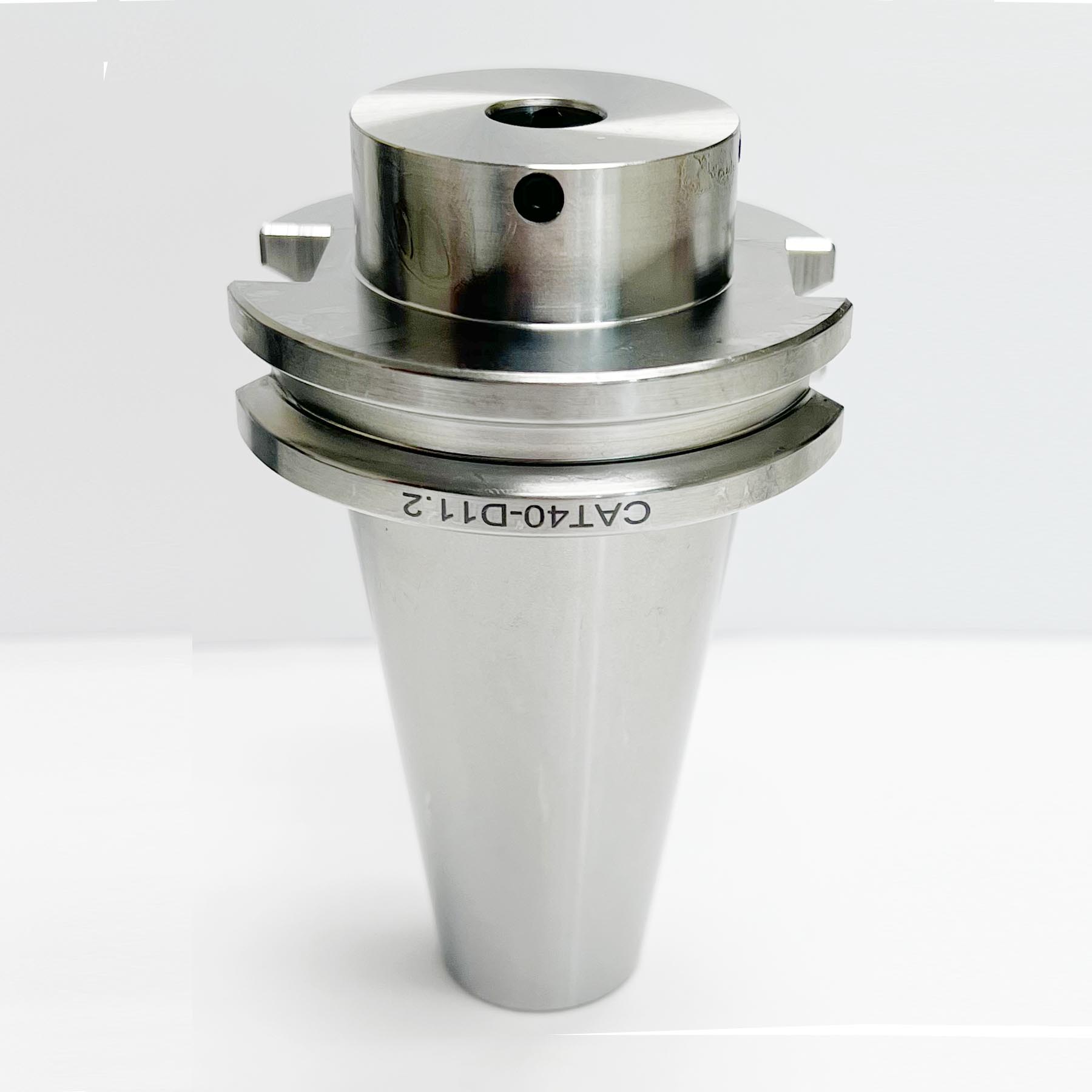

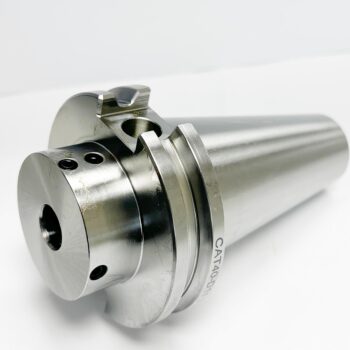

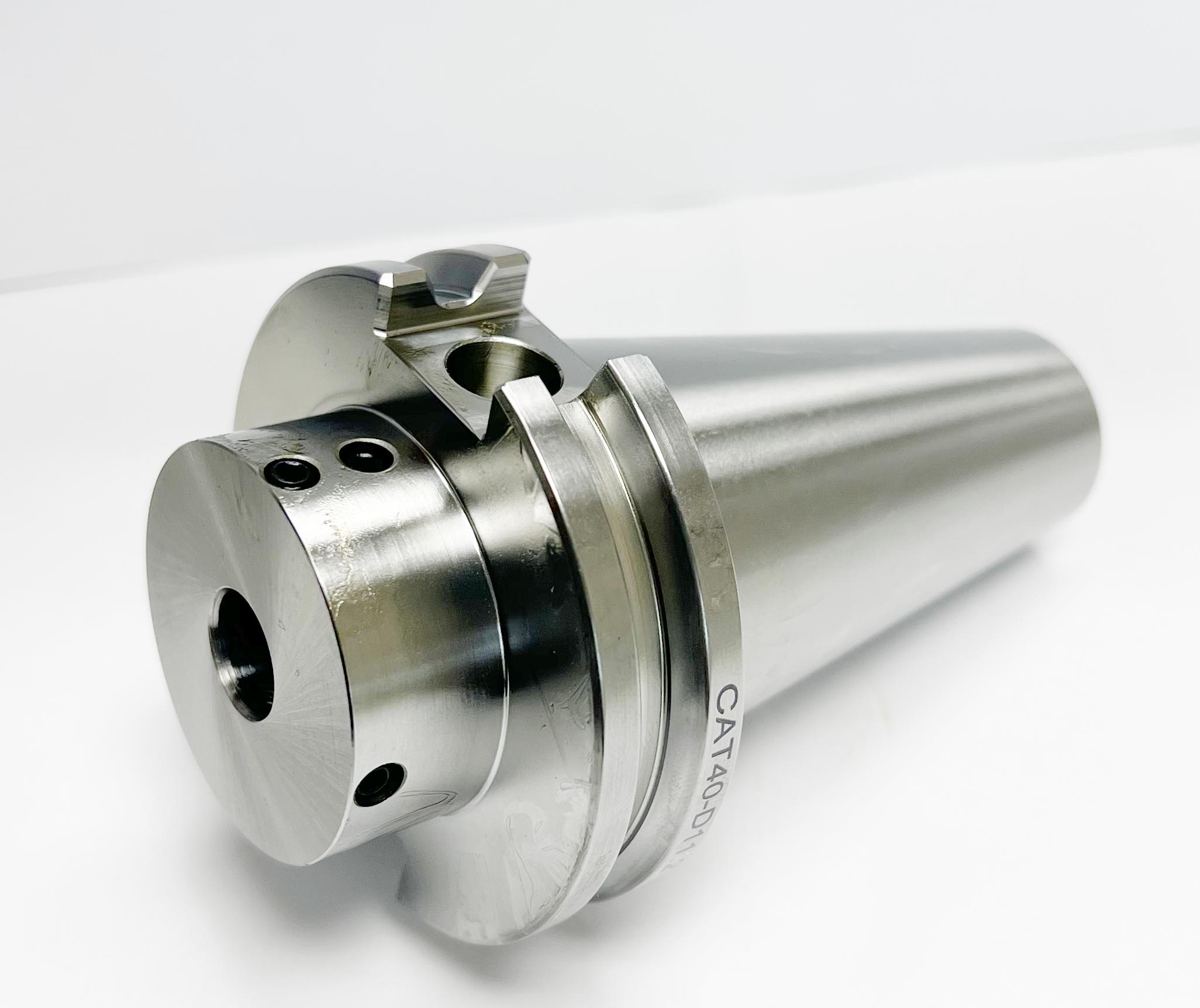

CAT40 TOOL HOLDER OMP40 PROBE HOLDER GAGE CALIBRATION TOOL
| MODEL | CAT40 PROBE HOLDER | NOSE DIAMETER | 1.03″ |
| HOLDER TYPE | PROBE HOLDER | ARBOR DIAMETER | 0.440″ x 1.0″ deep |
| HUB DIAMETER | 0.98×0.170 | DRAWBAR THREAD | 5/8-11 |
| SET SCREW | M4 x 4 include | Gage Length | 1.25″ |
Similar probe tool holder available
| Model | Mounting Hole | Gauge length | Set screw | Rear Thread | Order No |
|---|---|---|---|---|---|
| BT30 -OMP40 | 11.20/(0.44") | 1.0" (20MM) | M4x0.7 | M12 x 1.75" | IGSB-9016 |
| BBT30 -OMP40 | 11.20/(0.44") | 1.0" (20MM) | M4x0.7 | M12 x 1.75" | IGSB-9017 |
| BT40 -OMP40 | 11.20/(0.44") | 1.30" (30MM) | M4x0.7 | M16 x 2.0" | IGSB-9018 |
| BB40-OMP40 | 11.20/(0.44") | 1.30" (30MM) | M4x0.7 | M16 x 2.0" | IGSB-9019 |
| BT40 -OMP60 | 20.00/(0.790") | 1.35" (35mm) | M8x1.25 | M16 x 2.0" | IGSB-9020 |
| BB40-OMP60 | 20.00/(0.790") | 1.35" (35mm) | M8x1.25 | M16 x 2.0" | IGSB-9021 |
| CAT40-OMP40 | 11.20/(0.44") | 1.30" (30MM) | M4x0.7 | 5/8-11" | IGSB-9022 |
| CAT40-OMP60 | 20.00( 0.790") | 1.35" (35mm) | M8x1.25 | 5/8-11" | IGSB-9023 |
| Dual Contact CAT40 OMP40 | 11.20/(0.44") | 1.30" (30MM) | M4x0.7 | 5/8-11" | IGSB-9024 |
| Dual Contact CAT40 OMP60 | 20.00( 0.790") | 1.35" (35mm) | M8x1.25 | 5/8-11" | IGSB-9025 |
| ISO20 OMP40 | 11.20/(0.44") | 1.30" (30MM) | M4x0.7 | M8x1.0 | IGSB-9026 |
| SK40 -OMP40 | 11.20/(0.44") | 1.30" (30MM) | M4x0.7 | M16 x 2.0" | IGSB-9027 |
| SSK40-OMP60 | 20.00/(0.44") | 1.30" (30MM) | M4x0.7 | M16 x 2.0" | IGSB-9028 |
Automatically grinding outside arbor and er collet taper

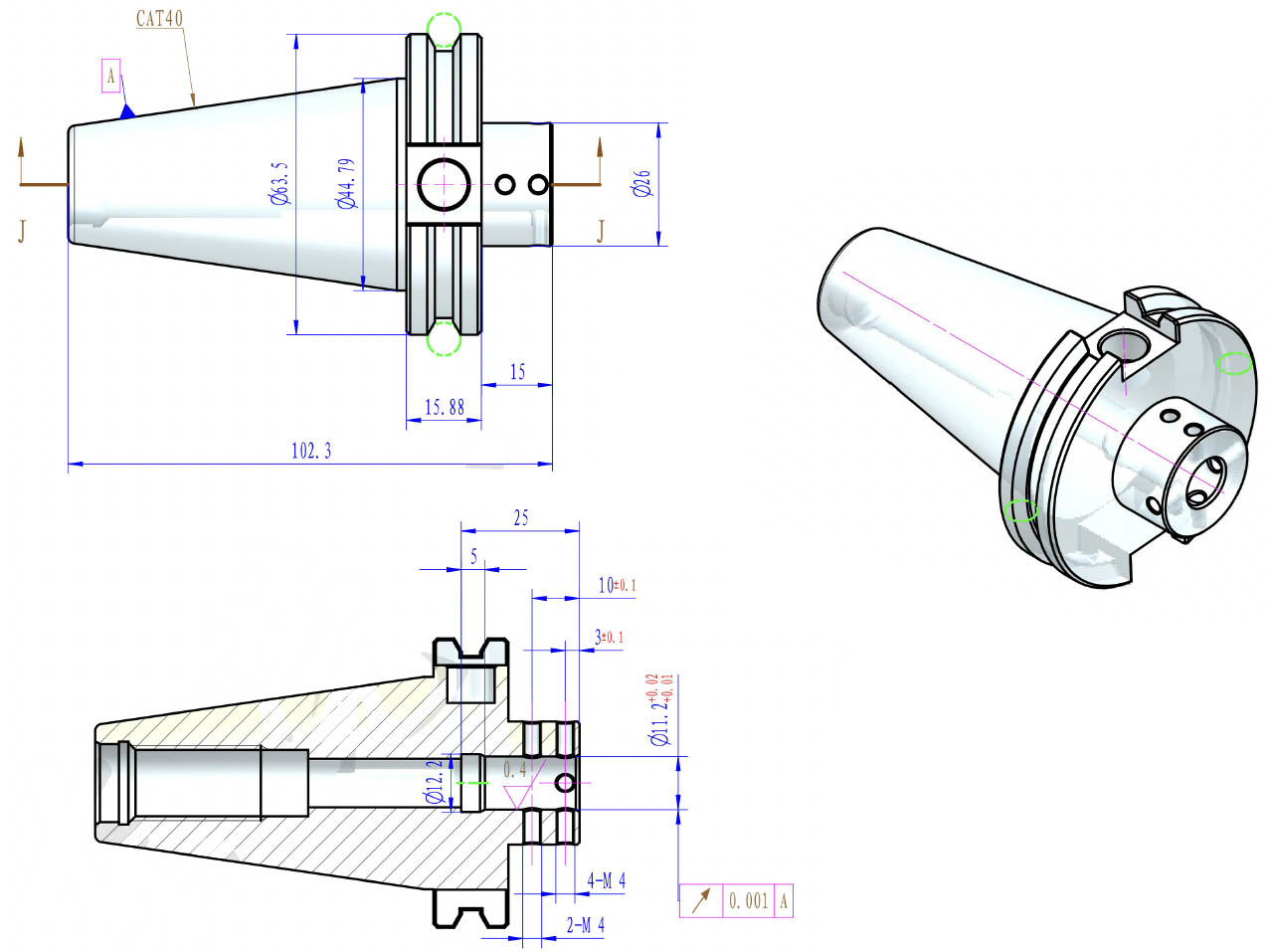

Drawings & Parameters Table
| CAT40 TAPER | 8° | TAPER D1 | L1 | FLANGE D |
| DRAWBAR THREAD CAT40 | 5/8-11″ UNC | 1.75″ | 2.69″ | 2.50″ |
