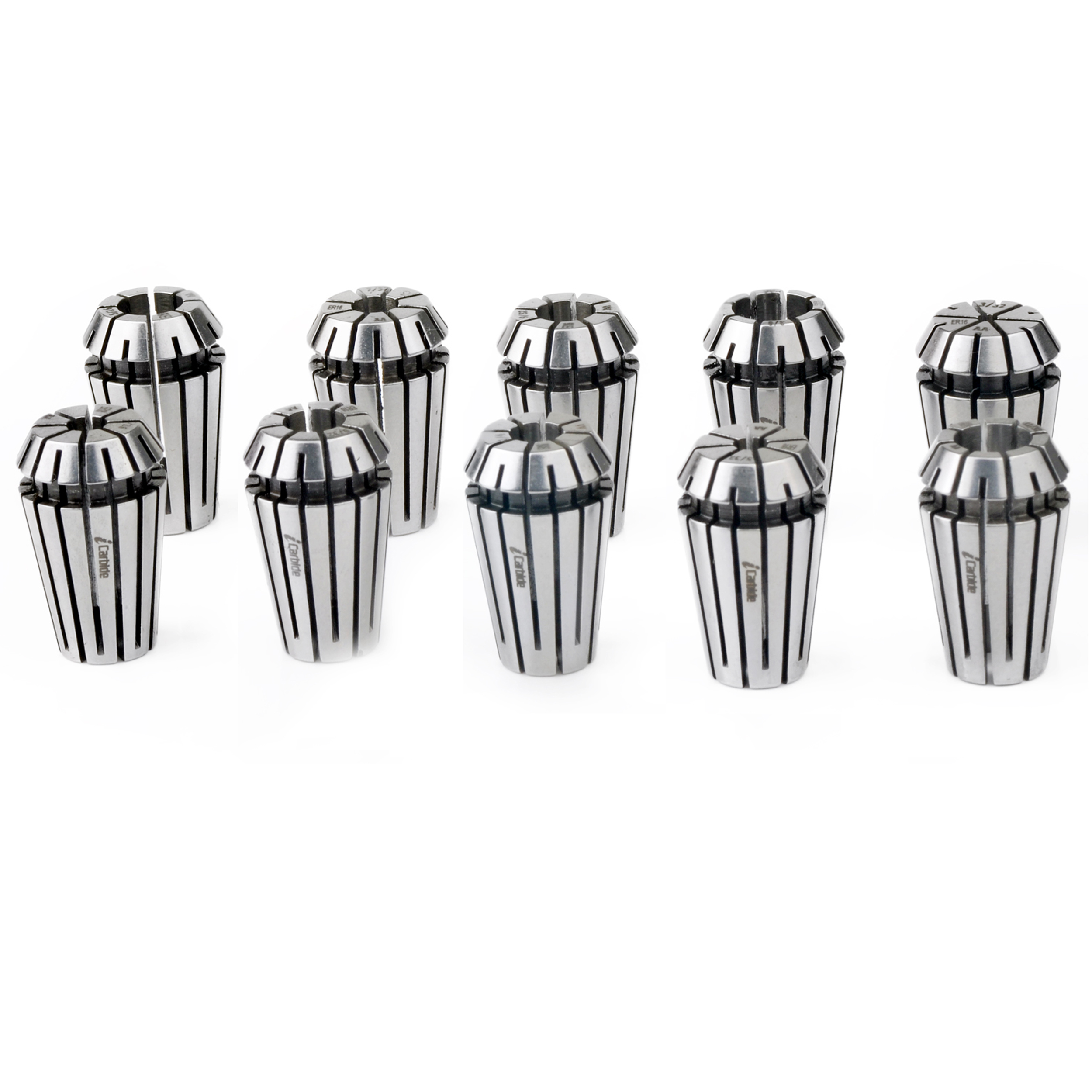

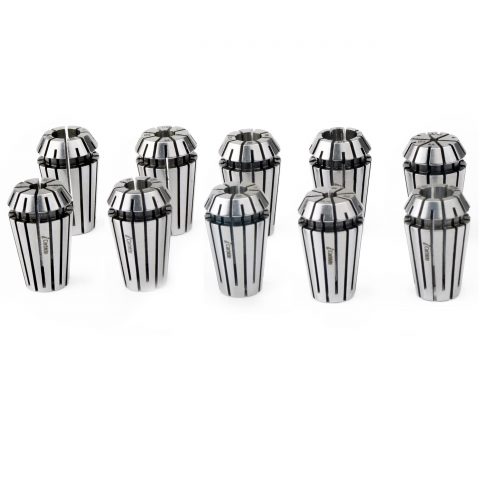

High Precision 10pcs ER16 Collet set 3/32-3/8“ Run Out 5μm/0.0002″

In Stock

SKU: E16001

$37.99

ER16 collet set (10pcs )

Finishing & Rough Cutting: High precision run out saving your cost-effective

Precision:High Precision Runout: TIR 0.005μm or 0.00015

Hardened:Outside: HRC48  Inside: HRC32

Size includes: 1/4,1/8,3/8,3/16,3/32,5/32,5/16,11/32,9/32,7/32

Included Shipping to worldwide

Qty
Compare

I. Characters & Features

Use:
For all DIN6499 standard tool holder in ER16 Collets

Finishing & Rough Cutting:

High precision run out saving your cost-effective

Precision:

High Precision Runout: TIR 5μm or 0.0002

Hardened:

Outside: HRC48  Inside: HRC32

Size includes:

1/4,1/8,3/8,3/16,3/32,5/32,5/16,11/32,9/32,7/32



A. Drawings & Parameters Table



B. Select & buy our tool

Order NODLClamping Ф mmRun OutSlotPrice
ICER110111.5181≤ 10μm169.99
ICER110211.5181.5≤ 10μm169.99
ICER110311.5182≤ 10μm167.99
ICER110411.5182.5≤ 5μm167.99
ICER110511.5183≤ 5μm167.99
ICER110611.5183.5≤ 5μm167.99
ICER110711.5184≤ 5μm167.99
ICER110811.5184.5≤ 5μm167.99
ICER110911.5185≤ 5μm167.99
ICER111011.5185.5≤ 5μm167.99
ICER111111.5186≤ 5μm167.99
ICER111211.5186.5≤ 5μm167.99
ICER111311.5187≤ 5μm167.99
ICER16011727.51≤ 10μm169.99
ICER16021727.52≤ 5μm169.99
ICER16031727.53≤ 5μm166.99
ICER16041727.54≤ 5μm166.99
ICER16051727.55≤ 5μm166.99
ICER16061727.56≤ 5μm166.99
ICER16071727.57≤ 5μm166.99
ICER16081727.58≤ 5μm166.99
ICER16091727.59≤ 5μm166.99
ICER16101727.510≤ 5μm166.99
ICER20012131.51≤ 10μm169.99
ICER20022131.52≤ 10μm169.99
ICER20032131.53≤ 5μm166.99
ICER20042131.54≤ 5μm166.99
ICER20052131.55≤ 5μm166.99
ICER20062131.56≤ 5μm166.99
ICER20072131.57≤ 5μm166.99
ICER20082131.58≤ 5μm166.99
ICER20092131.59≤ 5μm166.99
ICER20102131.510≤ 5μm166.99
ICER20112131.511≤ 5μm166.99
ICER20122131.512≤ 5μm166.99
ICER20132131.513≤ 5μm166.99
ICER250126341≤ 5μm1612.99
ICER250226342≤ 5μm1612.99
ICER250326343≤ 5μm168.99
ICER250426344≤ 5μm168.99
ICER250526345≤ 5μm168.99
ICER250626346≤ 5μm168.99
ICER250726347≤ 5μm168.99
ICER250826348≤ 5μm168.99
ICER250926349≤ 5μm168.99
ICER2510263410≤ 5μm168.99
ICER2511263411≤ 5μm168.99
ICER2512263412≤ 5μm168.99
ICER2513263413≤ 5μm168.99
ICER2514263414≤ 5μm168.99
ICER2515263415≤ 5μm168.99
ICER2516263416≤ 5μm168.99
ICER320133402≤ 5μm1613.99
ICER320233403≤ 5μm1613.99
ICER320333404≤ 5μm169.99
ICER320433405≤ 5μm169.99
ICER320533406≤ 5μm169.99
ICER320633407≤ 5μm169.99
ICER320733408≤ 5μm169.99
ICER320833409≤ 5μm169.99
ICER3209334010≤ 5μm169.99
ICER3210334011≤ 5μm169.99
ICER3211334012≤ 5μm169.99
ICER3212334013≤ 5μm169.99
ICER3213334014≤ 5μm169.99
ICER3214334015≤ 5μm169.99
ICER3215334016≤ 5μm169.99
ICER3216334017≤ 5μm169.99
ICER3217334018≤ 5μm169.99
ICER3218334019≤ 5μm169.99
ICER3219334020≤ 5μm169.99
ICER400141463≤ 5μm1614.99
ICER400241464≤ 5μm1614.99
ICER400341465≤ 5μm1614.99
ICER400441466≤ 5μm1614.99
ICER400541467≤ 5μm1614.99
ICER400641468≤ 5μm1614.99
ICER400741469≤ 5μm1614.99
ICER4008414610≤ 5μm1614.99
ICER4009414611≤ 5μm1614.99
ICER4010414612≤ 5μm1614.99
ICER4011414613≤ 5μm1614.99
ICER4012414614≤ 5μm1614.99
ICER4013414615≤ 5μm1614.99
ICER4014414616≤ 5μm1614.99
ICER4015414617≤ 5μm1614.99
ICER4016414618≤ 5μm1614.99
ICER4017414619≤ 5μm1614.99
ICER4018414620≤ 5μm1614.99
ICER4019414621≤ 5μm1614.99
ICER4020414622≤ 5μm1614.99
ICER4021414623≤ 5μm1614.99
ICER4022414624≤ 5μm1614.99
ICER4023414625≤ 5μm1614.99
ICER4024414626≤ 5μm1614.99

C. Quality Control

E. QA Processing

D. Material Application

Japanese JIS standard SUJ2 high carbon chromium bearing steel, corresponding to the national
standard GCr15, SUJ2 high carbon chromium bearing steel, can be fully hardened, the hardness
can reach HRC58-61, has the wear resistance of the bearing, also strengthens the rigidity,
workability Good, and can be directly processed and shaped, using mold times 2-3 times higher
than SKD-61 (HRC52) full hardware. During quenching and tempering, the size does not change much,
and fatigue resistance is quite good.

E. Send Inquiry to Us for free

We will, as always, send samples to the consulting clients to ensure high-quality performance and reasonable prices. We focus on CNC Cutting tools & Tool System etc, provide the best tool for clients of different types of operations.

Please no, hesitate to send an inquiry to us!

Weight 1.5 lbs
Dimensions 15 × 45 × 65 in
Measurement system

Inch (in)

Product Category

High Precision Collet

Collet Series

ER16

Clamping Range

3/32-3/8“

Run Out (TIR)

5μm/0.0002"
