HIGH PRECISION 2084 ADJUSTABLE BORING HEAD WITH R8 SHANK ARBOR 8PC BORING BAR

In Stock

SKU: R82084S

$319.99

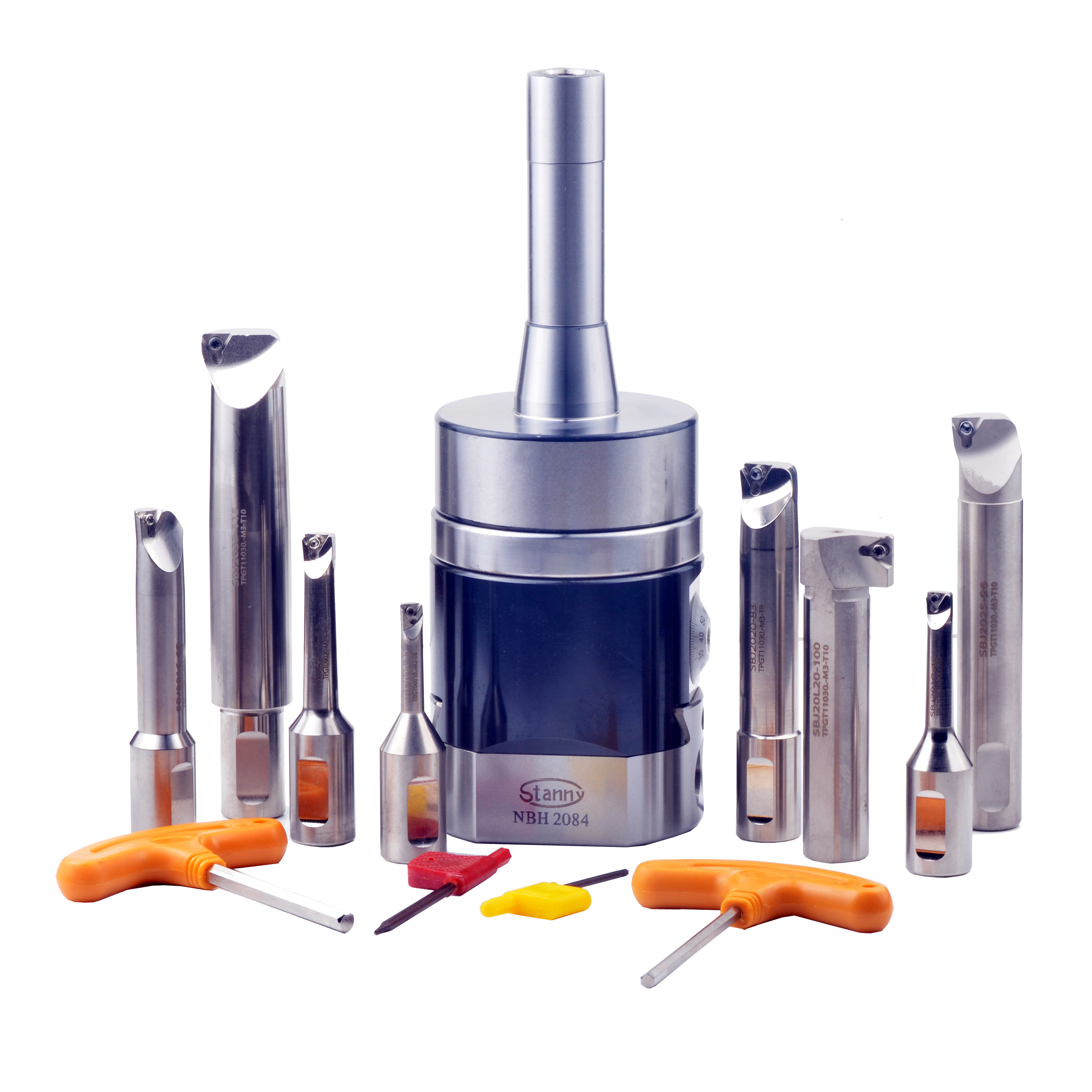

3″ ADJUSTABLE BORING HEAD WITH R8 SHANK ARBOR 8PC BORING BAR

item includes R8  shank arbor

8pcs 20MM  indexable boring bar

3pcs Allen keys

Qty

2084 ADJUSTABLE BORING HEAD WITH R8 SHANK ARBOR 9PC  BORING BAR

MODEL 2084 BORING HEAD  RUN OUT (TIR) 0.0004″
HOLDER TYPE  R8 TOOL HOLDER HOLE DIAMETER 20MM
SHANK TYPE R8  DRAWBAR THREAD M12
BORING BAR 12PCS Gage Length  100MM
BORING SHANK 20MM BORING  DEPTH/DIAMETER MAX 6″ / 8″

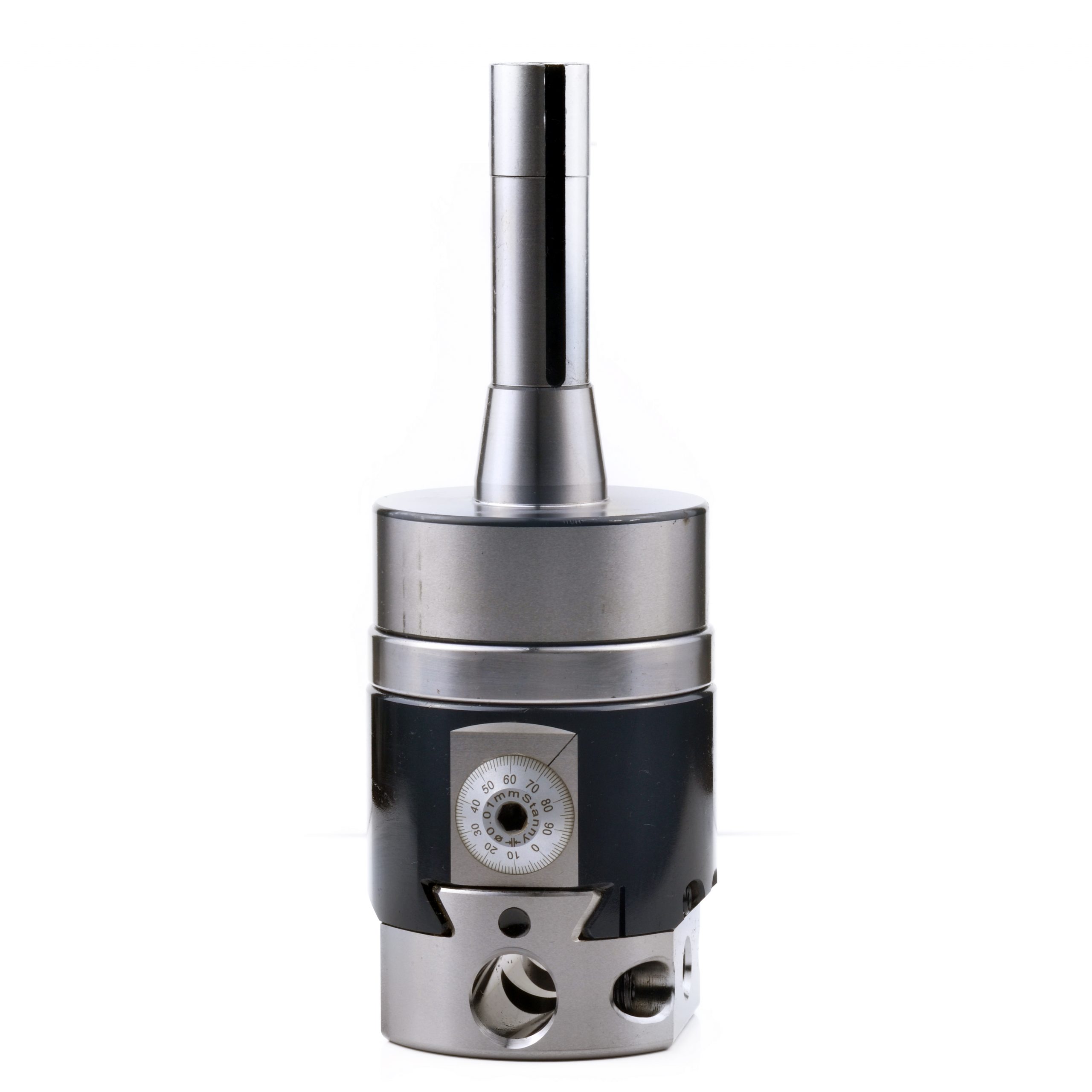

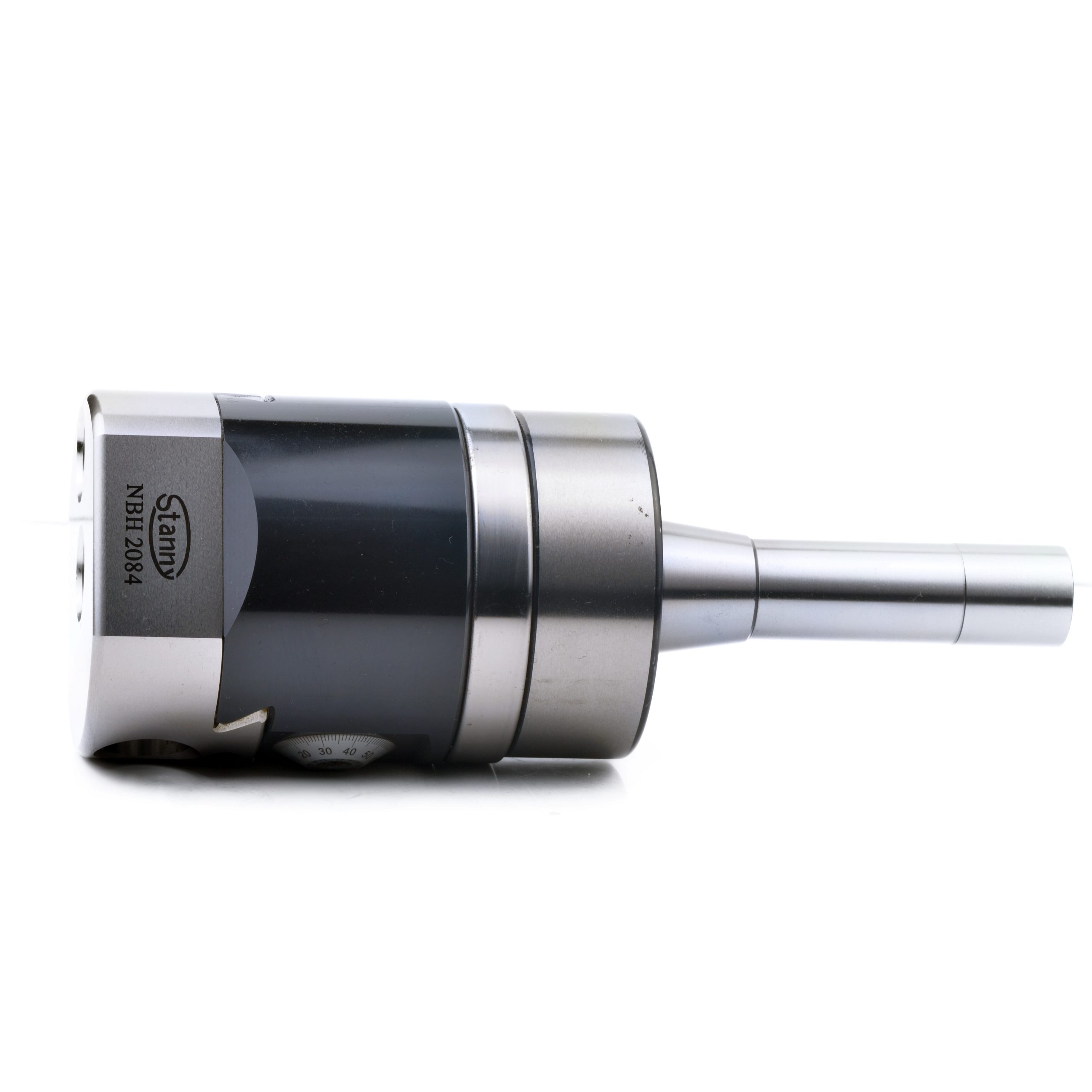

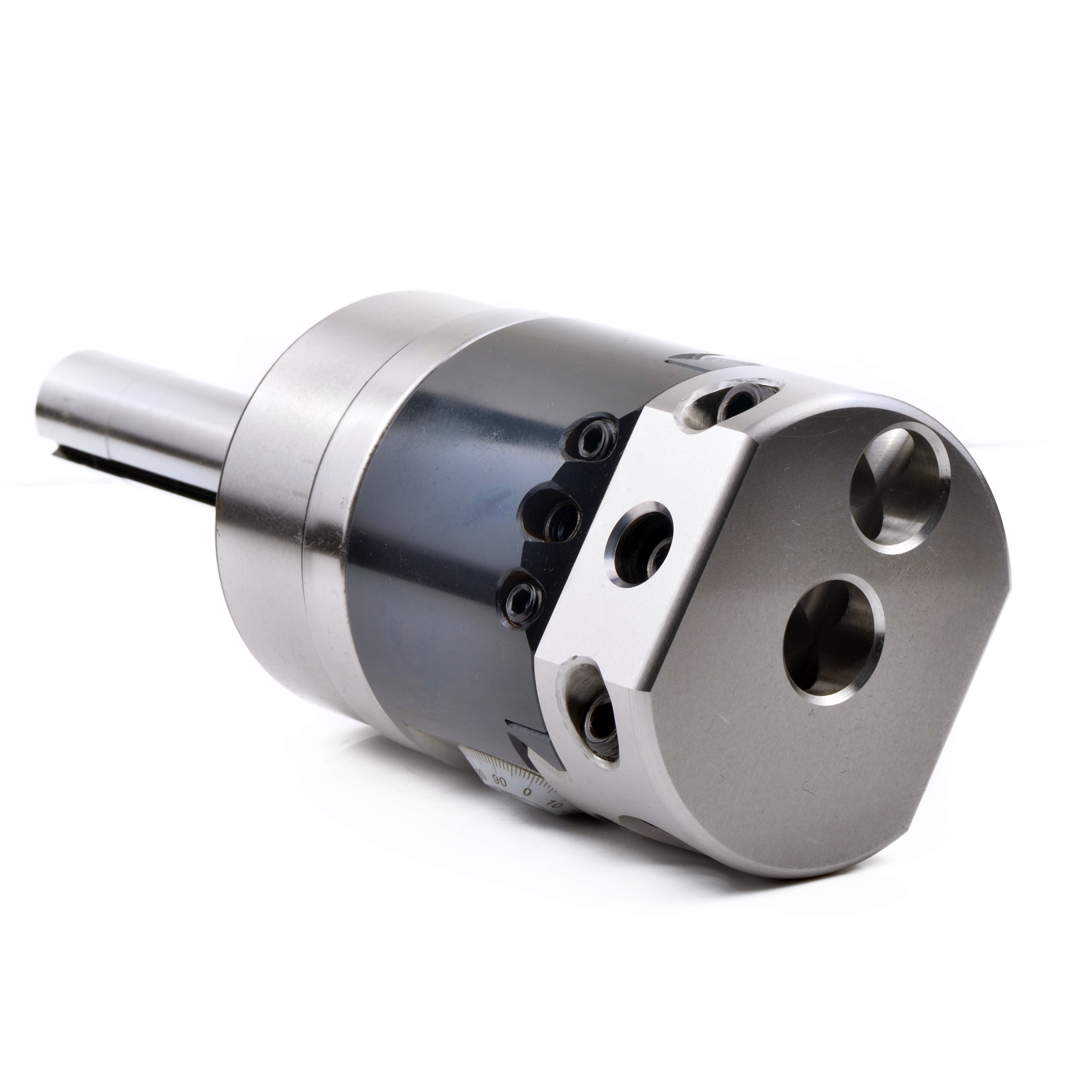

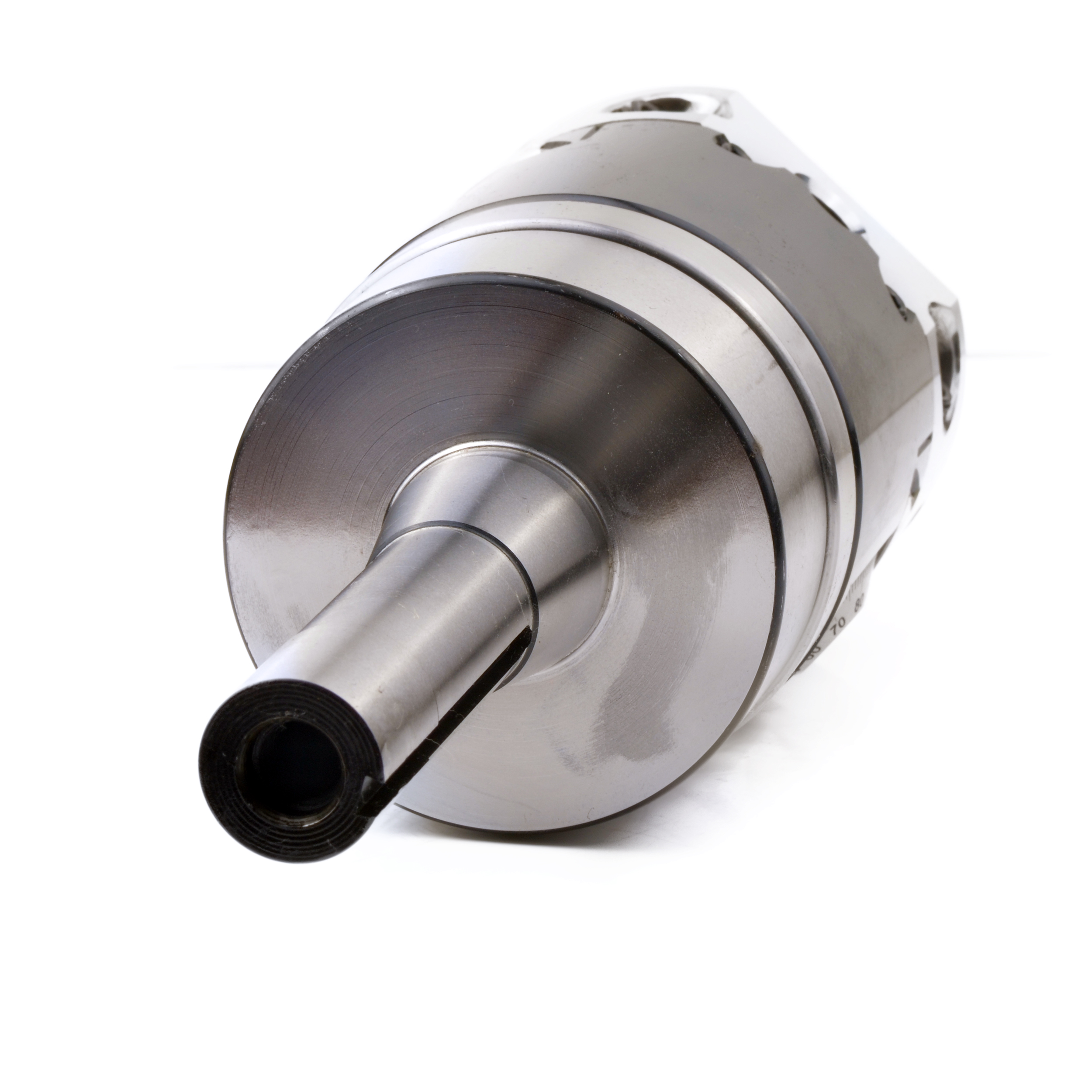

r8 2084 boring head

Adjustable boring head 2084

Boring precision 0.0004 ”  increased

item includes R8 shank arbor

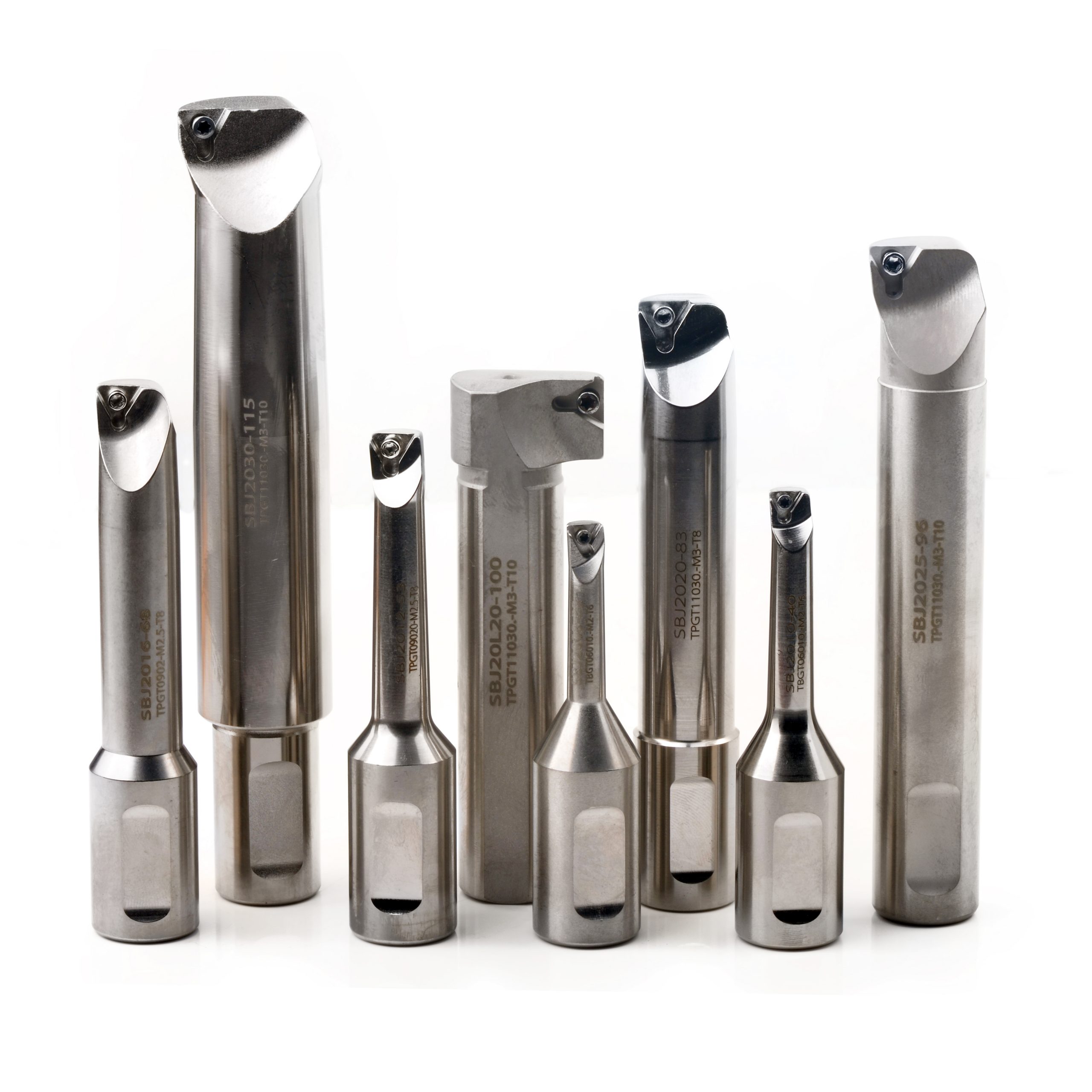

8pcs  20MM  indexable boring bar

3pcs Allen keys

INDEXABLE NO BORING RANG   BORING DEPTH INSERTS BORING AP BORING FEED

mm/rev

CUTTING SPEED

m/min

WRENCH
BJ2008-32 8-12 32 TBGE0601** 0.05-0.20 0.05-0.010 100-200 T6
BJ2010-40 10 -13 40 TBG0601** 0.07-0.25 0.05-0.010 100-200 T6
BJ2012-53 12 -17 52 TBGH0902** 0.07-0.25 0.05-0.015 100-200 T8
BJ2016-68 16-21 68 TBGH0902** 0.1-0.25 0.05-0.015 100-200 T8
BJ2020-83 20-130 83 TBGH1103** 0.05-0.2 0.05-0.015 100-300 T8
BJ2025-96 25-135 135 TBGH1103** 0.05-0.2 0.07-0.010 100-300 T8
BJ2020-115 30–140 140 TBGH1103** 0.05-0.2 0.07-0.015 70-300 T8
BJ20-20 120-280 150 TBGH1103** 0.05-0.2 0.07-0.015 70-300 T8



 Material Application

a. Quenched and tempered structural steel: The carbon content of this type of steel is generally about 0.25% to 0.55%. For structural parts of a given cross-sectional size, when quenched and tempered
along the cross-section during quenching and tempering (quenching and tempering), the mechanics
The performance is good. If the hardening is not penetrated and free ferrite appears in the microstructure, the toughness decreases. For steels with a tendency to temper brittleness,
such as manganese steel, chromium steel, nickel-chromium steel, etc., they should be cooled quickly
after tempering. The quenching critical diameter of this type of steel increases with the increase in grain size and alloying element content. For example, 40Cr and 35SiMn steel are about 30-40mm,
and 40CrNiMo and 30CrNi2MoV steel is about 60-100mm, which is often used in manufacturing Structural
parts such as shafts and connecting rods with large loads.cat40 end mill holder

b. Surface hardened structural steel: used to manufacture hard and wear-resistant surface parts and flexible parts, such as gears and shafts. In order to increase the toughness of the core of the part,
the carbon content in the steel should be low, generally 0.12 to 0.25%, and there is also an appropriate amount of alloy elements to ensure proper hardenability. Nitrided steel also needs to add alloy elements (such as Al, Cr, Mo, etc.) that are easy to form nitrides. Carburized or carbonitrided steel, after carburizing or carbonitriding at 850~950℃, quenched and used under low-temperature tempering (about 200℃). The nitrided steel is directly treated by nitriding
(480~580℃), and it is no longer quenched and tempered.



er collet chuck cat40 er32 er11 collet er collet er32 collet set er20 collet sizes er50 collet chuck er20 collet chuck
er collet holder cat40 er16 er32 collet er20 collet er16 collet er25 collet er40 collet er32 collet chuck
boring head for mill boring bar for sale
Weight 1.5 lbs
Dimensions 15 × 45 × 65 in
