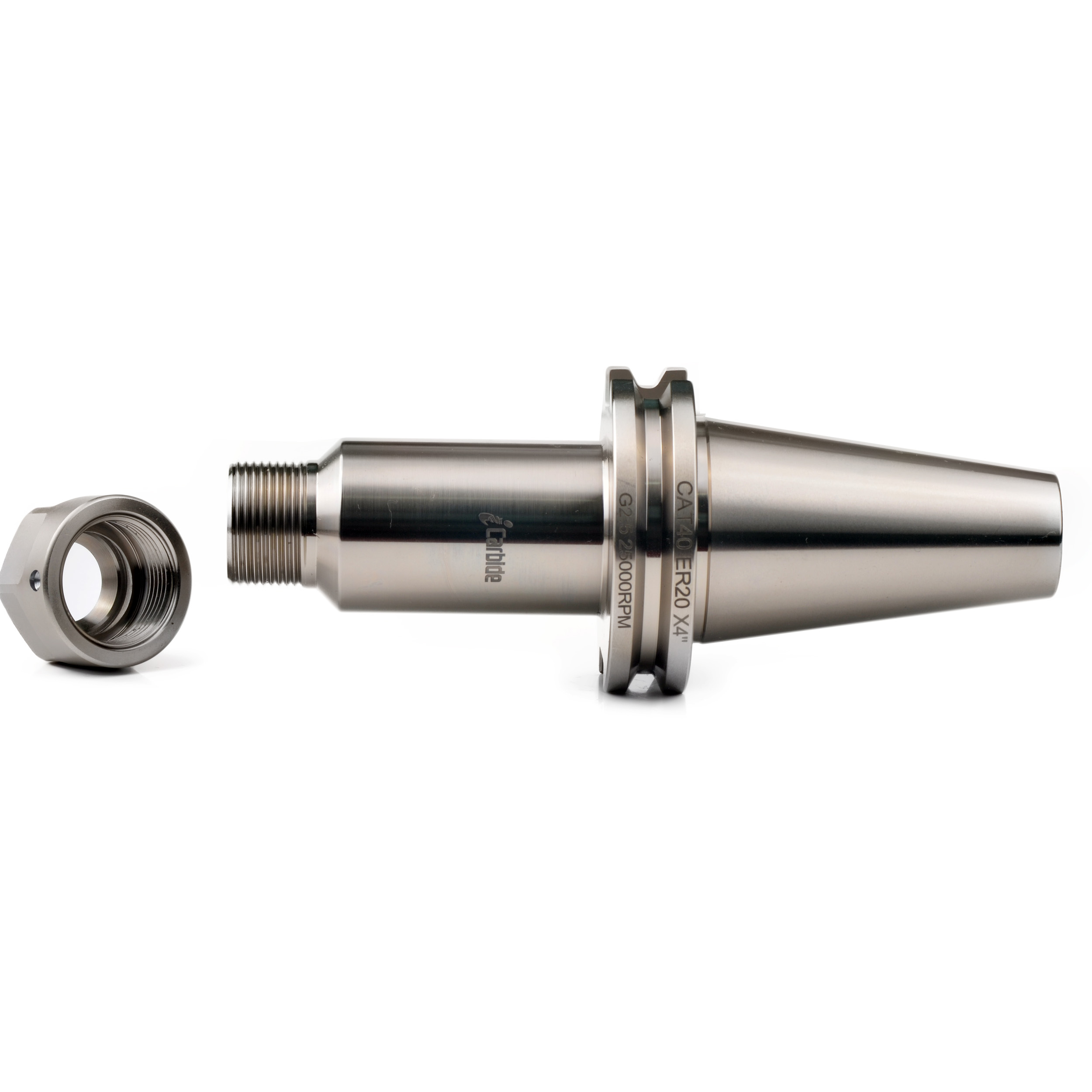

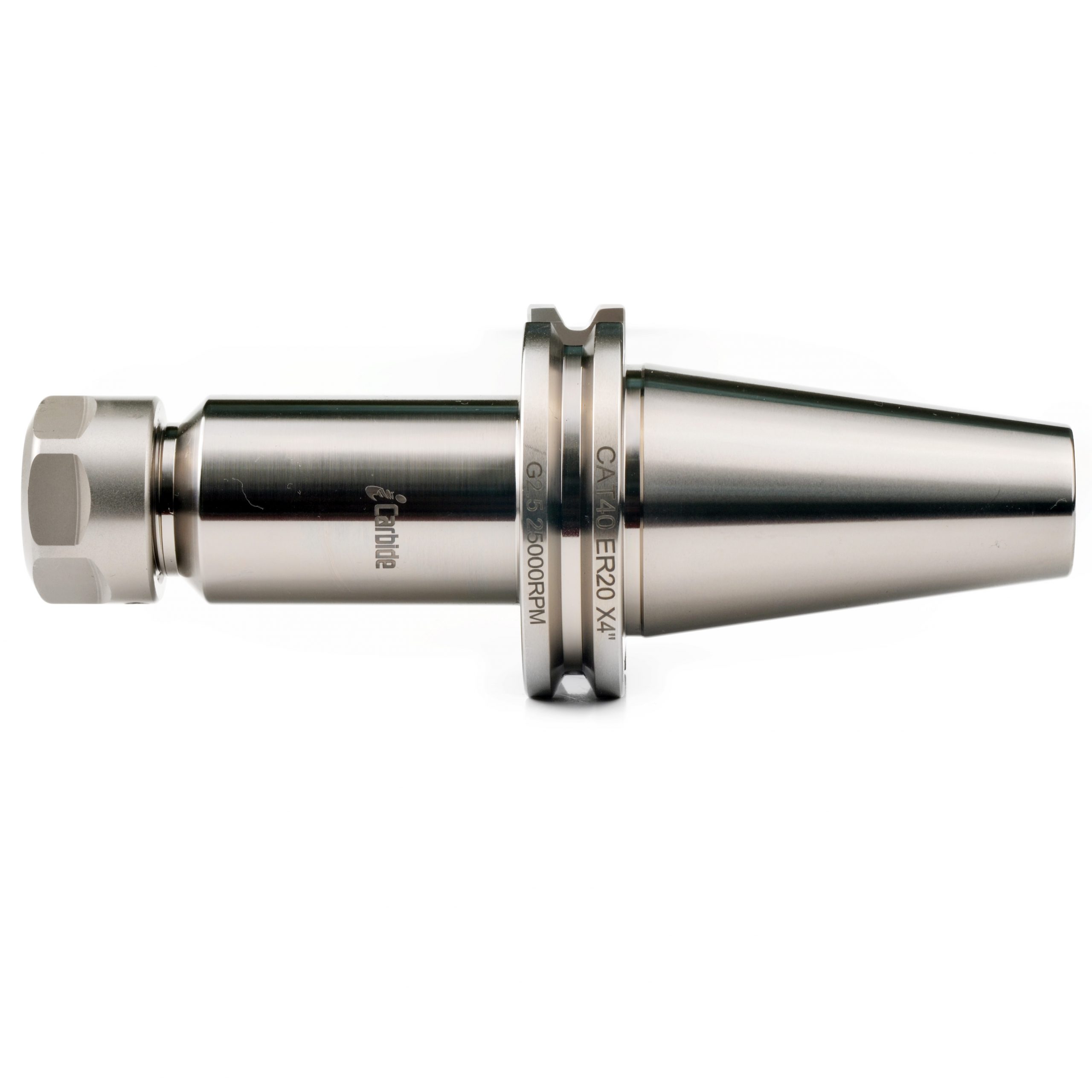

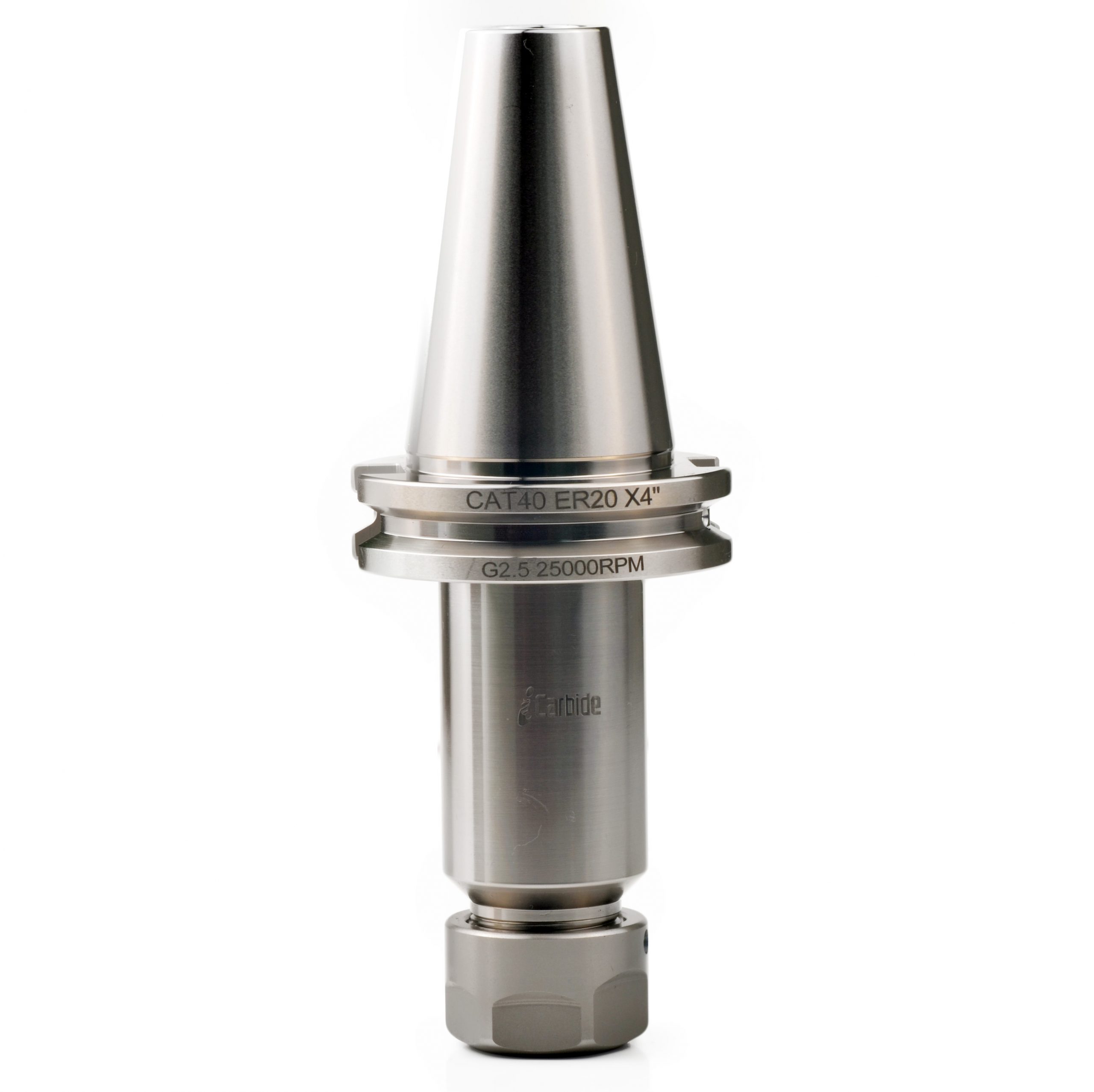

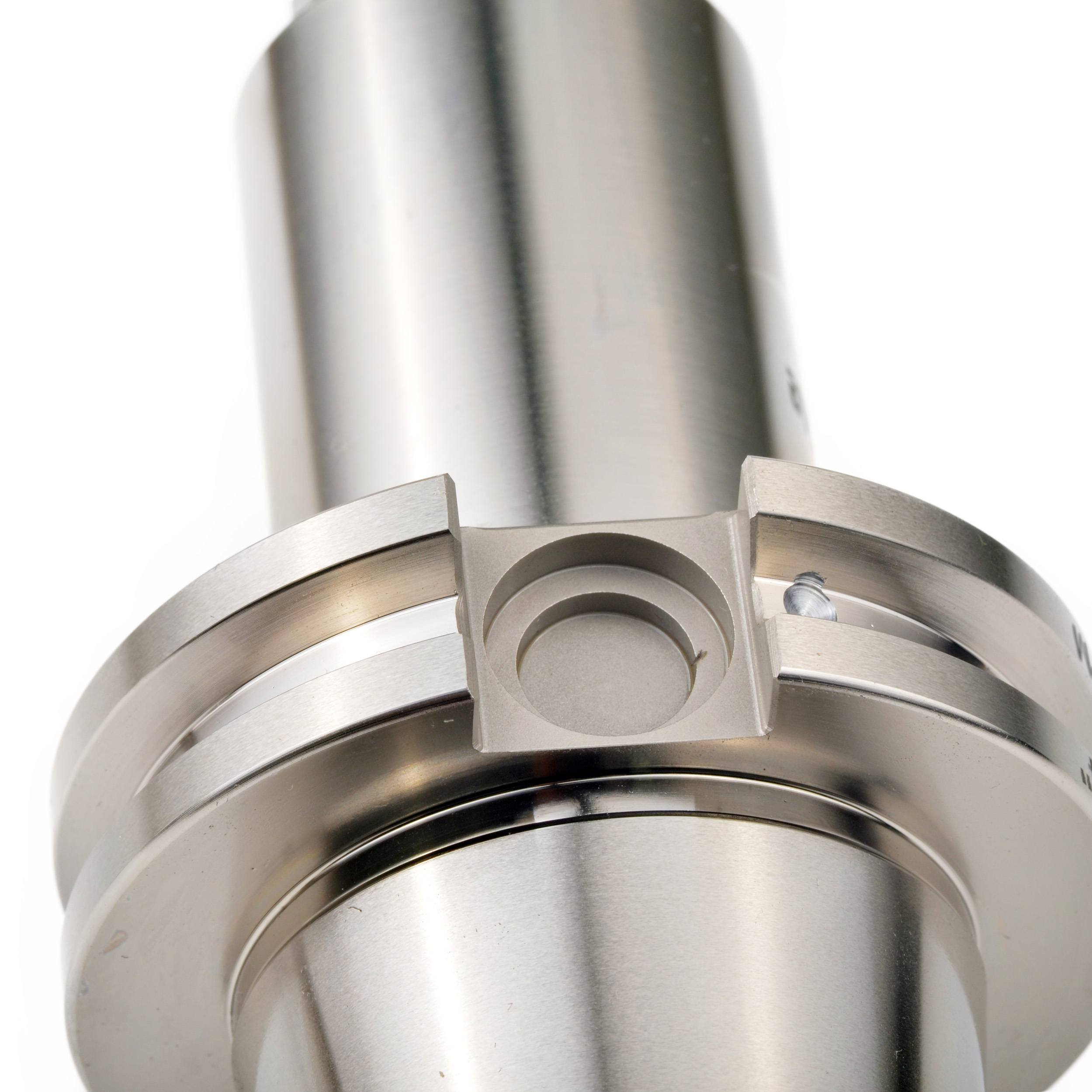

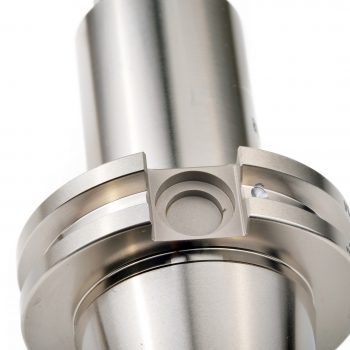

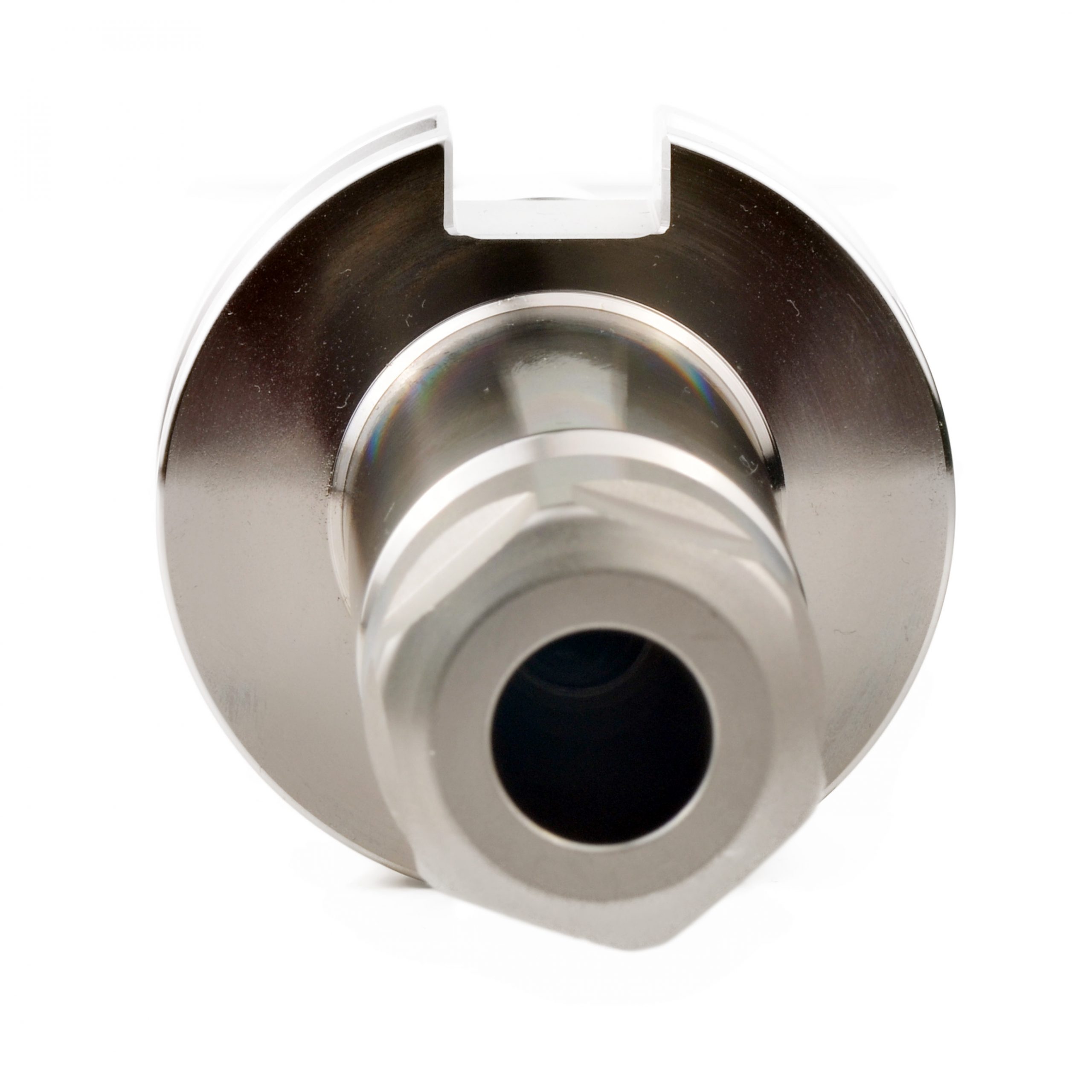

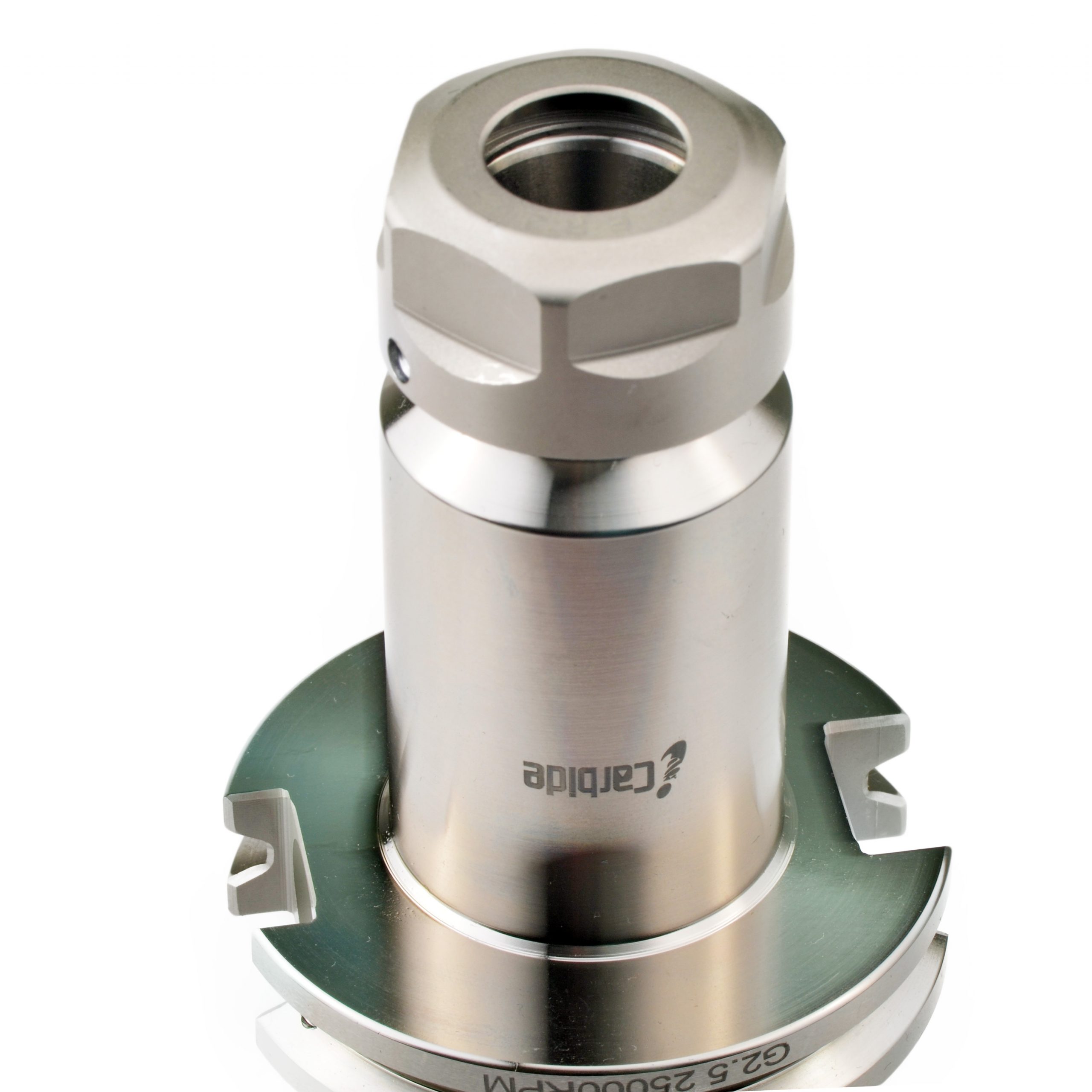

High Precision CAT40 ER20 4″ Collet Chuck Tool Holder G2.5 25000rpm

In Stock

SKU: SCAT4020400

$36.99

For all CAT40 Spindle Machine Collet Chuck Tool Holder

High-Speed Cutting (G2.5 25000rpm) Balance Available

High Precision Runout: TIR  5μm or 0.00015 ”



Qty
Compare

CAT40 ER COLLET CHUCK  TOOL HOLDER

MODEL CAT40-ER20-4″  RUN OUT (TIR) 0.00015″ NECK  DIAMETER D 1.33″
HOLDER TYPE ER COLLET CHUCK CLAMPING RANGE  1/16-1/2″ CLAMPING SIZE ER20
SHANK TYPE CAT40 DRAWBAR THREAD 5/8-11″ COLLET NUT ER20 HEX NUT
BALANCE G2.5 25000rpm Gage Length 4″ COOLANT YES





High-Speed Cutting (G2.5 25000rpm) Balance

High Precision Runout: TIR  5μm or 0.00015

Hardened:  surface HRC58 inside is HRC45

Protection: oxide black



Drawings & Parameters Table



CAT40 TAPER TAPER D1 L1 FLANGE D
DRAWBAR THREAD CAT40 5/8-11 UNC 1.75″ 2.69″ 2.5″

Related Tool Holder



Order NoModel (Silver Coated)L1(inch)D(inch)BalanceRun Out(TIR)
IC0001CAT40 ER16 2.5"2.51.1G2.5 /25000rpm0.003μm
IC0002CAT40 ER16 4"41.1G2.5 /25000rpm0.003μm
IC0003CAT40 ER16 6"61.1G2.5 /25000rpm0.003μm
IC0004CAT40 ER20 2.5"2.51.34G2.5 /25000rpm0.003μm
IC0005CAT40 ER20 4"41.34G2.5 /25000rpm0.003μm
IC0006CAT40 ER20 6"61.34G2.5 /25000rpm0.003μm
IC0007CAT40 ER25 2.5"2.51.65G2.5 /25000rpm0.003μm
IC0008CAT40 ER25 4"41.65G2.5 /25000rpm0.003μm
IC0009CAT40 ER25 6"61.65G2.5 /25000rpm0.003μm
IC0010CAT40 ER32 2.5"2.51.97G2.5 /25000rpm0.003μm
IC0011CAT40 ER32 4"41.97G2.5 /25000rpm0.003μm
IC0012CAT40 ER32 6"61.97G2.5 /25000rpm0.003μm
IC0013CAT40 ER40 4"42.48G2.5 /25000rpm0.003μm
IC0014CAT40 Er32 0.5"0.50.75G2.5 /25000rpm0.003μm
IC0015CAT40 ER11M 6"60.75G2.5 /25000rpm0.003μm
IC0016CAT40 ER11M 4"40.75G2.5 /25000rpm0.003μm
IC0017CAT40 ER16M 2"20.87G2.5 /25000rpm0.003μm
IC0018CAT40 ER16M 4"40.87G2.5 /25000rpm0.003μm
IC0019CAT40 ER20M 2"21.1G2.5 /25000rpm0.003μm
IC0020CAT40 ER20M 4"41.1G2.5 /25000rpm0.003μm

 Material Application

a. Quenched and tempered structural steel: The carbon content of this type of steel is generally about 0.25% to 0.55%. For structural parts of a given cross-sectional size, when quenched and tempered along the cross-section during quenching and tempering (quenching and tempering), the mechanics The performance is good. If the hardening is not penetrated and free ferrite appears in the microstructure, the toughness decreases. For steels with a tendency to temper brittleness, such as manganese steel, chromium steel, nickel-chromium steel, etc., they should be cooled quickly after tempering. The quenching critical diameter of this type of steel increases with the increase in grain size and alloying element content. For example, 40Cr and 35SiMn steel are about 30-40mm, and 40CrNiMo and 30CrNi2MoV steel is about 60-100mm, which is often used in manufacturing Structural parts such as shafts and connecting rods with large loads.

b. Surface hardened structural steel: used to manufacture hard and wear-resistant surface parts and flexible parts, such as gears and shafts. In order to increase the toughness of the core of the part, the carbon content in the steel should be low, generally 0.12 to 0.25%, and there is also an appropriate amount of alloy elements to ensure proper hardenability. Nitrided steel also needs to add alloy elements (such as Al, Cr, Mo, etc.) that are easy to form nitrides. Carburized or carbonitrided steel, after carburizing or carbonitriding at 850~950℃, quenched and used under low-temperature tempering (about 200℃). The nitrided steel is directly treated by nitriding (480~580℃), and it is no longer quenched and tempered.

Weight 2.5 lbs
Dimensions 15 × 45 × 65 in
Measurement system

Inch (in)

Product Category

Collet Chuck Tool Holder

Shank Type

CAT40

Collet Series

ER20
