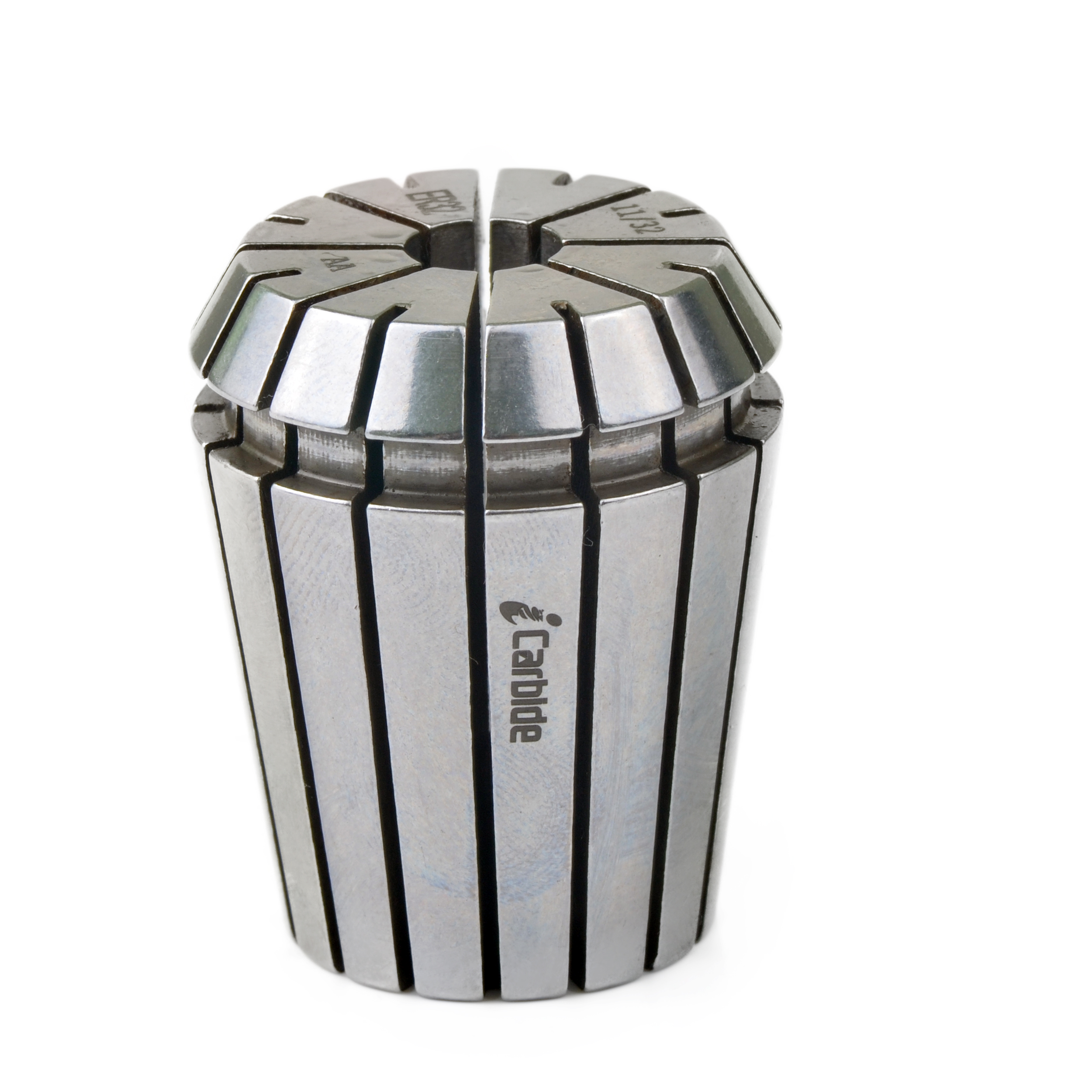

High Precision ER Collets ER40 ER32 ER25 ER20 ER16 ER11 and ER8 Metric

Out of stock

SKU: 5185288-1-1

$19.99

Use:
For all DIN6499 standard tool holder in ER Collets

Finishing & Rough Cutting:

High precision run out saving your cost-effective

Precision:

High Precision Runout: TIR 0.005μm or 0.00015

Hardened:

Outside: HRC48  Inside: HRC32

Size includes:

ER40 ER32 ER25 ER20 ER16 ER11 and ER8

Out of stock

Compare

I. Characters & Features

Use:
For all DIN6499 standard tool holder in ER Collets

Finishing & Rough Cutting:

High precision run out saving your cost-effective

Precision:

High Precision Runout: TIR 0.003μm or 0.00015

Hardened:

Outside: HRC48  Inside: HRC32

Size includes:

ER40 ER32 ER25 ER20 ER16 ER11 and ER8



A. Drawings & Parameters Table



B. Select & buy our tool

Order NODLClamping Ф mmRun OutSlotPrice
ICER110111.5181≤ 10μm169.99
ICER110211.5181.5≤ 10μm169.99
ICER110311.5182≤ 10μm167.99
ICER110411.5182.5≤ 5μm167.99
ICER110511.5183≤ 5μm167.99
ICER110611.5183.5≤ 5μm167.99
ICER110711.5184≤ 5μm167.99
ICER110811.5184.5≤ 5μm167.99
ICER110911.5185≤ 5μm167.99
ICER111011.5185.5≤ 5μm167.99
ICER111111.5186≤ 5μm167.99
ICER111211.5186.5≤ 5μm167.99
ICER111311.5187≤ 5μm167.99
ICER16011727.51≤ 10μm169.99
ICER16021727.52≤ 5μm169.99
ICER16031727.53≤ 5μm166.99
ICER16041727.54≤ 5μm166.99
ICER16051727.55≤ 5μm166.99
ICER16061727.56≤ 5μm166.99
ICER16071727.57≤ 5μm166.99
ICER16081727.58≤ 5μm166.99
ICER16091727.59≤ 5μm166.99
ICER16101727.510≤ 5μm166.99
ICER20012131.51≤ 10μm169.99
ICER20022131.52≤ 10μm169.99
ICER20032131.53≤ 5μm166.99
ICER20042131.54≤ 5μm166.99
ICER20052131.55≤ 5μm166.99
ICER20062131.56≤ 5μm166.99
ICER20072131.57≤ 5μm166.99
ICER20082131.58≤ 5μm166.99
ICER20092131.59≤ 5μm166.99
ICER20102131.510≤ 5μm166.99
ICER20112131.511≤ 5μm166.99
ICER20122131.512≤ 5μm166.99
ICER20132131.513≤ 5μm166.99
ICER250126341≤ 5μm1612.99
ICER250226342≤ 5μm1612.99
ICER250326343≤ 5μm168.99
ICER250426344≤ 5μm168.99
ICER250526345≤ 5μm168.99
ICER250626346≤ 5μm168.99
ICER250726347≤ 5μm168.99
ICER250826348≤ 5μm168.99
ICER250926349≤ 5μm168.99
ICER2510263410≤ 5μm168.99
ICER2511263411≤ 5μm168.99
ICER2512263412≤ 5μm168.99
ICER2513263413≤ 5μm168.99
ICER2514263414≤ 5μm168.99
ICER2515263415≤ 5μm168.99
ICER2516263416≤ 5μm168.99
ICER320133402≤ 5μm1613.99
ICER320233403≤ 5μm1613.99
ICER320333404≤ 5μm169.99
ICER320433405≤ 5μm169.99
ICER320533406≤ 5μm169.99
ICER320633407≤ 5μm169.99
ICER320733408≤ 5μm169.99
ICER320833409≤ 5μm169.99
ICER3209334010≤ 5μm169.99
ICER3210334011≤ 5μm169.99
ICER3211334012≤ 5μm169.99
ICER3212334013≤ 5μm169.99
ICER3213334014≤ 5μm169.99
ICER3214334015≤ 5μm169.99
ICER3215334016≤ 5μm169.99
ICER3216334017≤ 5μm169.99
ICER3217334018≤ 5μm169.99
ICER3218334019≤ 5μm169.99
ICER3219334020≤ 5μm169.99
ICER400141463≤ 5μm1614.99
ICER400241464≤ 5μm1614.99
ICER400341465≤ 5μm1614.99
ICER400441466≤ 5μm1614.99
ICER400541467≤ 5μm1614.99
ICER400641468≤ 5μm1614.99
ICER400741469≤ 5μm1614.99
ICER4008414610≤ 5μm1614.99
ICER4009414611≤ 5μm1614.99
ICER4010414612≤ 5μm1614.99
ICER4011414613≤ 5μm1614.99
ICER4012414614≤ 5μm1614.99
ICER4013414615≤ 5μm1614.99
ICER4014414616≤ 5μm1614.99
ICER4015414617≤ 5μm1614.99
ICER4016414618≤ 5μm1614.99
ICER4017414619≤ 5μm1614.99
ICER4018414620≤ 5μm1614.99
ICER4019414621≤ 5μm1614.99
ICER4020414622≤ 5μm1614.99
ICER4021414623≤ 5μm1614.99
ICER4022414624≤ 5μm1614.99
ICER4023414625≤ 5μm1614.99
ICER4024414626≤ 5μm1614.99

C. Quality Control

E. QA Processing

D. Material Application

Japanese JIS standard SUJ2 high carbon chromium bearing steel, corresponding to the national
standard GCr15, SUJ2 high carbon chromium bearing steel, can be fully hardened, the hardness
can reach HRC58-61, has the wear resistance of the bearing, also strengthens the rigidity,
workability Good, and can be directly processed and shaped, using mold times 2-3 times higher
than SKD-61 (HRC52) full hardware. During quenching and tempering, the size does not change much,
and fatigue resistance is quite good.

E. Send Inquiry to Us for free

We will, as always, send samples to the consulting clients to ensure high-quality performance and reasonable prices. We focus on CNC Cutting tools & Tool System etc, provide the best tool for clients of different types of operations.

Please no, hesitate to send an inquiry to us!

Weight 1.5 lbs
Dimensions 15 × 45 × 65 in
Measurement system

Metric (mm)

Product Category

High Precision Collet

Collet Series

ER40
