I. Characters & Features

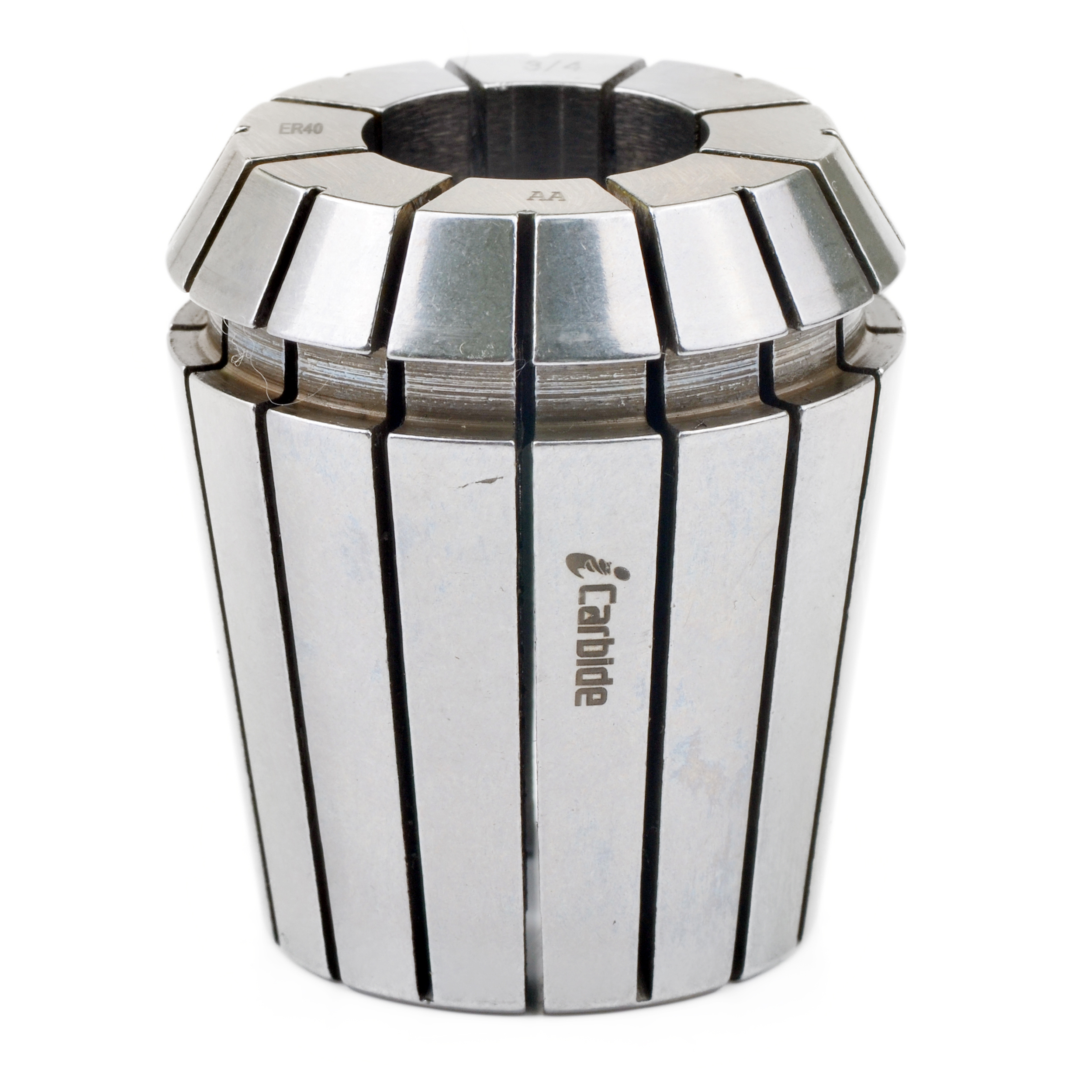

Use: For all DIN6499 standard tool holder in ER40 Collets
Finishing & Rough Cutting:
High precision run out saving your cost-effective
Precision:
High Precision Runout: TIR 5μm or 0.0002″
Hardened:
Outside: HRC48Â Inside: HRC32
Size Includes 3/4″
A. Drawings & Parameters Table
B. Select & buy our tool
Order NO | D | L | Clamping Ф mm | Run Out | Slot | Price |
---|---|---|---|---|---|---|
ICER1101 | 11.5 | 18 | 1 | ≤ 10μm | 16 | 9.99 |
ICER1102 | 11.5 | 18 | 1.5 | ≤ 10μm | 16 | 9.99 |
ICER1103 | 11.5 | 18 | 2 | ≤ 10μm | 16 | 7.99 |
ICER1104 | 11.5 | 18 | 2.5 | ≤ 5μm | 16 | 7.99 |
ICER1105 | 11.5 | 18 | 3 | ≤ 5μm | 16 | 7.99 |
ICER1106 | 11.5 | 18 | 3.5 | ≤ 5μm | 16 | 7.99 |
ICER1107 | 11.5 | 18 | 4 | ≤ 5μm | 16 | 7.99 |
ICER1108 | 11.5 | 18 | 4.5 | ≤ 5μm | 16 | 7.99 |
ICER1109 | 11.5 | 18 | 5 | ≤ 5μm | 16 | 7.99 |
ICER1110 | 11.5 | 18 | 5.5 | ≤ 5μm | 16 | 7.99 |
ICER1111 | 11.5 | 18 | 6 | ≤ 5μm | 16 | 7.99 |
ICER1112 | 11.5 | 18 | 6.5 | ≤ 5μm | 16 | 7.99 |
ICER1113 | 11.5 | 18 | 7 | ≤ 5μm | 16 | 7.99 |
ICER1601 | 17 | 27.5 | 1 | ≤ 10μm | 16 | 9.99 |
ICER1602 | 17 | 27.5 | 2 | ≤ 5μm | 16 | 9.99 |
ICER1603 | 17 | 27.5 | 3 | ≤ 5μm | 16 | 6.99 |
ICER1604 | 17 | 27.5 | 4 | ≤ 5μm | 16 | 6.99 |
ICER1605 | 17 | 27.5 | 5 | ≤ 5μm | 16 | 6.99 |
ICER1606 | 17 | 27.5 | 6 | ≤ 5μm | 16 | 6.99 |
ICER1607 | 17 | 27.5 | 7 | ≤ 5μm | 16 | 6.99 |
ICER1608 | 17 | 27.5 | 8 | ≤ 5μm | 16 | 6.99 |
ICER1609 | 17 | 27.5 | 9 | ≤ 5μm | 16 | 6.99 |
ICER1610 | 17 | 27.5 | 10 | ≤ 5μm | 16 | 6.99 |
ICER2001 | 21 | 31.5 | 1 | ≤ 10μm | 16 | 9.99 |
ICER2002 | 21 | 31.5 | 2 | ≤ 10μm | 16 | 9.99 |
ICER2003 | 21 | 31.5 | 3 | ≤ 5μm | 16 | 6.99 |
ICER2004 | 21 | 31.5 | 4 | ≤ 5μm | 16 | 6.99 |
ICER2005 | 21 | 31.5 | 5 | ≤ 5μm | 16 | 6.99 |
ICER2006 | 21 | 31.5 | 6 | ≤ 5μm | 16 | 6.99 |
ICER2007 | 21 | 31.5 | 7 | ≤ 5μm | 16 | 6.99 |
ICER2008 | 21 | 31.5 | 8 | ≤ 5μm | 16 | 6.99 |
ICER2009 | 21 | 31.5 | 9 | ≤ 5μm | 16 | 6.99 |
ICER2010 | 21 | 31.5 | 10 | ≤ 5μm | 16 | 6.99 |
ICER2011 | 21 | 31.5 | 11 | ≤ 5μm | 16 | 6.99 |
ICER2012 | 21 | 31.5 | 12 | ≤ 5μm | 16 | 6.99 |
ICER2013 | 21 | 31.5 | 13 | ≤ 5μm | 16 | 6.99 |
ICER2501 | 26 | 34 | 1 | ≤ 5μm | 16 | 12.99 |
ICER2502 | 26 | 34 | 2 | ≤ 5μm | 16 | 12.99 |
ICER2503 | 26 | 34 | 3 | ≤ 5μm | 16 | 8.99 |
ICER2504 | 26 | 34 | 4 | ≤ 5μm | 16 | 8.99 |
ICER2505 | 26 | 34 | 5 | ≤ 5μm | 16 | 8.99 |
ICER2506 | 26 | 34 | 6 | ≤ 5μm | 16 | 8.99 |
ICER2507 | 26 | 34 | 7 | ≤ 5μm | 16 | 8.99 |
ICER2508 | 26 | 34 | 8 | ≤ 5μm | 16 | 8.99 |
ICER2509 | 26 | 34 | 9 | ≤ 5μm | 16 | 8.99 |
ICER2510 | 26 | 34 | 10 | ≤ 5μm | 16 | 8.99 |
ICER2511 | 26 | 34 | 11 | ≤ 5μm | 16 | 8.99 |
ICER2512 | 26 | 34 | 12 | ≤ 5μm | 16 | 8.99 |
ICER2513 | 26 | 34 | 13 | ≤ 5μm | 16 | 8.99 |
ICER2514 | 26 | 34 | 14 | ≤ 5μm | 16 | 8.99 |
ICER2515 | 26 | 34 | 15 | ≤ 5μm | 16 | 8.99 |
ICER2516 | 26 | 34 | 16 | ≤ 5μm | 16 | 8.99 |
ICER3201 | 33 | 40 | 2 | ≤ 5μm | 16 | 13.99 |
ICER3202 | 33 | 40 | 3 | ≤ 5μm | 16 | 13.99 |
ICER3203 | 33 | 40 | 4 | ≤ 5μm | 16 | 9.99 |
ICER3204 | 33 | 40 | 5 | ≤ 5μm | 16 | 9.99 |
ICER3205 | 33 | 40 | 6 | ≤ 5μm | 16 | 9.99 |
ICER3206 | 33 | 40 | 7 | ≤ 5μm | 16 | 9.99 |
ICER3207 | 33 | 40 | 8 | ≤ 5μm | 16 | 9.99 |
ICER3208 | 33 | 40 | 9 | ≤ 5μm | 16 | 9.99 |
ICER3209 | 33 | 40 | 10 | ≤ 5μm | 16 | 9.99 |
ICER3210 | 33 | 40 | 11 | ≤ 5μm | 16 | 9.99 |
ICER3211 | 33 | 40 | 12 | ≤ 5μm | 16 | 9.99 |
ICER3212 | 33 | 40 | 13 | ≤ 5μm | 16 | 9.99 |
ICER3213 | 33 | 40 | 14 | ≤ 5μm | 16 | 9.99 |
ICER3214 | 33 | 40 | 15 | ≤ 5μm | 16 | 9.99 |
ICER3215 | 33 | 40 | 16 | ≤ 5μm | 16 | 9.99 |
ICER3216 | 33 | 40 | 17 | ≤ 5μm | 16 | 9.99 |
ICER3217 | 33 | 40 | 18 | ≤ 5μm | 16 | 9.99 |
ICER3218 | 33 | 40 | 19 | ≤ 5μm | 16 | 9.99 |
ICER3219 | 33 | 40 | 20 | ≤ 5μm | 16 | 9.99 |
ICER4001 | 41 | 46 | 3 | ≤ 5μm | 16 | 14.99 |
ICER4002 | 41 | 46 | 4 | ≤ 5μm | 16 | 14.99 |
ICER4003 | 41 | 46 | 5 | ≤ 5μm | 16 | 14.99 |
ICER4004 | 41 | 46 | 6 | ≤ 5μm | 16 | 14.99 |
ICER4005 | 41 | 46 | 7 | ≤ 5μm | 16 | 14.99 |
ICER4006 | 41 | 46 | 8 | ≤ 5μm | 16 | 14.99 |
ICER4007 | 41 | 46 | 9 | ≤ 5μm | 16 | 14.99 |
ICER4008 | 41 | 46 | 10 | ≤ 5μm | 16 | 14.99 |
ICER4009 | 41 | 46 | 11 | ≤ 5μm | 16 | 14.99 |
ICER4010 | 41 | 46 | 12 | ≤ 5μm | 16 | 14.99 |
ICER4011 | 41 | 46 | 13 | ≤ 5μm | 16 | 14.99 |
ICER4012 | 41 | 46 | 14 | ≤ 5μm | 16 | 14.99 |
ICER4013 | 41 | 46 | 15 | ≤ 5μm | 16 | 14.99 |
ICER4014 | 41 | 46 | 16 | ≤ 5μm | 16 | 14.99 |
ICER4015 | 41 | 46 | 17 | ≤ 5μm | 16 | 14.99 |
ICER4016 | 41 | 46 | 18 | ≤ 5μm | 16 | 14.99 |
ICER4017 | 41 | 46 | 19 | ≤ 5μm | 16 | 14.99 |
ICER4018 | 41 | 46 | 20 | ≤ 5μm | 16 | 14.99 |
ICER4019 | 41 | 46 | 21 | ≤ 5μm | 16 | 14.99 |
ICER4020 | 41 | 46 | 22 | ≤ 5μm | 16 | 14.99 |
ICER4021 | 41 | 46 | 23 | ≤ 5μm | 16 | 14.99 |
ICER4022 | 41 | 46 | 24 | ≤ 5μm | 16 | 14.99 |
ICER4023 | 41 | 46 | 25 | ≤ 5μm | 16 | 14.99 |
ICER4024 | 41 | 46 | 26 | ≤ 5μm | 16 | 14.99 |
C. Quality ControlÂ
E. QA ProcessingÂ
D. Material Application
Japanese JIS standard SUJ2 high carbon chromium bearing steel, corresponding to the national
standard GCr15, SUJ2 high carbon chromium bearing steel, can be fully hardened, the hardness
can reach HRC58-61, has the wear resistance of the bearing, also strengthens the rigidity,
workability Good, and can be directly processed and shaped, using mold times 2-3 times higher
than SKD-61 (HRC52) full hardware. During quenching and tempering, the size does not change much,
and fatigue resistance is quite good.
