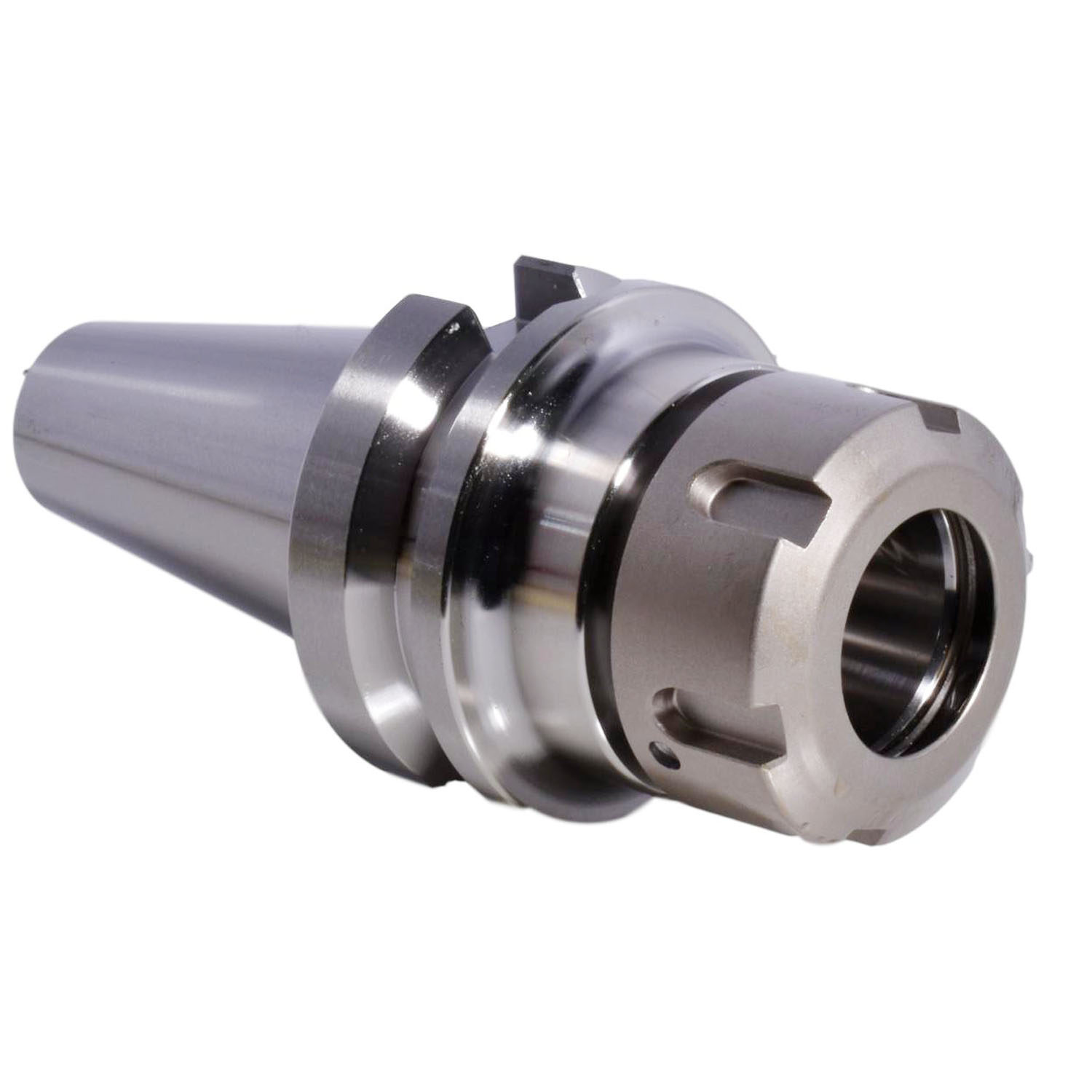

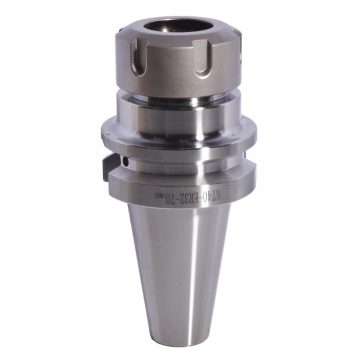

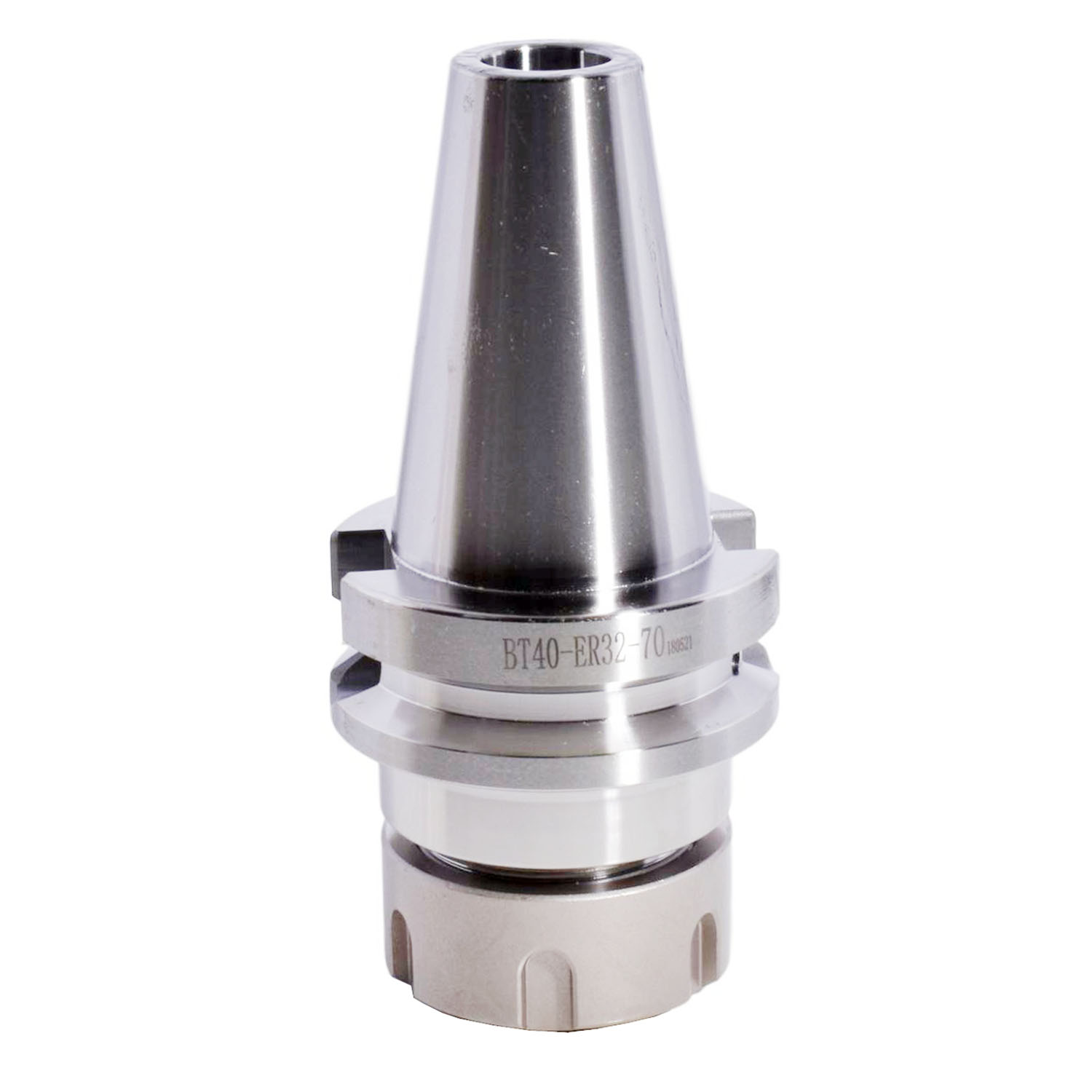

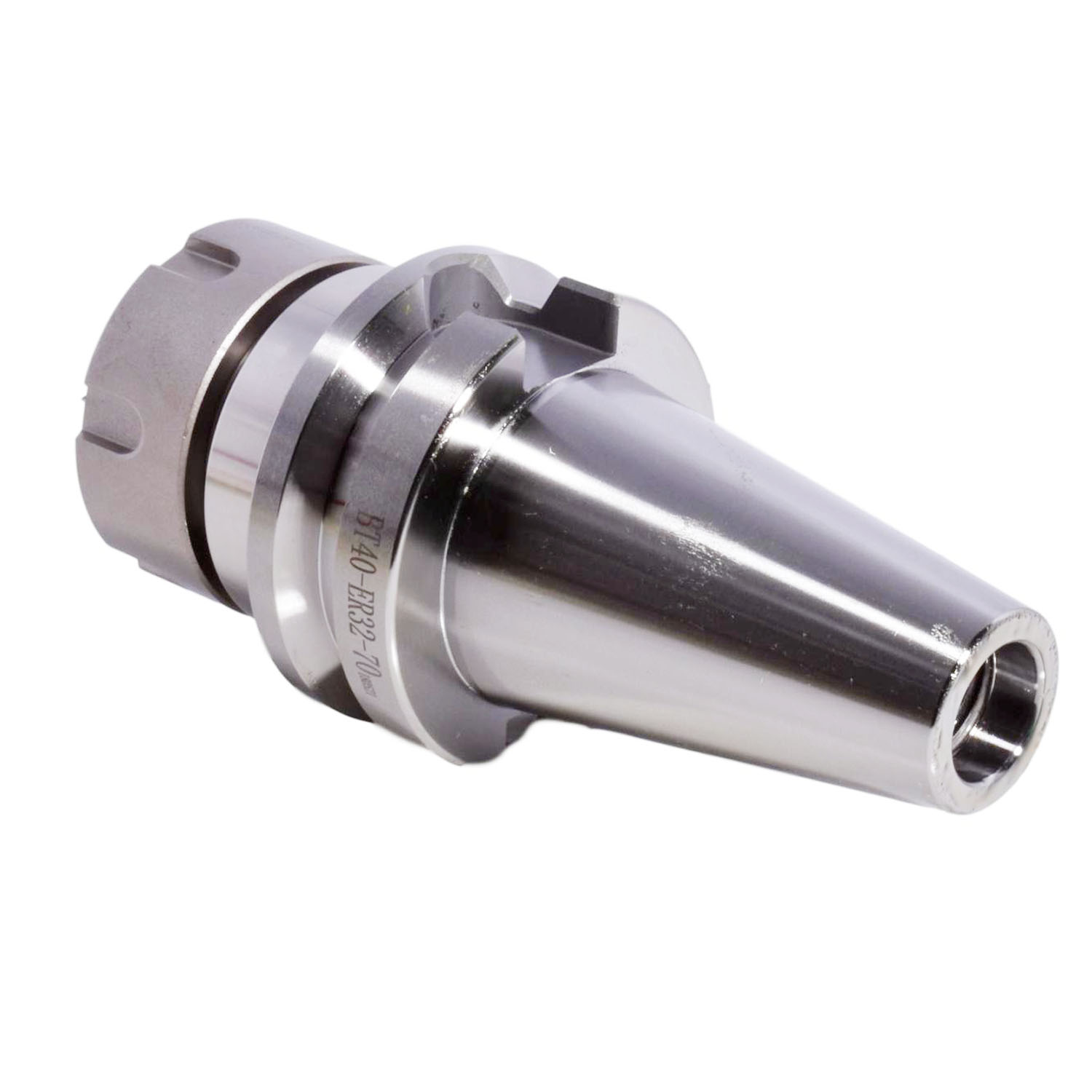

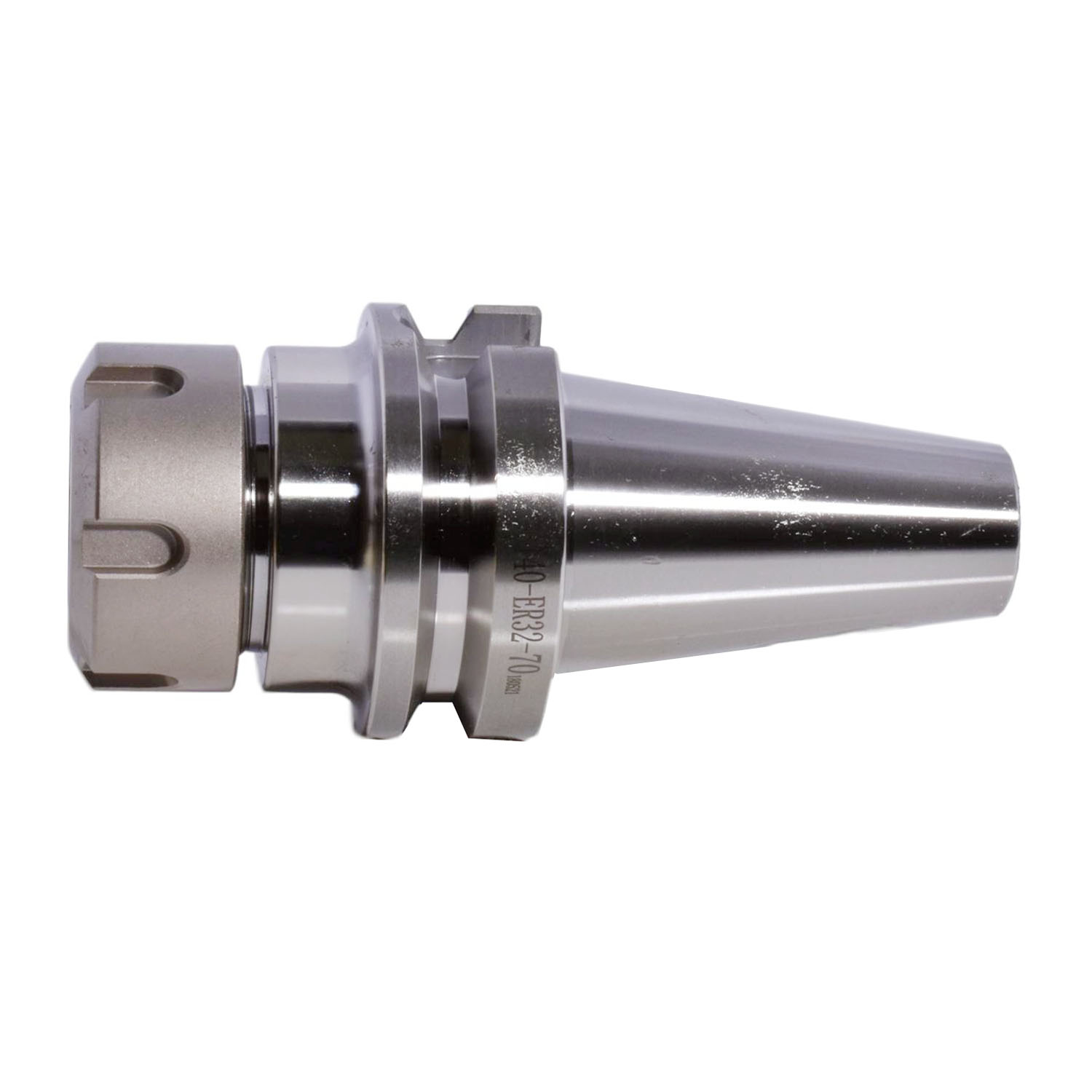

HIGH PRECISION M16 BT40 ER32 3.14″ COLLET CHUCK TOOL HOLDER G2.5 25000RPM

In Stock

SKU: BT40ER32M80

$29.99

HIGH PRECISION M16 BT40 ER32 3.14″ COLLET CHUCK TOOL HOLDER G2.5 25000RPM

High-Speed Cutting (G2.5 25000rpm) Balance Available

High Precision Runout: TIR  5μm or 0.00015 “



Qty
Compare

HIGH PRECISION M16 BT40 ER32 3.14″ COLLET CHUCK TOOL HOLDER G2.5 25000RPM

MODEL BT40 ER32 3.14″  RUN OUT (TIR) 0.00015″ NECK  DIAMETER d1 1.5″
HOLDER TYPE ER COLLET CHUCK CLAMPING RANGE  3/32-3/4″ CLAMPING SIZE ER32
SHANK TYPE BT40 DRAWBAR THREAD M16 X 2 COLLET NUT ER32 UM
BALANCE G2.5 25000rpm Gage Length L 3.14″ COOLANT YES



High-Speed Cutting (G2.5 25000rpm) Balance

High Precision Runout: TIR  5μm or 0.00015

Hardened:  surface HRC58 inside is HRC45

Protection: silver color

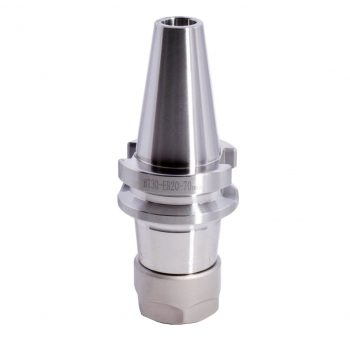

BT30 ER20 COLLET CHUCK TOOL HOLDER

BT40 TAPER TAPER D1 L FLANGE D
DRAWBAR THREAD BT30 M16X 2 44.45 80 63



Weight 2.5 lbs
Dimensions 15 × 45 × 65 in
Measurement system

Inch (in)

Product Category

Collet Chuck Tool Holder

Shank Type

BT40

Collet Series

ER32
