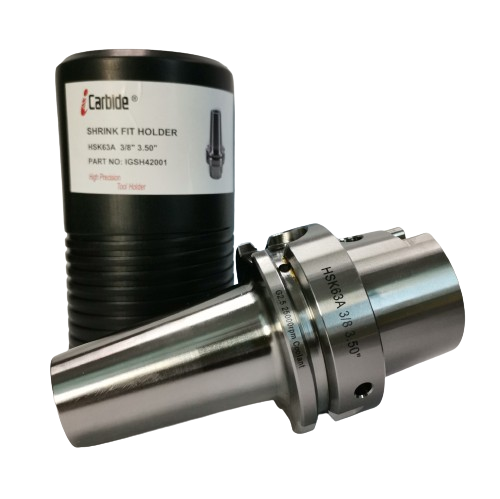

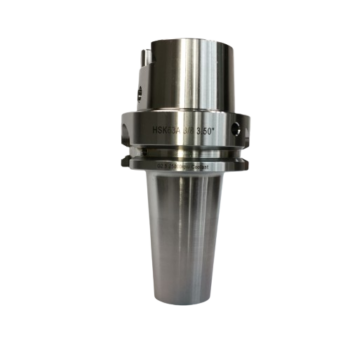

HSK63A 3/8 SHRINK FIT TOOL HOLDER GAGE LENGTH:3.50″ TIR:0.0001″

In Stock

SKU: HSK63ASF38350

$129.99

HSK63A 3/8″ SHRINK-FIT TOOL HOLDER GAGE LENGTH:3.50″

High-Speed Cutting (G2.5 25,000rpm) Balance Available

HSK63A  Shrink Fit Tool Holder  High Precision Runout: TIR  3μm or 0.0001 ”





Qty
Compare

HSK63A 3/8 SHRINK-FIT TOOL HOLDER

MODEL HSK63A  RUN OUT (TIR) 0.0001″ NECK  DIAMETER D  1.5″
HOLDER TYPE SHRINK FIT HOLDER BORE DIAMETER  3/8 BORE DEPTH 1.65″
SHANK TYPE HSK63A DRAWBAR THREAD M18 NOSE DIAMETER 1.7″
BALANCE G2.5 25,000rpm GAGE LENGTH 3.50″ COLOR SILVER

HSK63F TAPER 2.87° TAPER D1 TAPER LENGTH FLANGE DIAMETER
DRAWBAR THREAD M18x1 40mm 32mm 63mm



Weight 1.5 lbs
Dimensions 15 × 45 × 65 in
Measurement system

Inch (in)

Product Category

Shrink Fit Tool Holder

Shank Type

HSK63A
