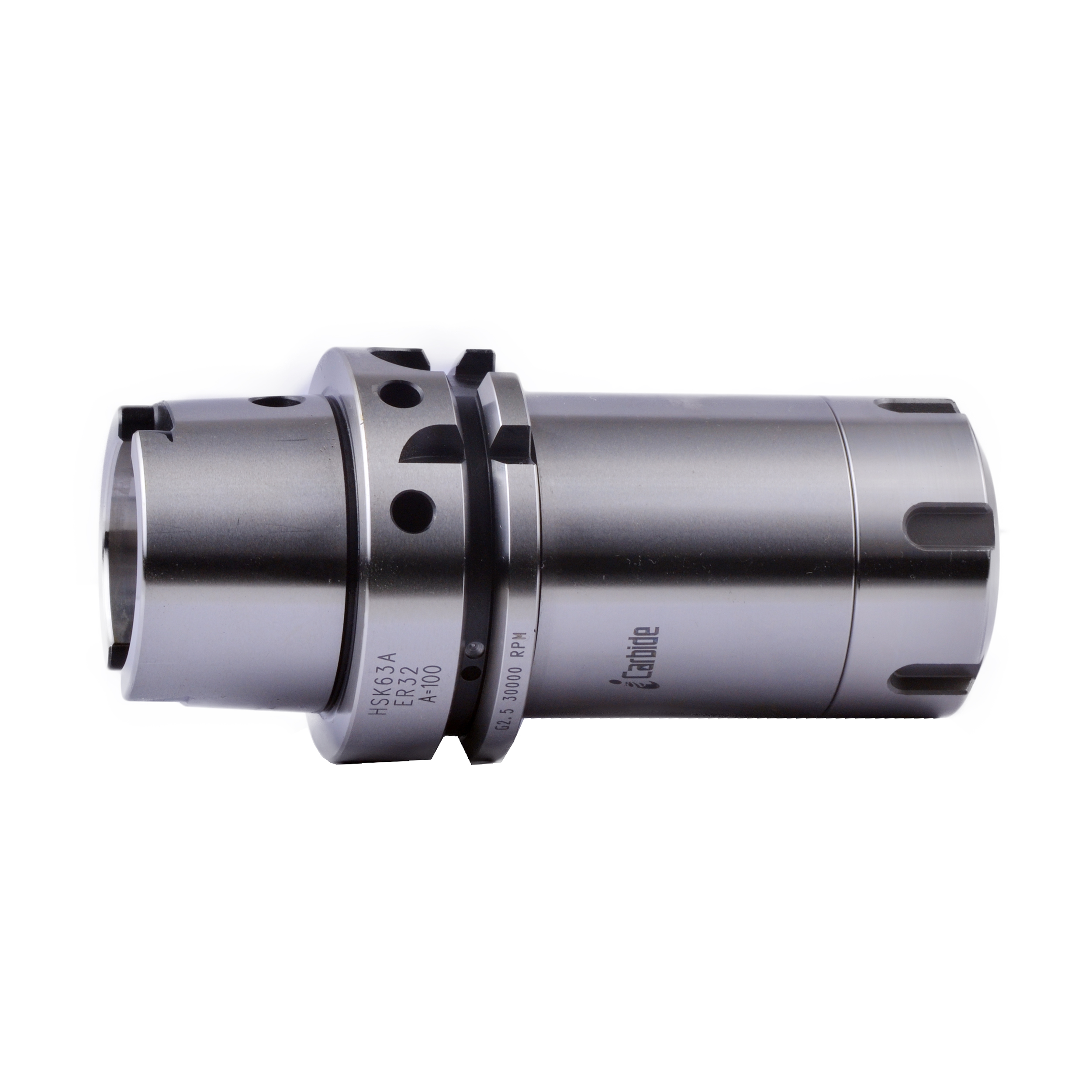

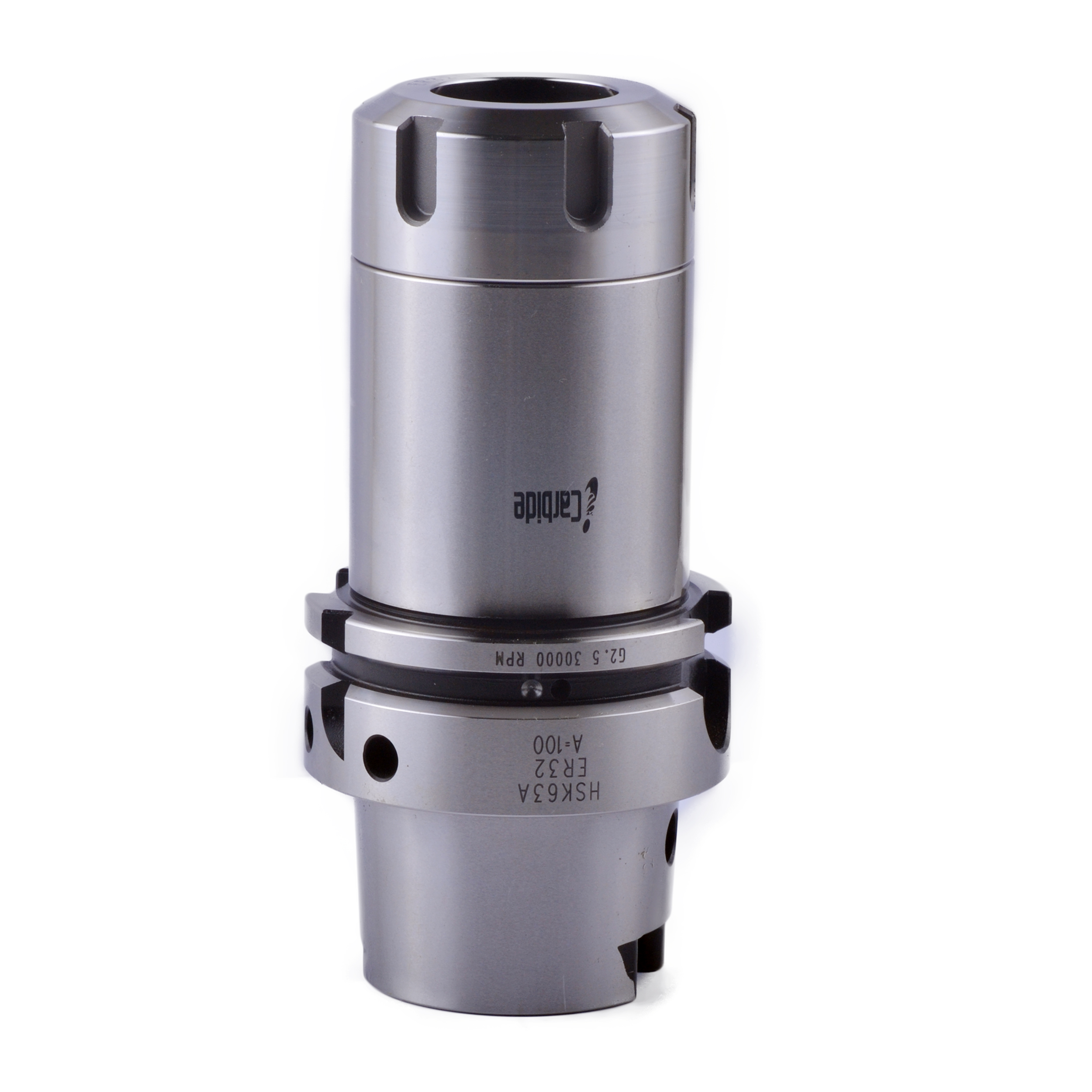

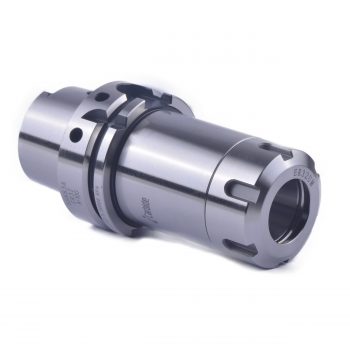

HSK63A ER32 GAGE LENGTH 4″ COLLET CHUCK TOOL HOLDER

In Stock

SKU: HSK63ASF34400-1

$89.99

HSK63A ER32 GAGE LENGTH 4″ COLLET CHUCK TOOL HOLDER

High-Speed Cutting (G2.5 25,000rpm) Balance Available

HSK63A  Collet Chuck Tool Holder  High Precision Runout: TIR  3μm or 0.0001 ”



Qty
Compare

HSK63A ER32 GAGE LENGTH 4″ COLLET CHUCK TOOL HOLDER

MODEL HSK63A RUN OUT (TIR) 0.0001″ NECK  DIAMETER D  1.5″
HOLDER TYPE SHRINK FIT HOLDER COLLET  TYPE   ER32 CLAMPING RANGE 1-20MM/3/4″
SHANK TYPE HSK63A DRAWBAR THREAD M12 NOSE DIAMETER 1.7″
BALANCE G2.5 25,000rpm GAGE LENGTH 4″ COLOR SILVER



Hardened:  surface HRC58 inside is HRC45

Protection: silver coated



Parameters Table



HSK63F TAPER 2.87° TAPER D1 TAPER LENGTH FLANGE DIAMETER
DRAWBAR THREAD M18x1 40mm 32mm 63mm

Weight 1.5 lbs
Dimensions 15 × 45 × 65 in
Measurement system

Inch (in)

Product Category

Collet Chuck Tool Holder

Shank Type

HSK63A

Collet Series

ER32
