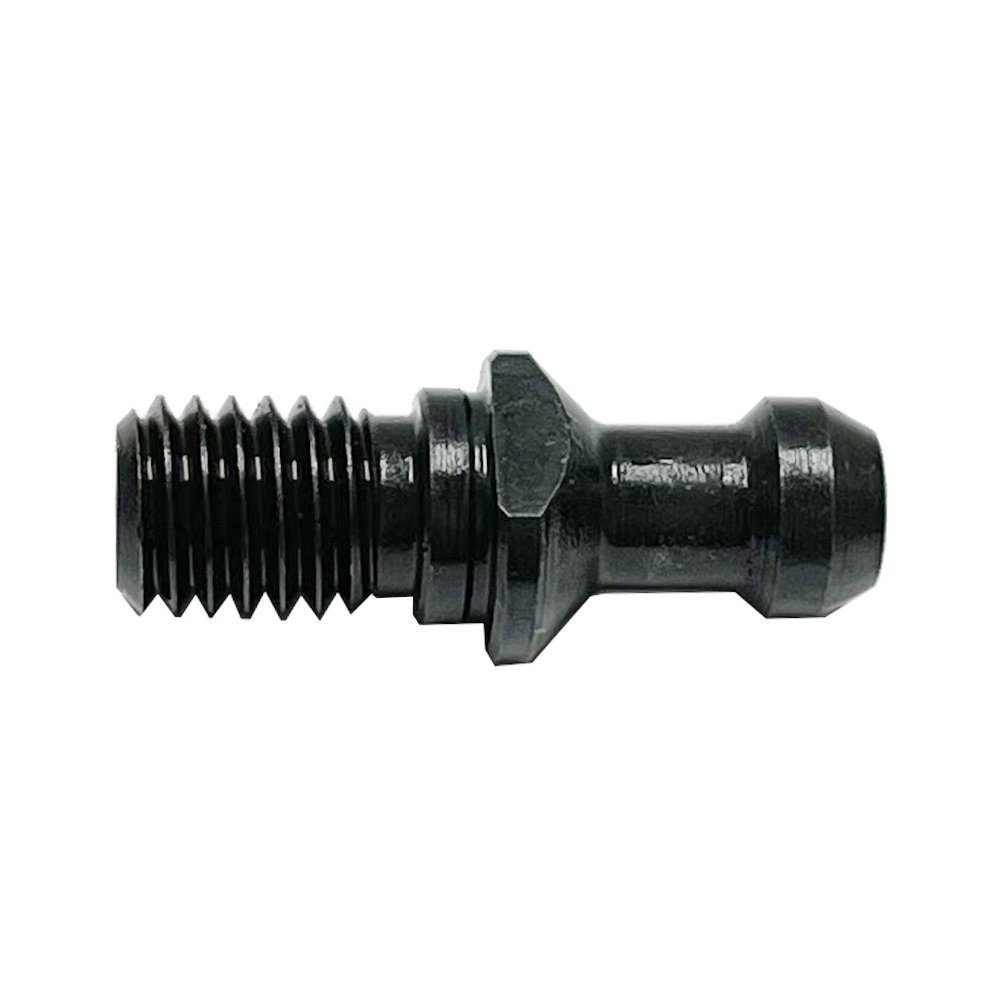

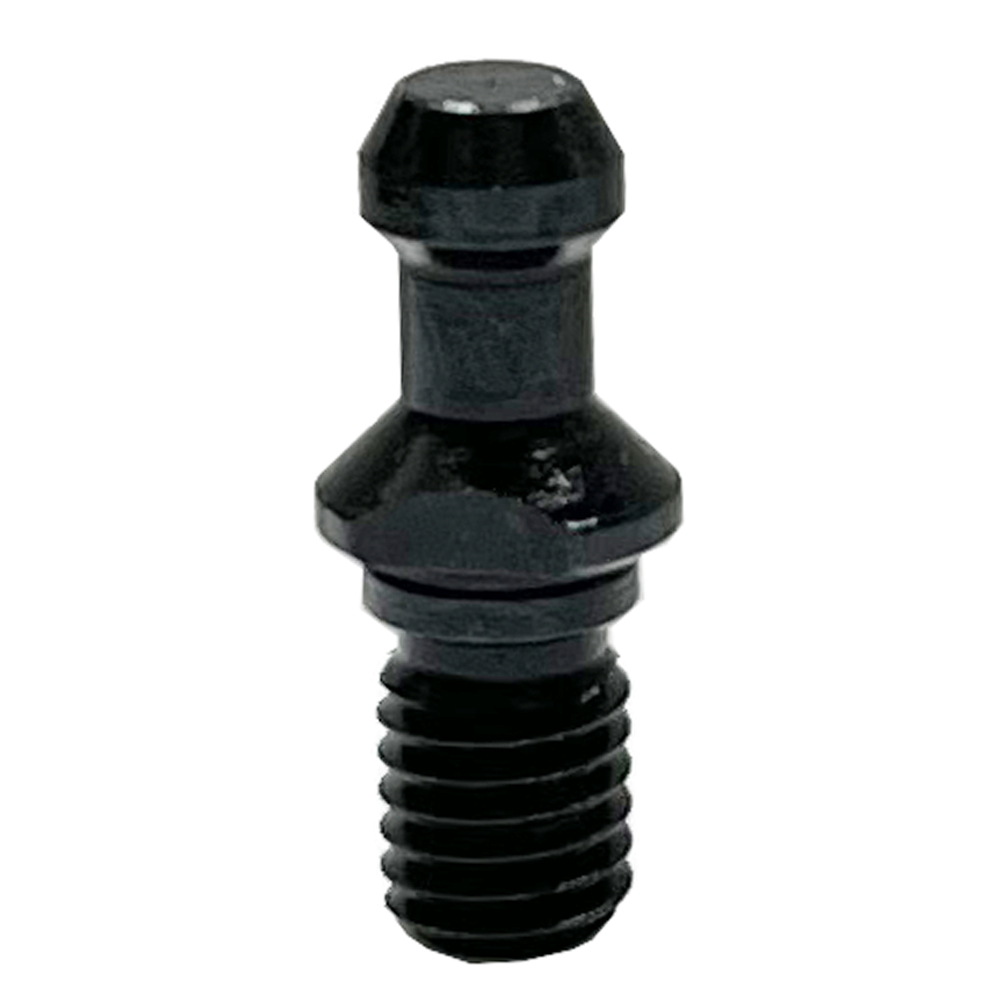

ISO20 M8 RETENTION KNOB PULL STUD

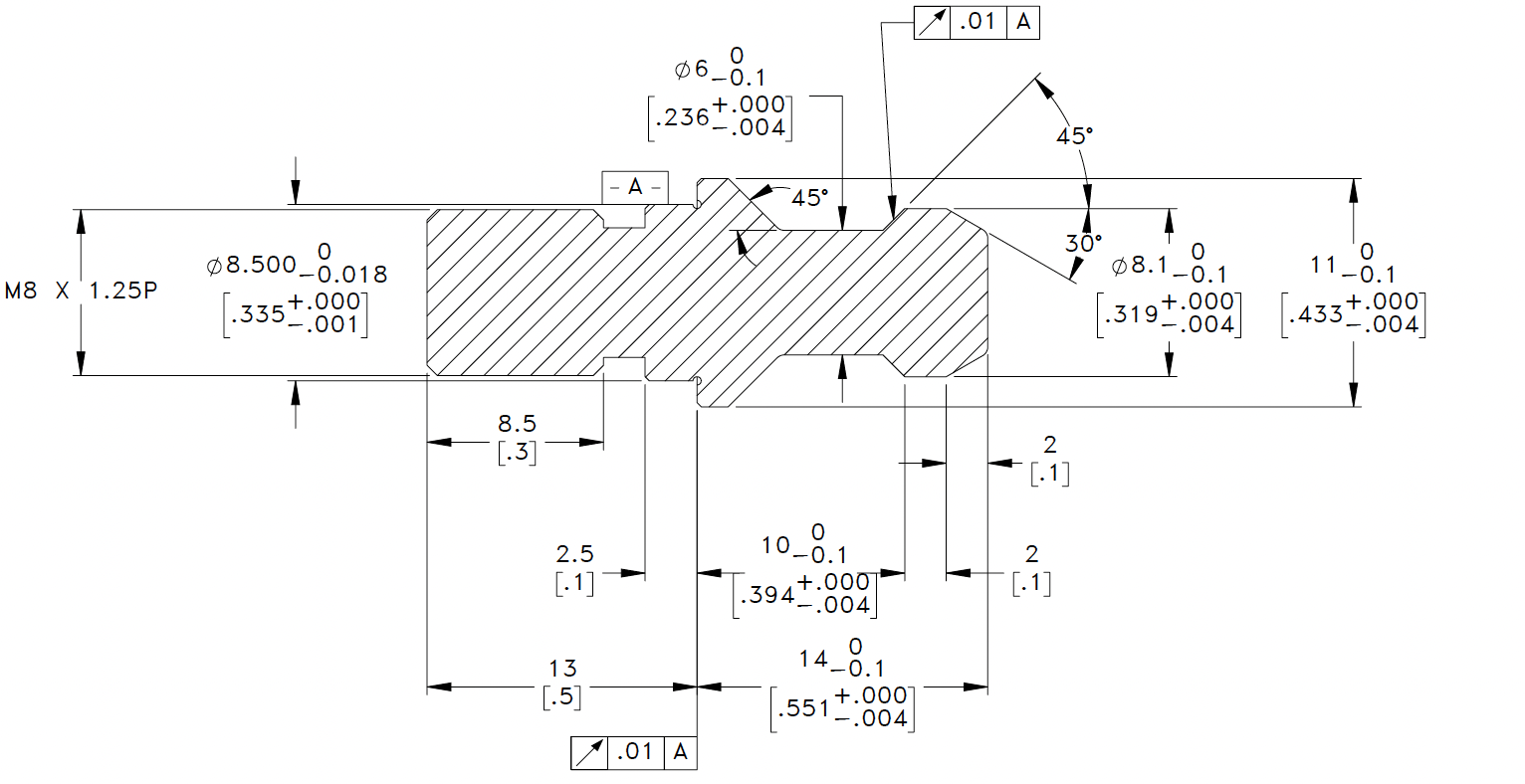

| MODEL | ISO20 | Â HEAD D | 11.4 | OVER-LENGTH L | 27 |
| Â THREAD | M8 | POLIT D2 | 8.5 | SHOULDER l1 | 12 |
| Â COLOR | Â OXIDE BLACK | NECK DIAMETER D1 | 6 | SHOULDER l2 | Â 9 |
| BRAND | Â iCarbide | Â HANG ANGLE | 45 | FLANGE H | 10 |
ISO20 M8 RETENTION KNOB PULL STUD
In Stock
$23.99
ISO20 M8 RETENTION KNOB PULL STUD HAAS SWISS MACHINE
| Weight | 2.5 lbs |
|---|---|
| Dimensions | 15 × 45 × 65 in |
| Measurement system | Metric (mm) |
| Product Category | Retention knob |
| Shank Type | ISO20 |
