Overview

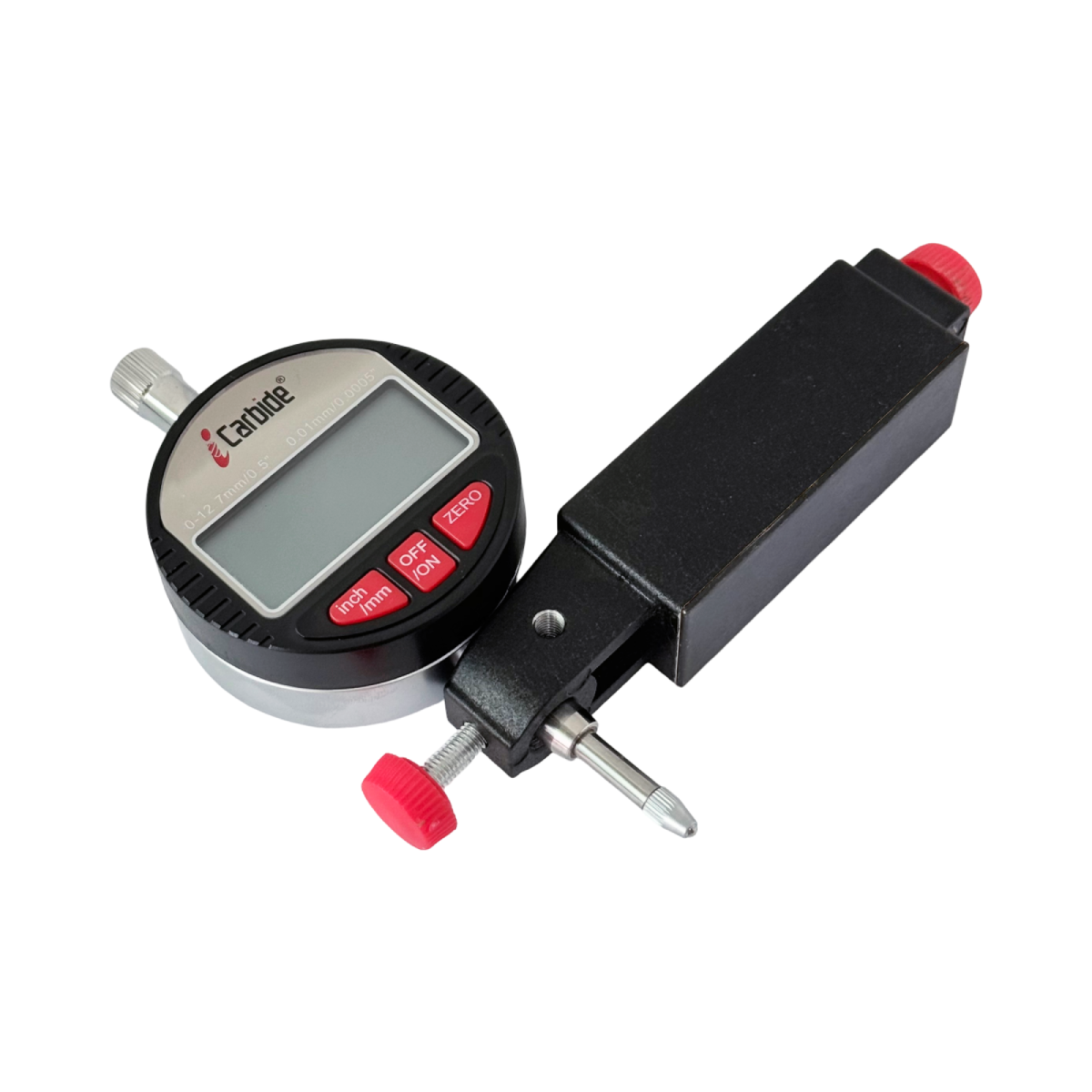

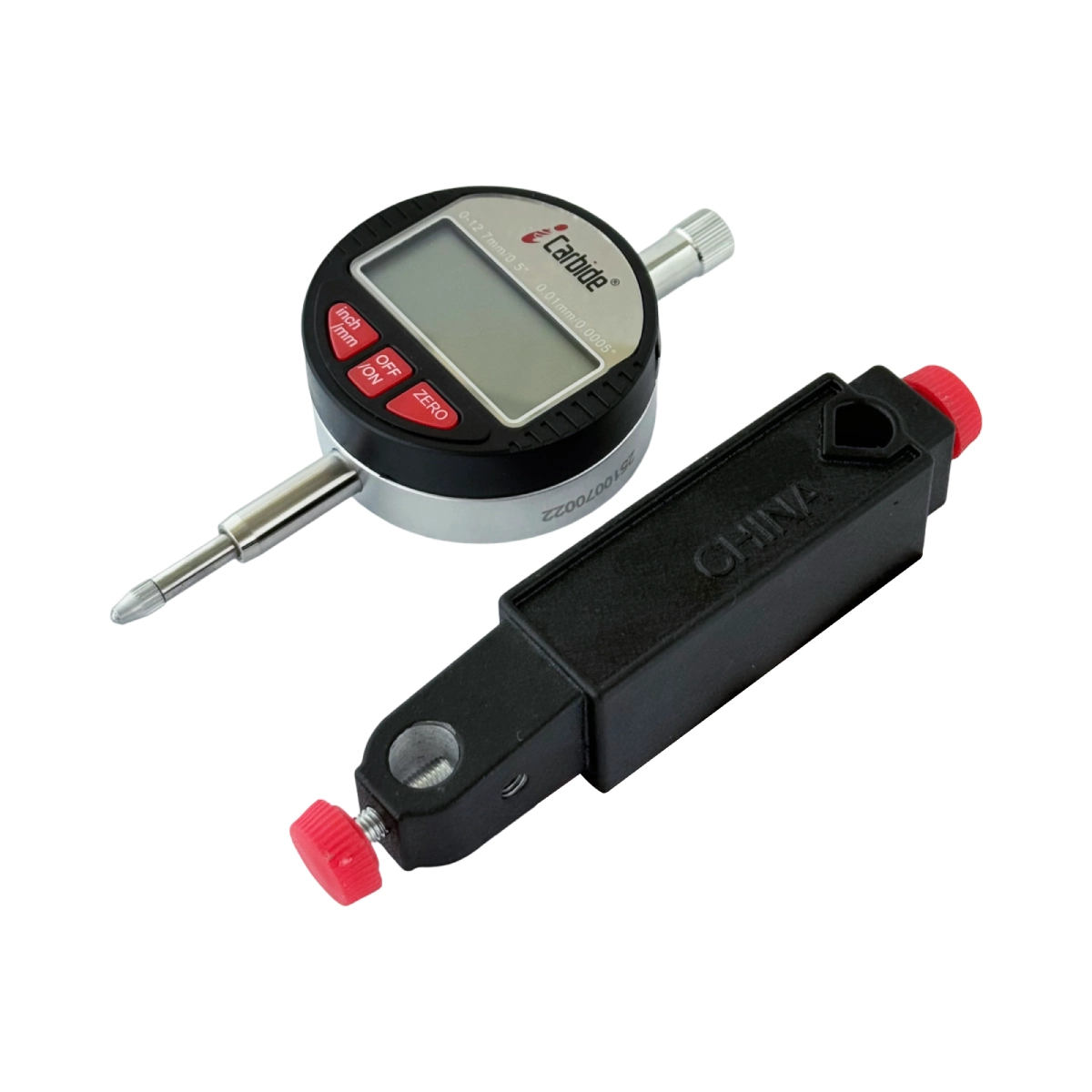

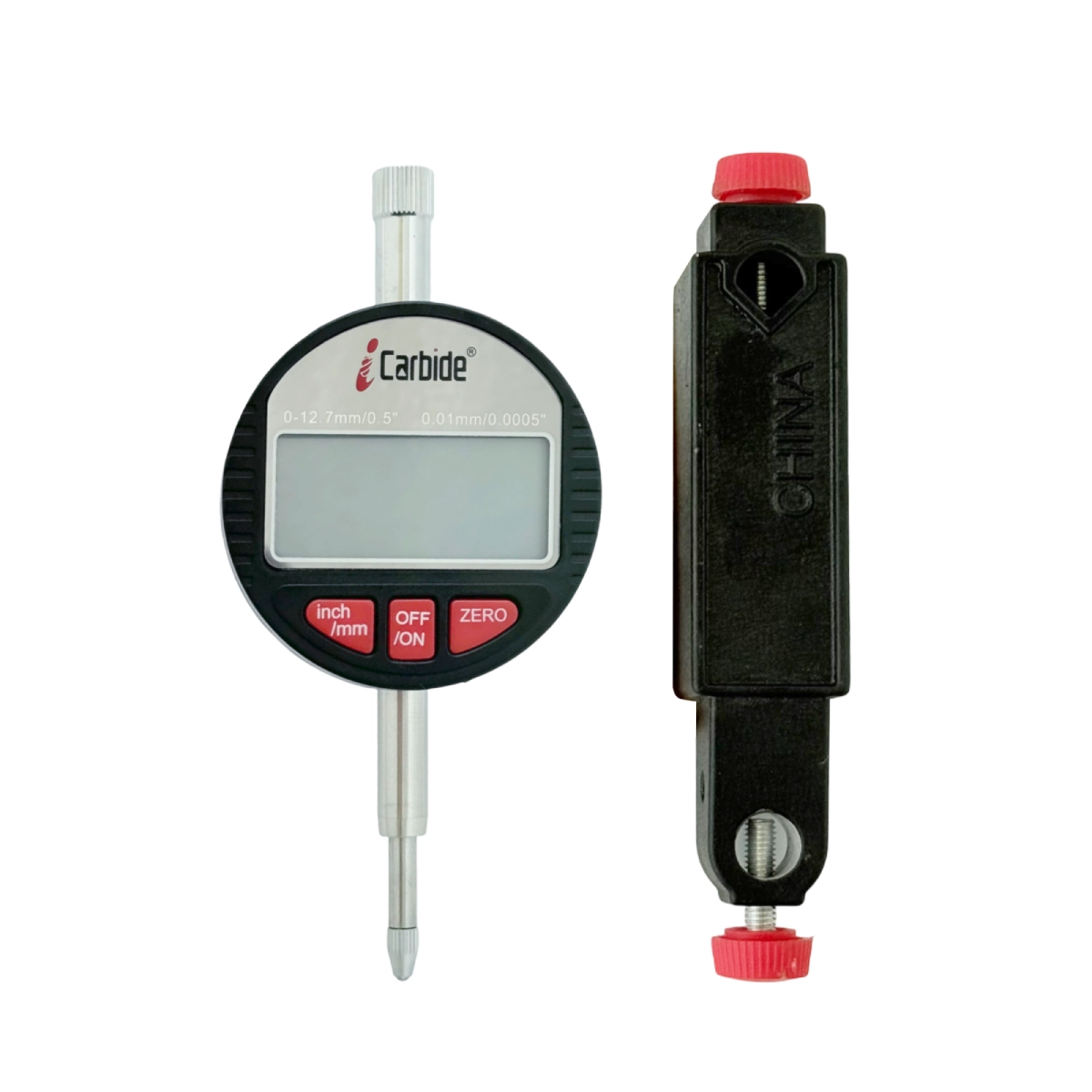

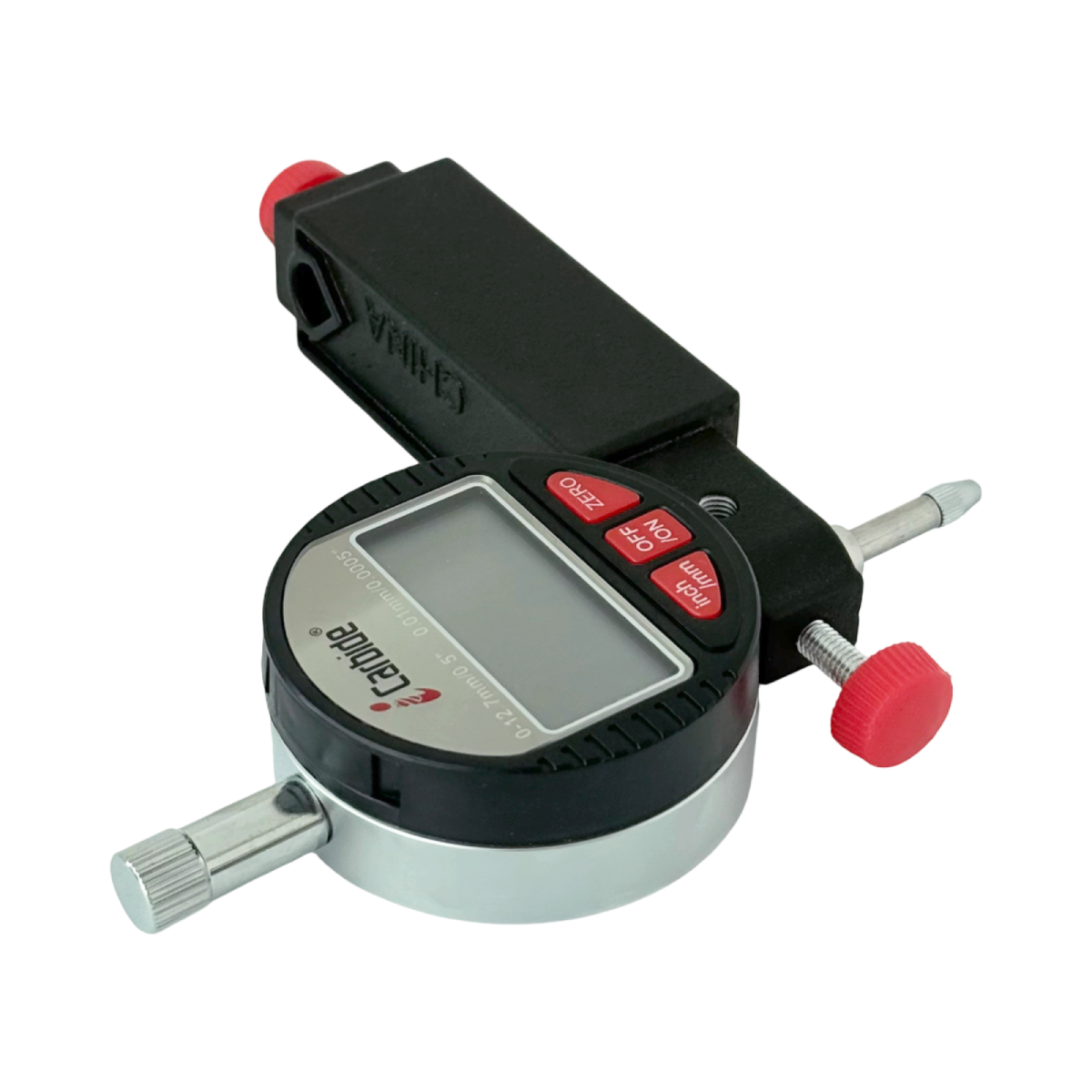

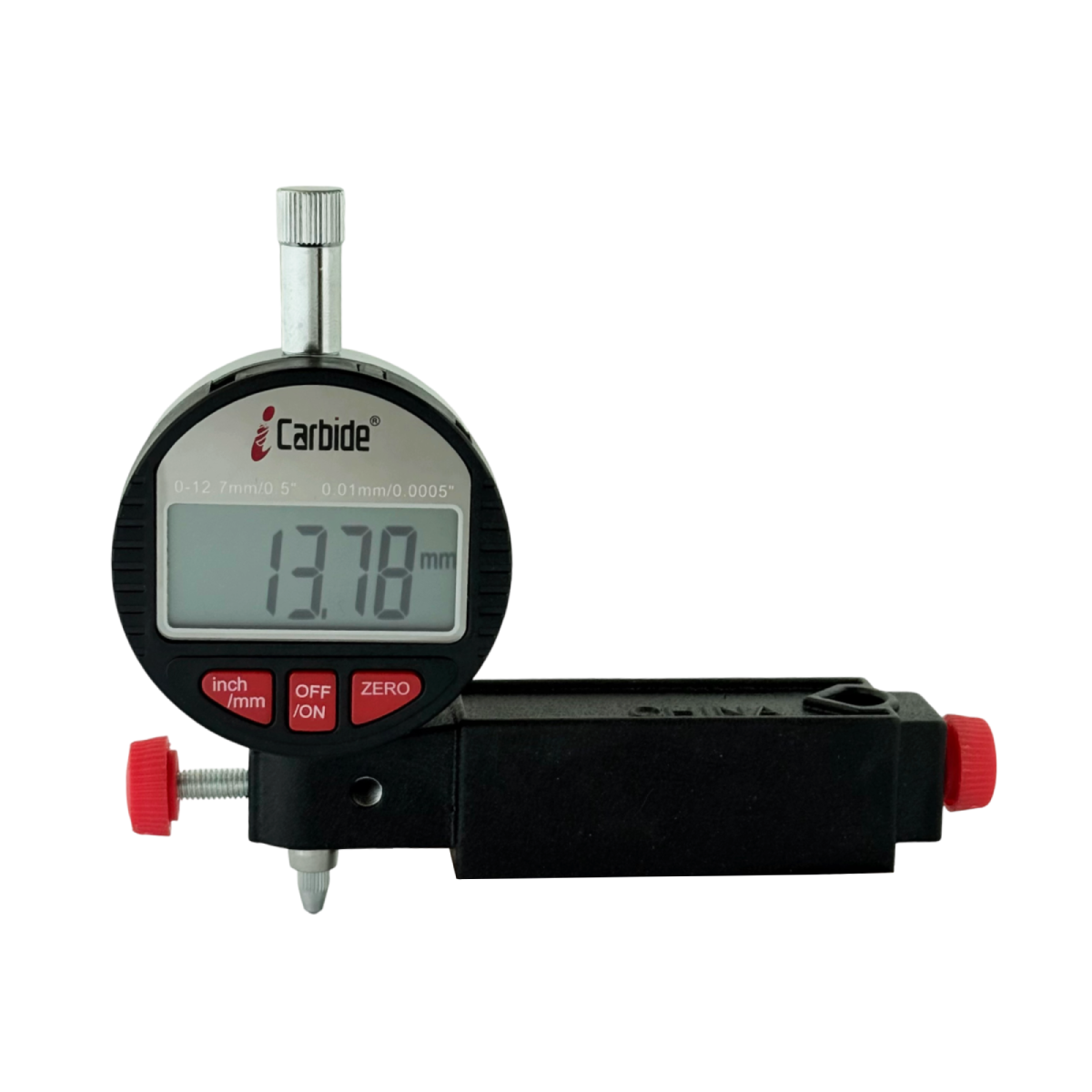

Achieve professional precision with our all-in-one Magnetic Base Indicator Holder Set. Designed for machinists, engineers, and quality control professionals, this set combines a powerful magnetic base with a highly accurate digital indicator for reliable measurements every time. The strong “Tiny-titan” base provides instant, secure mounting to any ferrous surface, while the flexible articulated arm allows for easy positioning in tight spaces. Ready to use straight out of the box, it’s the perfect tool for workshop, production floor, or R&D applications.
Technical Specifications
Complete Set Specifications
| Component | Parameter | Specification |
|---|---|---|
| Magnetic Base (Tiny-titan) | Holding Force | ≥ 70 kgf (154 lbs) |
| Base Dimensions | 30 mm (L) × 23 mm (W) × 28 mm (H) | |
| Weight | 0.68 kg (1.5 lbs) | |
| Switch Type | Knob Lock | |
| Material / Finish | Steel, Nickel-Plated | |
| Digital Indicator | Measuring Range | 0 – 12.7 mm (0 – 0.5 inch) |
| Resolution | 0.01 mm / 0.0005″ | |
| Display | LCD with Backlight | |
| Functions | Zero, Hold, mm/inch Conversion | |
| Battery | 1 x button battery (Included) | |
| Contact Point | 2.5 mm Carbide Tip |
What’s Included in the Box
- Tiny-titan Magnetic Base
- Digital Indicator (0-12.7mm / 0-0.5″)
- Indicator Mounting Clamp
- Carbide Contact Point (2.5mm)
- Battery
- Protective Storage Case
- User Manual
Applications
- Machine Setup & Alignment (Mills, Lathes, Grinders)
- Quality Control & Dimensional Inspection
- Tool, Die, and Fixture Alignment
- Run-out and Concentricity Checking
- General Workshop and Maintenance Tasks
