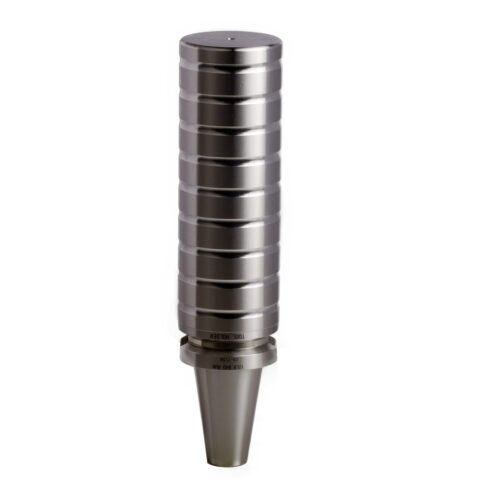

NEW BT40 BLANK TOOL HOLDER BAR

In Stock

SKU: CAT4001200B-1

$69.99

Wishlist
Compare

BT40 BLANK TOOL HOLDER BAR 12inch
For all BT40 spindle machines





Qty
Compare
Categories:

BT40 BLANK TOOL HOLDER ABR

MODEL BlANK TOOL HOLDER  RUN OUT (TIR) 0.0001″ NECK  DIAMETER D 1.5″
HOLDER TYPE PROBE FINDER SHANK DIAMETER  1.5″ NECK LENGTH 1.5″
SHANK TYPE BT40 DRAWBAR THREAD 5/8-11″ NECK DIAMETER 0.4″
BALANCE MAX 15000rpm Gage Length 12″ COOLANT NO



work all BT40 spindle

The holder used standard length

Using for your work table surface

Made in tool steel with precision ground

Protection: oxide black









Drawings & Parameters Table



CAT40 TAPER 8° TAPER D1 L1 FLANGE D
DRAWBAR THREAD CAT40 5/8-11 UNC 1.75″ 2.69″ 2.5″

Related Tool Holder

Order NoModel (Silver Coated)L1(inch)D（inch)BalanceRun Out(TIR)
IC0001CAT40 ER16 2.5"2.51.1G2.5 /25000rpm0.003μm
IC0002CAT40 ER16 4"41.1G2.5 /25000rpm0.003μm
IC0003CAT40 ER16 6"61.1G2.5 /25000rpm0.003μm
IC0004CAT40 ER20 2.5"2.51.34G2.5 /25000rpm0.003μm
IC0005CAT40 ER20 4"41.34G2.5 /25000rpm0.003μm
IC0006CAT40 ER20 6"61.34G2.5 /25000rpm0.003μm
IC0007CAT40 ER25 2.5"2.51.65G2.5 /25000rpm0.003μm
IC0008CAT40 ER25 4"41.65G2.5 /25000rpm0.003μm
IC0009CAT40 ER25 6"61.65G2.5 /25000rpm0.003μm
IC0010CAT40 ER32 2.5"2.51.97G2.5 /25000rpm0.003μm
IC0011CAT40 ER32 4"41.97G2.5 /25000rpm0.003μm
IC0012CAT40 ER32 6"61.97G2.5 /25000rpm0.003μm
IC0013CAT40 ER40 4"42.48G2.5 /25000rpm0.003μm
IC0014CAT40 Er32 0.5"0.50.75G2.5 /25000rpm0.003μm
IC0015CAT40 ER11M 6"60.75G2.5 /25000rpm0.003μm
IC0016CAT40 ER11M 4"40.75G2.5 /25000rpm0.003μm
IC0017CAT40 ER16M 2"20.87G2.5 /25000rpm0.003μm
IC0018CAT40 ER16M 4"40.87G2.5 /25000rpm0.003μm
IC0019CAT40 ER20M 2"21.1G2.5 /25000rpm0.003μm
IC0020CAT40 ER20M 4"41.1G2.5 /25000rpm0.003μm

Weight 1.5 lbs
Dimensions 15 × 45 × 65 in
Measurement system

Inch (in)
Product Category

Blank Tool Holder Bar
Shank Type

BT40
