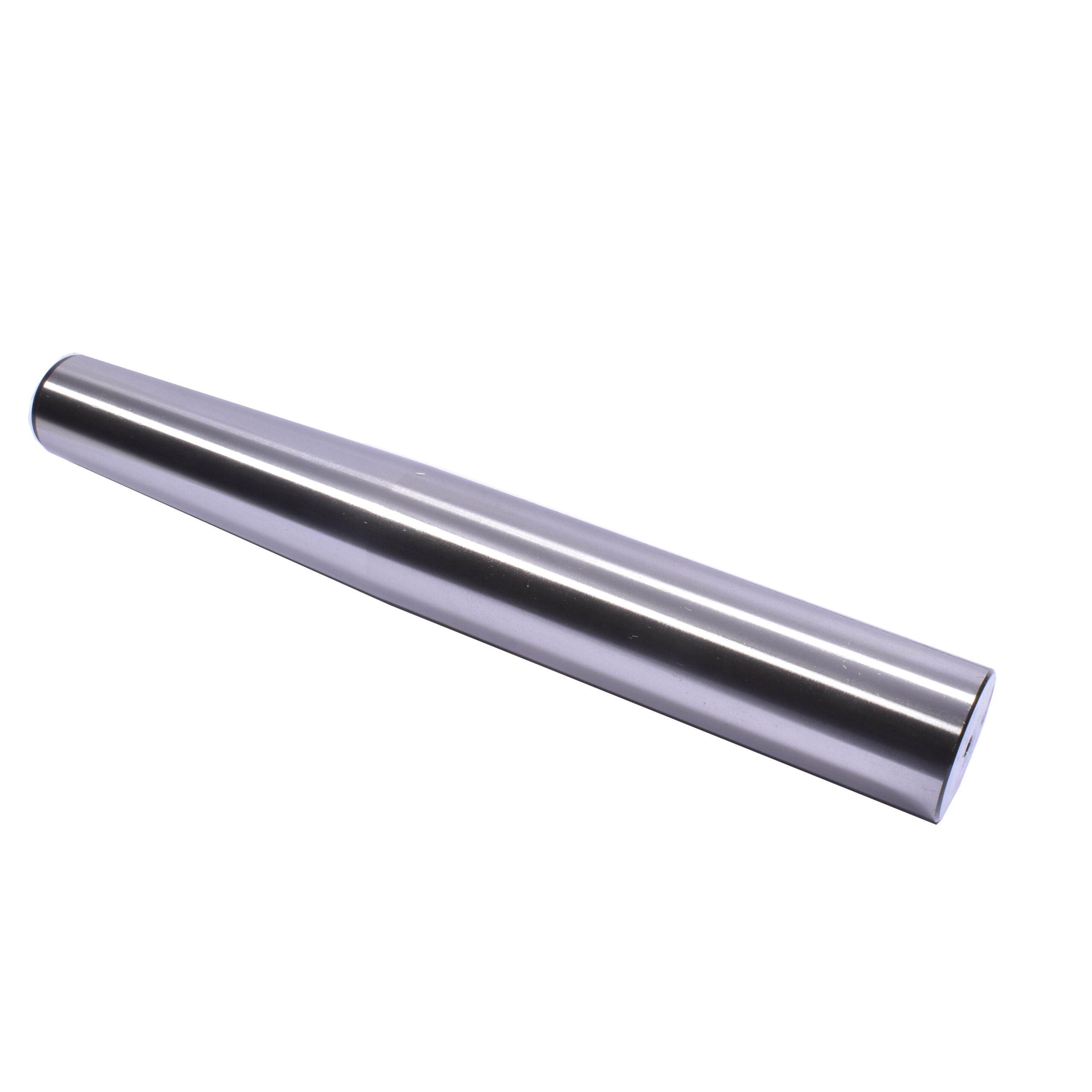

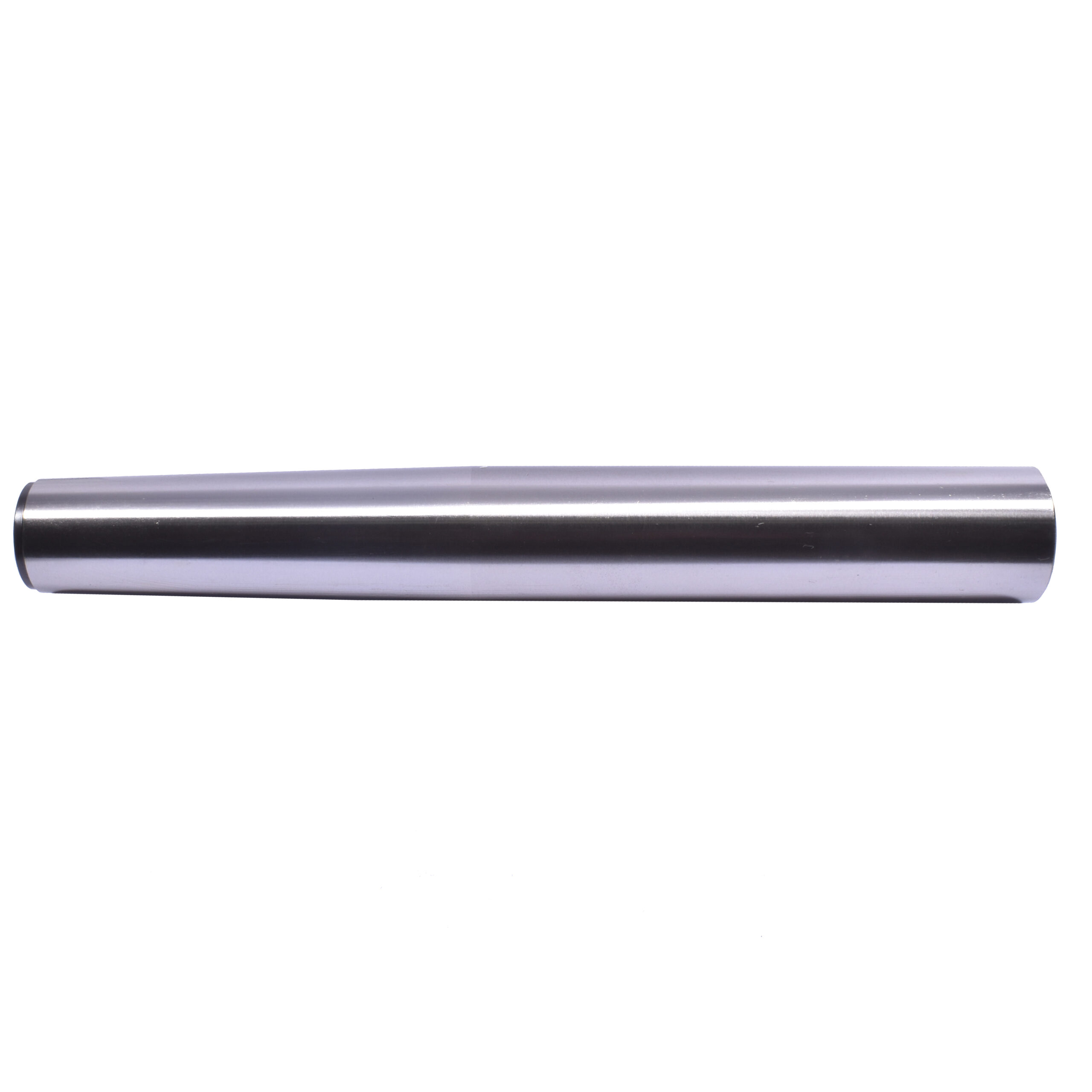

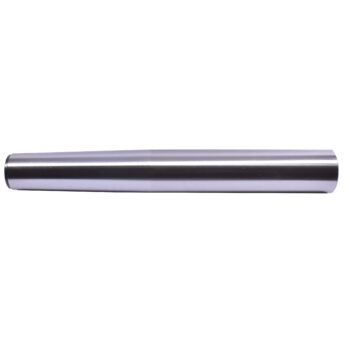

NEW MT4 TEST BAR GAGE TOOL CALIBRATION ALIGNMENT LATHE TOOL

In Stock

SKU: MT4TESTA

$46.99

NEW MT4 TEST BAR GAGE TOOL CALIBRATION ALIGMENT LATHE TOOL

Qty
Compare

NEW MT4 TEST BAR GAGE TOOL CALIBRATION ALIGNMENT LATHE TOOL

MODEL MT4 MORSE TAPER  RUN OUT (TIR) 0.0001″
HOLDER TYPE  MT4 GAGE LENGTH 5.0 inch
DIAMETER 32MM  DRAWBAR THREAD NO

RELATED MT COLLET CHUCK

MODEL THREAD  COLLET NUT COLLETS ORDER NO
MT1 ER8 M6 ER8 ER8 MTER8
MT1 ER11 M6 ER11 HEX ER11 MT1ER11
MT1 ER16 M6 ER16 HEX ER16 MT1ER16
MT1 ER20 M6 ER20 HEX ER20 MT1ER20
MT2 ER11 M10 / 3/8 ER11 HEX ER11 M2ER11
MT2 ER16 M10 / 3/8 ER16 HEX ER16 MT2ER16
MT2 ER20 M10 / 3/8 ER20 HEX ER20 MT2ER20
MT2 ER25 M10 / 3/8 ER25 UM ER25 MT2ER25
MT2 ER32 M10 / 3/8 ER32 UM ER32 MT2ER32
MT2 ER40 M10 / 3/8 ER40 UM ER40 MT2ER40
MT3 ER16 M12 / 1/2 ER16 HEX ER16 MT3ER16
MT3 ER20 M12 / 1/2 ER20 HEX ER20 MT3ER20
MT3 ER25 M12 /1/2 ER25 UM ER25 MT3ER25
MT3 ER32 M12 / 1/2 ER32 UM ER32 MT3ER32
MT3 ER40 M12 / 1/2 ER40 UM ER40 MT3ER40
MT4 ER25 M16  / 5/8 ER25 UM ER25 MT4E525
MT4 ER32 M16  / 5/8 ER32 UM ER32 MT4ER32
MT4 ER40 M16  / 5/8 ER40 UM ER40 MT4ER40
MT4 ER50 M16  / 5/8 ER50 UM ER50 MT4ER50
MT5 ER40 M25 / 1-8″ ER40 UM ER40 MT5ER40
MT5 ER50 M25 / 1-8″ ER50 UM ER50 MT5ER50



RELATED R8 COLLET CHUCK

MODEL THREAD GAGE LENGTH CLAMPING TYPE COLLET NUT TYPE ORDER NO
R8 ER11 7/16-20 1.3″ ER11 HEX. R8ER11IN
R8 ER16 7/16-20 1.5″ ER16 HEX R8ER16IN
R8 ER16 M12 1.4″ ER16 HEX R8ER16M
R8 ER20 7/16-20 1.5″ ER20 HEX R8ER20IN
R8 ER20 M12 1.5″ ER20 HEX R8ER20M
R8 ER25 7/16-20 1.5″ ER25 UM R8ER25IN
R8 ER25 M12 1.5″ ER25 UM R8ER25M
R8 ER32 7/16-20 2″ ER32 UM R8ER32IN
R8 ER32 M12 2″ ER32 UM R8ER32M
R8 ER40 7/16-20 2.2″ ER40 UM R8ER40IN
R8 ER40 M12 2.2″ ER40 UM R8ER40M

Weight 1.5 lbs
Dimensions 15 × 45 × 65 in
Measurement system

Inch (in)

Product Category

Calibration Alignment Lathe Tool

Shank Type

MT4
