U Drill Inserts, WCMX040208 Drill Carbide Inserts, Indexable Insert For Drilling, Pack of 10

In Stock

SKU: DIWCMX040208

$25.00

Insert Style: WCMX

Insert Material: Carbide

Used: For drilling

Primary Workpiece Material: Universal

Qty
Compare

WC SERIES INSERT SPECIFICATIONS

✔ WCMX040208 Drill Carbide Inserts,Pack of 10, SCREWS and WRENCHES NOT INCLUDED.

Specs

Details

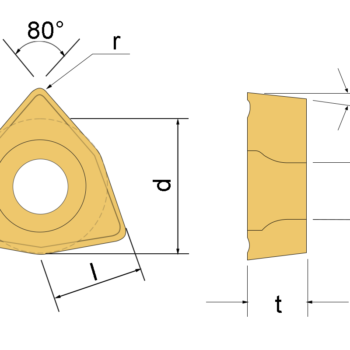

Insert Code WCMX040208
Coated ✔
Cutting Edge Length (I)/mm 4.3
d/mm 6.35
Thickness (t) / mm 2.38
Chamfer (r) / mm 0.8
d1 2.8
Screw M2.5X6
Wrench T8

PROCESSABLE WORKPIECE MATERIALS

Steel
P
✔
Stainless Steel
M
✔
Cast Iron
K
Non-ferrous Material
N
✔

RECOMMENDED INDEXABLE INSERT DRILL BODIES

Which drill bits are our wc serices inserts suitable for?

  • U Drills
    • 2D U Drills- Indexable Drill Bodies
    • 3D U Drills- Indexable Drill Bodies
    • 4D U Drills- Indexable Drill Bodies
    • 5D U Drills- Indexable Drill Bodies
Measurement system

Metric (mm)

Sales Unit

set

Product Category

Drill carbide inserts

SDI Material

Carbide

Drill carbide insert chamfer

0.8mm
