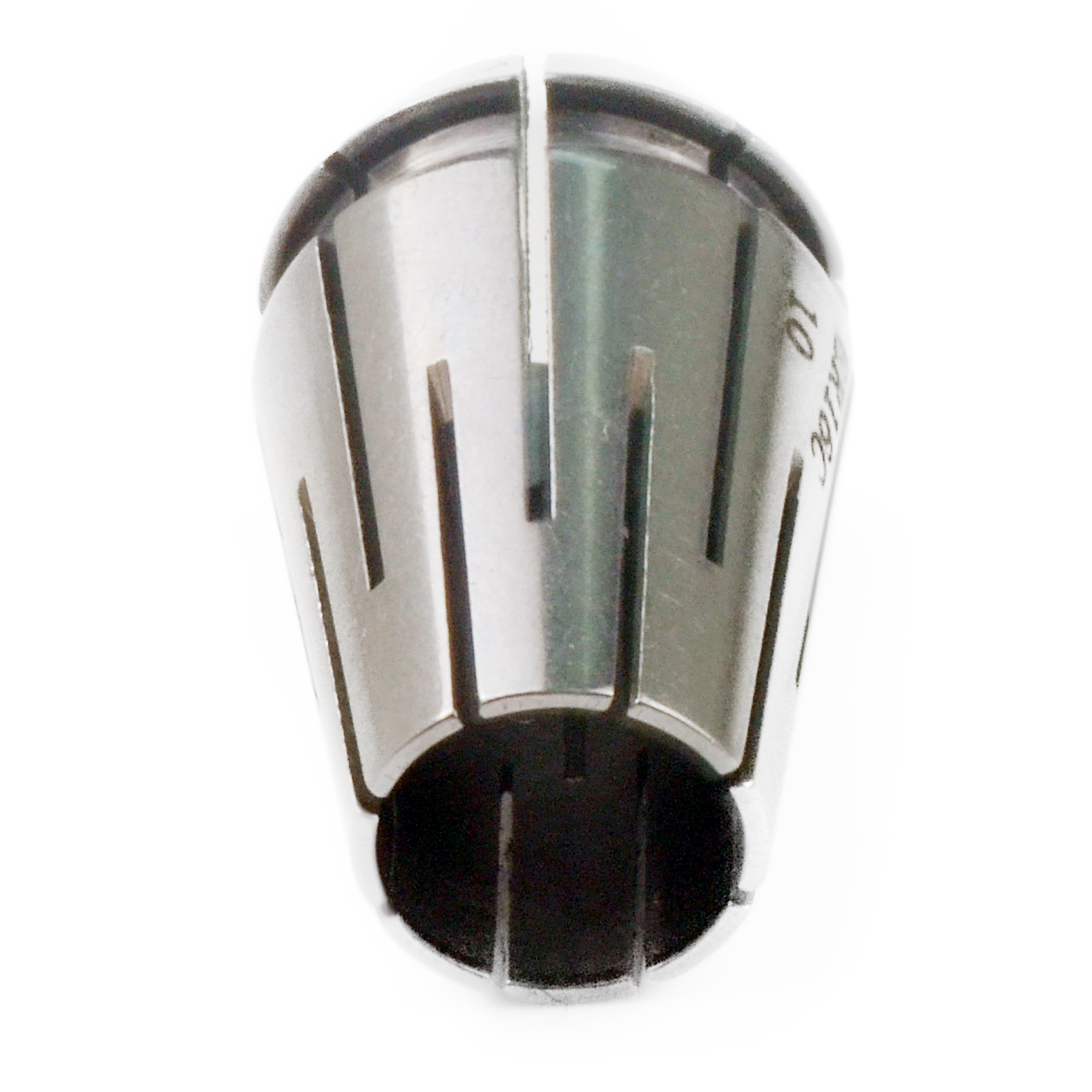

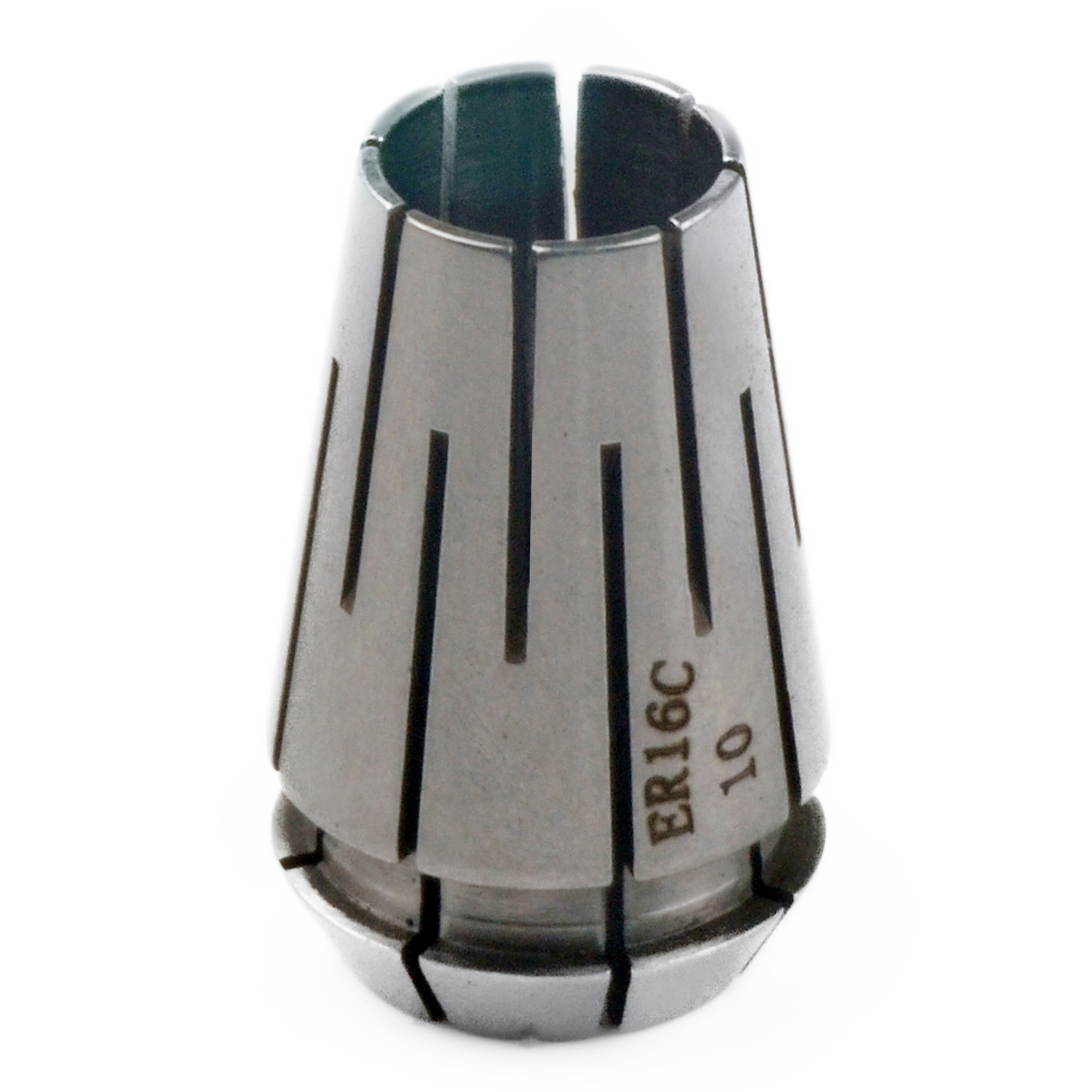

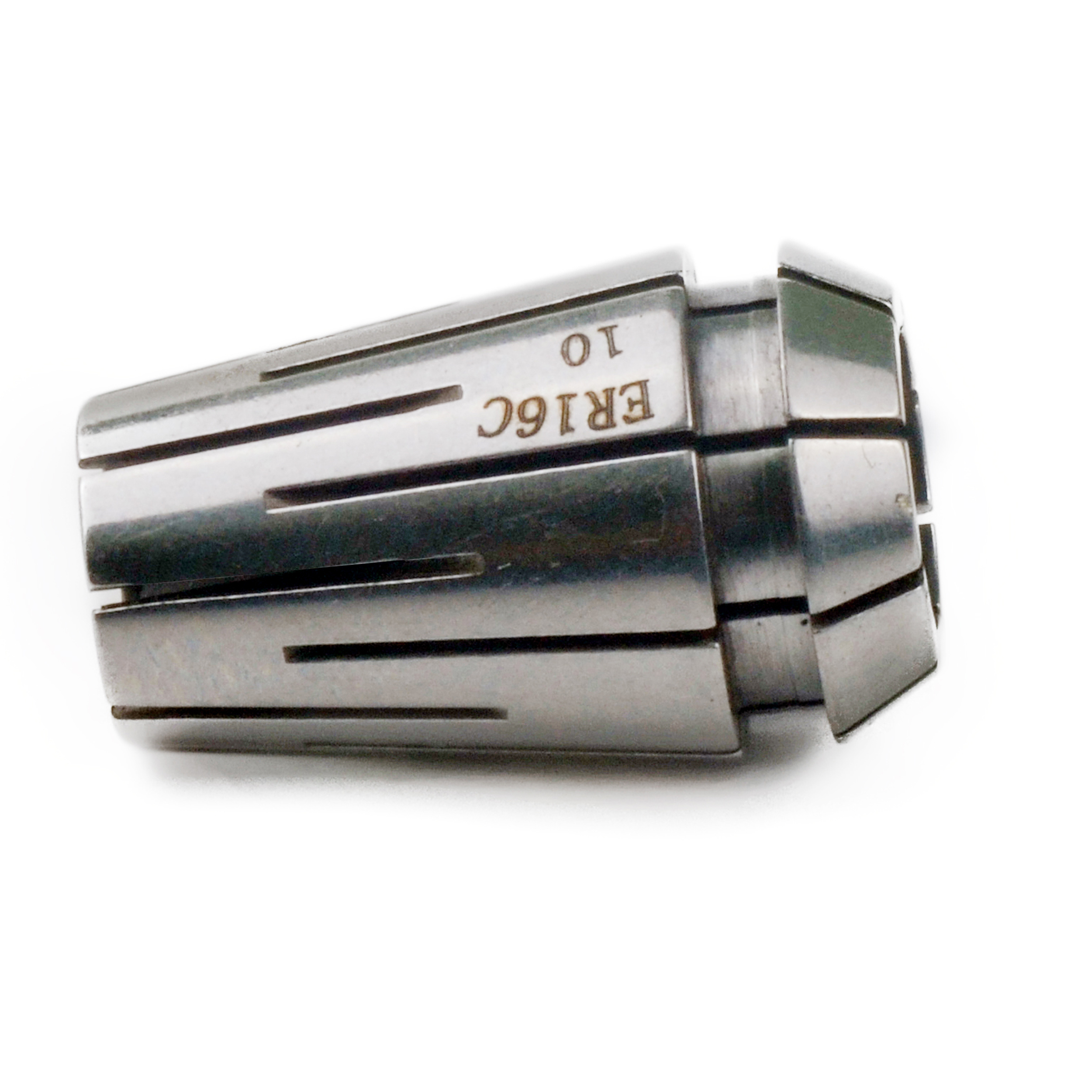

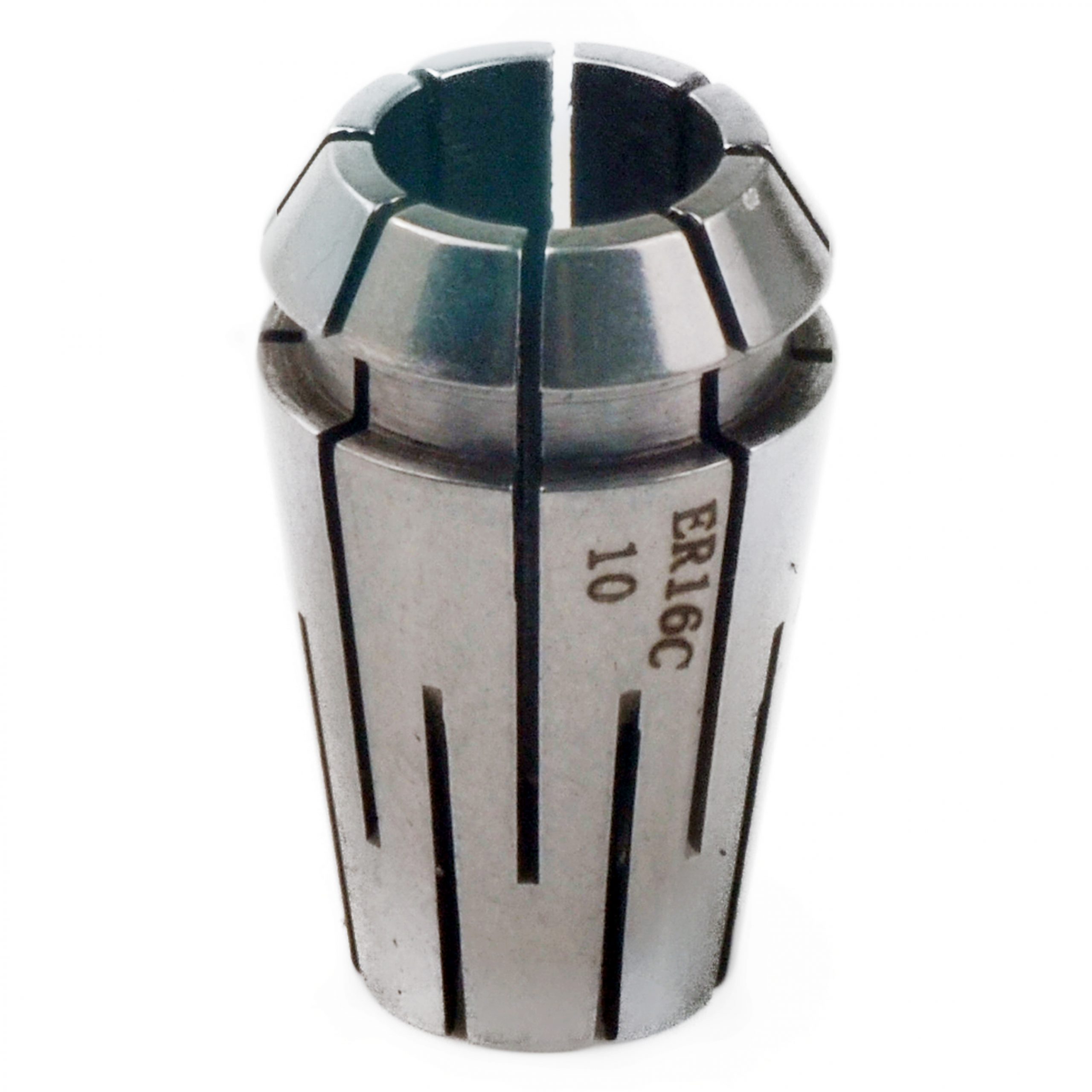

ULTRA PRECISION 10MM ER16 STEEL SEALED COOLANT COLLET

In Stock

SKU: SER16010M

$16.99

Use: For all DIN6499 standard  ER Steel sealed coolant collets

Finishing & Rough Cutting: High precision run out saving your cost-effective

Precision:High Precision Runout: TIR 5μm or 0.0002

Hardened:Outside: HRC48  Inside: HRC32

Qty

HIGH PRECISION ER STEEL SEALED COOLANT COLLET

STEEL SEALED COOLANT COLLET ER16 MATERIAL SUJ2
CLAMPING RANGE 10MM HARDNESS HRC45
RUN OUT (TIR) 0.0002 SIZE 0.66X1.08
BRAND iCarbide USA TAPER 16°



Use: For all DIN6499 standard tool holder in ER16 steel sealed collets

Finishing & Rough Cutting:  High precision run out saving your cost-effective

Precision: High Precision Runout: TIR 5μm or 0.0002″

Hardened:Outside: HRC48  Inside: HRC32

 Drawings



Related ER Collets

Order NODLClamping Ф mmRun OutSlotPrice
ICER110111.5181≤ 10μm169.99
ICER110211.5181.5≤ 10μm169.99
ICER110311.5182≤ 10μm167.99
ICER110411.5182.5≤ 5μm167.99
ICER110511.5183≤ 5μm167.99
ICER110611.5183.5≤ 5μm167.99
ICER110711.5184≤ 5μm167.99
ICER110811.5184.5≤ 5μm167.99
ICER110911.5185≤ 5μm167.99
ICER111011.5185.5≤ 5μm167.99
ICER111111.5186≤ 5μm167.99
ICER111211.5186.5≤ 5μm167.99
ICER111311.5187≤ 5μm167.99
ICER16011727.51≤ 10μm169.99
ICER16021727.52≤ 5μm169.99
ICER16031727.53≤ 5μm166.99
ICER16041727.54≤ 5μm166.99
ICER16051727.55≤ 5μm166.99
ICER16061727.56≤ 5μm166.99
ICER16071727.57≤ 5μm166.99
ICER16081727.58≤ 5μm166.99
ICER16091727.59≤ 5μm166.99
ICER16101727.510≤ 5μm166.99
ICER20012131.51≤ 10μm169.99
ICER20022131.52≤ 10μm169.99
ICER20032131.53≤ 5μm166.99
ICER20042131.54≤ 5μm166.99
ICER20052131.55≤ 5μm166.99
ICER20062131.56≤ 5μm166.99
ICER20072131.57≤ 5μm166.99
ICER20082131.58≤ 5μm166.99
ICER20092131.59≤ 5μm166.99
ICER20102131.510≤ 5μm166.99
ICER20112131.511≤ 5μm166.99
ICER20122131.512≤ 5μm166.99
ICER20132131.513≤ 5μm166.99
ICER250126341≤ 5μm1612.99
ICER250226342≤ 5μm1612.99
ICER250326343≤ 5μm168.99
ICER250426344≤ 5μm168.99
ICER250526345≤ 5μm168.99
ICER250626346≤ 5μm168.99
ICER250726347≤ 5μm168.99
ICER250826348≤ 5μm168.99
ICER250926349≤ 5μm168.99
ICER2510263410≤ 5μm168.99
ICER2511263411≤ 5μm168.99
ICER2512263412≤ 5μm168.99
ICER2513263413≤ 5μm168.99
ICER2514263414≤ 5μm168.99
ICER2515263415≤ 5μm168.99
ICER2516263416≤ 5μm168.99
ICER320133402≤ 5μm1613.99
ICER320233403≤ 5μm1613.99
ICER320333404≤ 5μm169.99
ICER320433405≤ 5μm169.99
ICER320533406≤ 5μm169.99
ICER320633407≤ 5μm169.99
ICER320733408≤ 5μm169.99
ICER320833409≤ 5μm169.99
ICER3209334010≤ 5μm169.99
ICER3210334011≤ 5μm169.99
ICER3211334012≤ 5μm169.99
ICER3212334013≤ 5μm169.99
ICER3213334014≤ 5μm169.99
ICER3214334015≤ 5μm169.99
ICER3215334016≤ 5μm169.99
ICER3216334017≤ 5μm169.99
ICER3217334018≤ 5μm169.99
ICER3218334019≤ 5μm169.99
ICER3219334020≤ 5μm169.99
ICER400141463≤ 5μm1614.99
ICER400241464≤ 5μm1614.99
ICER400341465≤ 5μm1614.99
ICER400441466≤ 5μm1614.99
ICER400541467≤ 5μm1614.99
ICER400641468≤ 5μm1614.99
ICER400741469≤ 5μm1614.99
ICER4008414610≤ 5μm1614.99
ICER4009414611≤ 5μm1614.99
ICER4010414612≤ 5μm1614.99
ICER4011414613≤ 5μm1614.99
ICER4012414614≤ 5μm1614.99
ICER4013414615≤ 5μm1614.99
ICER4014414616≤ 5μm1614.99
ICER4015414617≤ 5μm1614.99
ICER4016414618≤ 5μm1614.99
ICER4017414619≤ 5μm1614.99
ICER4018414620≤ 5μm1614.99
ICER4019414621≤ 5μm1614.99
ICER4020414622≤ 5μm1614.99
ICER4021414623≤ 5μm1614.99
ICER4022414624≤ 5μm1614.99
ICER4023414625≤ 5μm1614.99
ICER4024414626≤ 5μm1614.99

Quality

100%  quality control, We checked er collet one by one , Er collet >hardness >size>material >run out >lable >packing

We have cnc collet size include er8,er11,er16,er20,er25 ,er32 ,er40 and er50 mill collet. we would also provide er collet sets available .

Another collet available in R8 collet, OZ Collets, straight collets,

milling collets,sk10 collet,sk16 collet, SLC collets, and TG collets

We accept OEM order

Material Application

Japanese JIS standard SUJ2 high carbon chromium bearing steel, corresponding to the national
standard GCr15, SUJ2 high carbon chromium bearing steel, can be fully hardened, the hardness
can reach HRC58-61, has the wear resistance of the bearing, also strengthens the rigidity,
workability Good, and can be directly processed and shaped, using mold times 2-3 times higher
than SKD-61 (HRC52) full hardware. During quenching and tempering, the size does not change much, and fatigue resistance is quite good.

E. Send Inquiry to Us for free

We will, as always, send samples to the consulting clients to ensure high-quality performance and reasonable prices. We focus on CNC Cutting tools & Tool System etc, provide the best tool for clients of different types of operations.



Please no, hesitate to send an inquiry to us at alex@www.buyustools.com

Weight 1.5 lbs
Dimensions 15 × 45 × 65 in
